    WL0F00101000JGDABSA00-FC

    TFT 10.1" 1024x600, RS485 ModBus interface & GPIO Support, 400cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WL0F00101000JGDABSA00-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €156.30
    €140.60
    €132.20

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €156.30 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

        Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

    Below are the features of this 10.1-inch RS485 Smart Display:

    • +12V power supply input, the power consumption is around 6W.
    • Self testing after booting function.
    • RS485 communication interface.
    • Built in flash memory, store the font and Object Dictionary Data.
    • Smart Display scenario is slave device display and action from Master Device instruction.
    • Embedded buzzer controlled by Master Device.
    • Demo set HOST can be used on multiple platforms, such as Computer (with USB2RS485 Dongle), MCU.
    • Design the UI without writing a line of code by winstar GUI builder!



    Winstar developed a Windows app. for Smart Display GUI design. Winstar GUIbuilder software allows customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; customers can also create their ideal GUI. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG). The new version of built-in software is a 3-in-1 APP; we combined three application templates for optional, including industrial, vehicle and medical applications. Please press the preferred application and hold for 3 seconds at the first time power on. Customers can change to another template by using GUIbuilder to change the application.

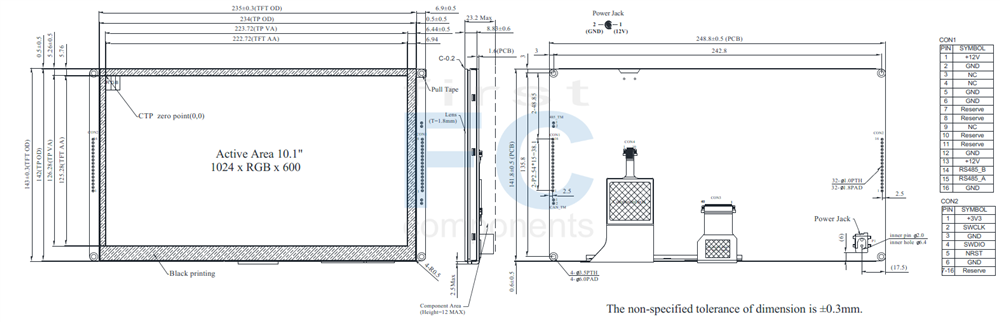

    DRAWING



    SPECIFICATIONS

    General Specifications

    Mechanical Data

    ItemStandard ValueUnit
    LCD panel 235(W) x 143(H) x 23.2(D) mm


    General information

    ItemStandard ValueUnit
    Operating voltage 8V-28V dynamic Vdc
    Communication Interface RS485 differential ± 3.3 Vpp
    MCU STM32F746 N/A
    Flash Memory 16 MB
    LCD display size 10.1 inch
    Dot Matrix 1024 x RGB x 600(TFT) dot
    Module dimension 235(W) x 143(H) x 23.2(D) mm
    Active area 222.72 (H) x 125.28(V) mm
    Pixel pitch 0.2175(W) x 0.2088(H) mm
    LCD type LED, Normally White
    View Direction 85/85/85/85
    Aspect Ratio 16:9
    Touch Panel With CTP
    Surface Glare


    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃


    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage VCC - 11.4 12 12.6 V
    Supply LCM current I(mA) - - 510 - mA


    BOM

    ItemDescription
    LCM WF101-1024600JL#0P8-FC
    PCBA SV10010R100JB00N0101




    Interface Pin Function

    CON1 definition

    PinSymbolFunctionRemark
    1 +12V Power supply12V input Input
    2 GND Power supply GND input Input
    3 NC _ _
    4 NC _ _
    5   GND Power supply GND input GND
    6 GND Power supply GND input GND
    7 Reserve USB_D- Reserve
    8 Reserve USB_D+ Reserve
    9 NC - -
    10 Reserve USART RX interface (Reserve) Reserve
    11 Reserve USART TX interface (Reserve) Reserve
    12 GND Power supply GND input GND
    13 +12V Power supply 12V input Input
    14 RS485_B RS485 D- I/O
    15 RS485_A RS485 D+ I/O
    16 GND Power supply GND input GND


    CON2 definition

    PinSymbolFunctionRemark
    1 VDD3V 3.3V power for JTAG interface Output
    2 JTAG_SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 JTAG_SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND GND Output
    7  Reserve  IO_8 for system Resume from suspend (Reserve) WKup, ADC, Timer, Event,I/O
    8  Reserve  Reset (active low) (Reserve)  I
    9  Reserve  IO_0 (Reserve)  ADC, DAC, Timer, Event,I/O
    10  Reserve IO_1 (Reserve)  ADC, Timer, Event,I/O
    11  Reserve IO_2 (Reserve)  ADC, Timer, Event,I/O
    12  Reserve IO_3 (Reserve)  RST, Timer, Event,I/O
    13  Reserve  IO_4 (Reserve)  RST, Timer, Event,I/O
    14  Reserve  IO_5 (Reserve)  ADC, Timer, Event,I/O
    15  Reserve  IO_6 (Reserve)  RST, Timer, Event,I/O
    16  Reserve  IO_7 (Reserve)  RST, Timer, Event,I/O

    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.


    Winstar's Smart Display Default Selection


    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

    The Smart Display is defined as a slave device, which is controlled by master device via RS485 bus command to render display content on the display screen and return touch event data with protocol objects.

    Example Screen Layout (Industry application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

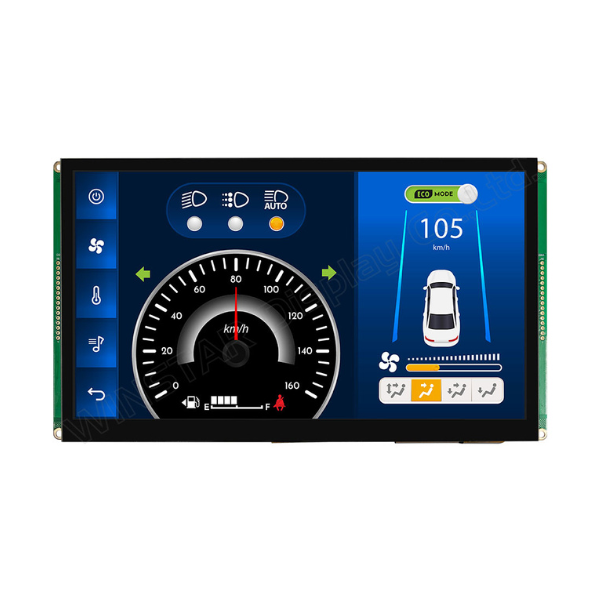

    Example Screen Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


    Example Screen Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.



    Products specifications
    Size 10.1"
    Resolution 1024x600
    Active Area (mm) 222.72x125.28
    Color Full Color
    Power supply 12V
    Display Interface RS485 + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
