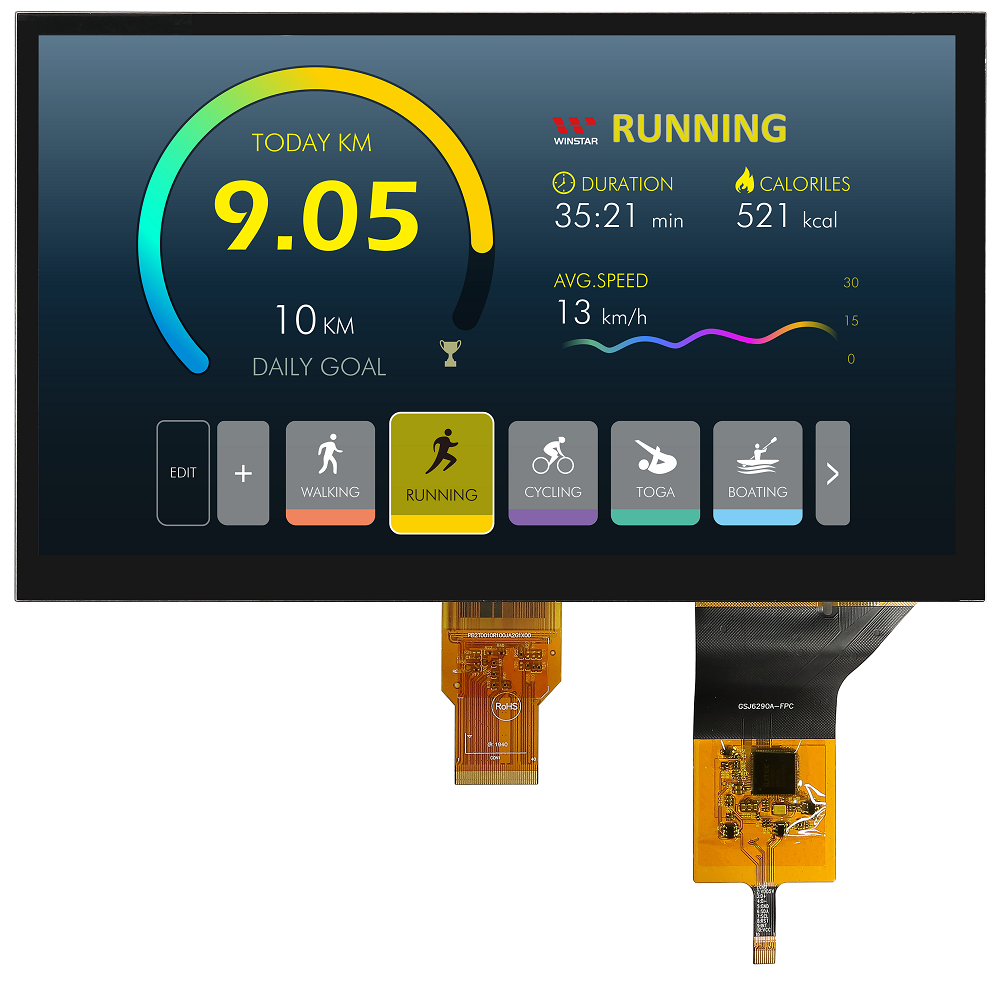

    WF101-1024600JL#0SP8-FC

    TFT 10.1" 1024x600 LCD Panel, Interface LVDS, High Brightness 900cd/m², Wide View Angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC)
    Manufacturer: Winstar
    SKU: WF101-1024600JL#0SP8-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €108.90
    €98.10
    €92.20

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €108.90 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    MOQ

    After sample PO, MP MOQ 500pcs



    DESCRIPTION

    Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 900 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). Capacitive touch panel with USB/I2C interface.

    The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.

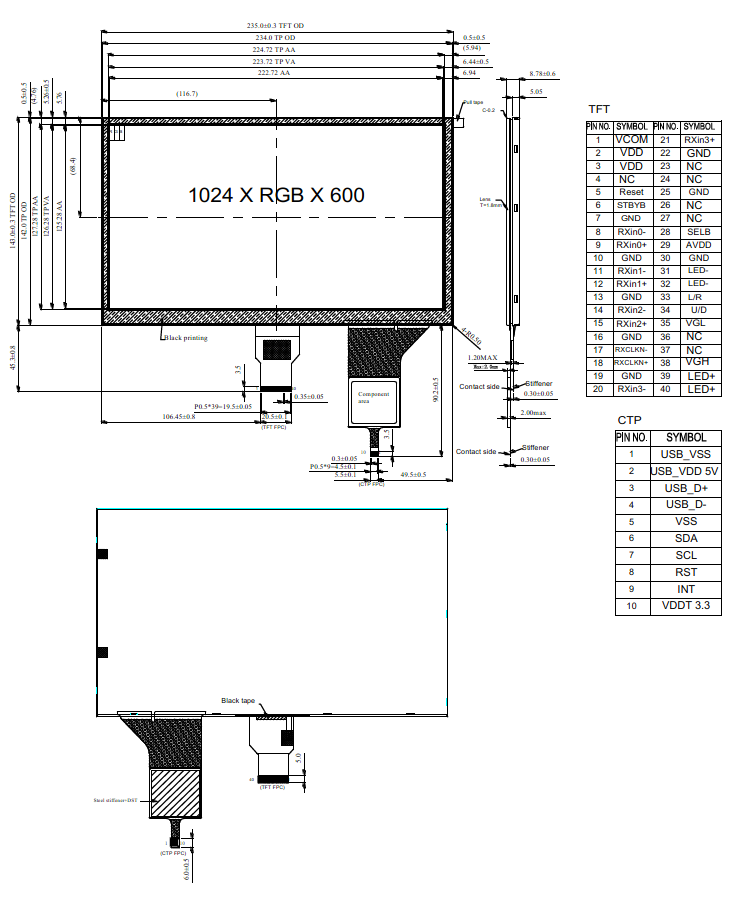

    DRAWING

    Products specifications
    Size 10.1"
    Resolution 1024x600
    Active Area (mm) 222.72x125.28
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2511
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2026/09/14 EOL

    Winstar TFT Series WF18*F/G/H, WF40*C & WF101*J due to Hannstar Panel End of Life



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
