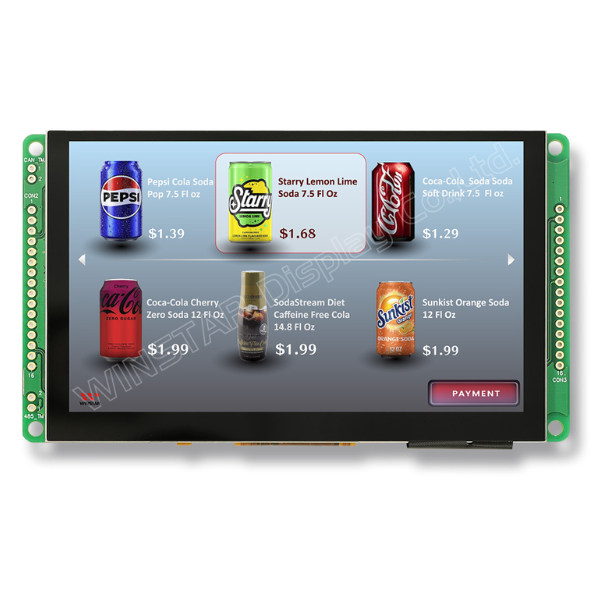

WL0F00050000FGFAASA00-FC

TFT 5" 800x480, UART interface & GPIO, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)

DESCRIPTION

Below are the features of this 5.0 inches Smart Display (UART series):

  1. Input voltage dynamic range 5V to 28V, typical voltage 12V.
  2. Self-testing after booting function.
  3. UART communication interface.
  4. Supports UART protocol, default baud rate at 115200Kbps.
  5. Built in 16M external flash memory to store the font and Object Dictionary Data.
  6. Support capacitive touch panel (CTP).
  7. Build in buzzer and can be controlled by Master Device.
  8. Demo set HOST can be used on multiple platforms, such as Computer (with USB to UART Dongle), MCU, Raspberry Pi (with PiCAN2).
  9. GPIO PIN support.



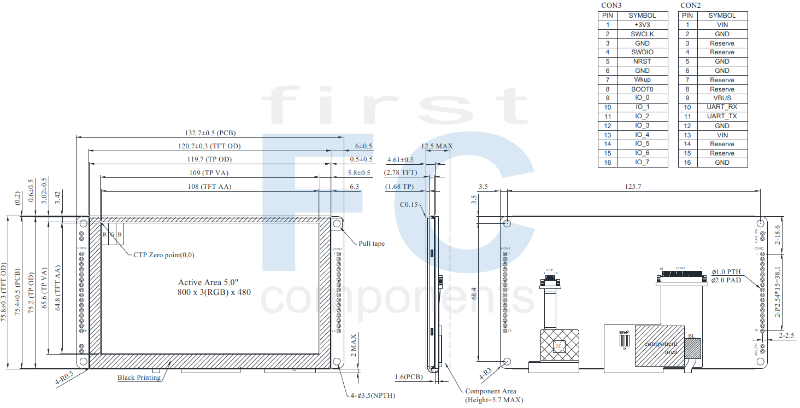

DRAWING



SPECIFICATIONS

General Information

ItemStandard ValueUnit
Operating voltage 8~28V dynamic Vdc
Communication Interface UART --
MCU STM32F750 N/A
Flash ROM 16 MB
LCD display size 5.0 inch
Dot Matrix 800 x 3(RGB) x 480 dot
Module dimension 132.7(W) x 75.8(H) x 12.5(D) mm
Active area 108(W) x 64.8(H) mm
Pixel pitch 0.135(W) x 0.135(H) mm
Brightness Min: 300; Typ: 400 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 15:9
With / Without TP With CTP
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnitRemark
Supply Voltage VCC 5 12 28 V
Supply Current ICC 610 240  110 mA
I/O pin Voltage -- -- -- 3.3 V Note 1
Note1: Exceed 3.3V may cause MCU damage.



BOM

ItemDescription
LCM WF50-­800480FD#0PW3­-FC
PCBA SV10005R000FG00N0102



Interface Pin Function

CON2 definition

PinSymbolFunctionRemark
1 VIN Power supply 5V to 28V input Input
2 GND Power supply GND input Input
3 Reserve - -
4 Reserve - -
5 GND Power supply GND input GND
6 GND Power supply GND input GND
7 Reserve - -
8 Reserve - -
9 VBUS Power supply 5V input Input
10 UART_RX UART RX interface I/O
11 UART_TX UART TX interface I/O
12 GND Power supply GND input Input
13 VIN Power supply 5V to 28V input Input
14 Reserve - -
15 Reserve - -
16 GND Power supply GND input Input


CON3 definition

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 JTAG_SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 JTAG_SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND GND Output
7 WKUP WKup,ADC,Timer,Event,I/O Input
8 BOOT0

Lo: Internal flash boot (Default)
Hi: External flash boot

Input
9 IO0 ADC,DAC,Timer,Event,I/O TTL singal voltage is 3.3V
10 IO1 ADC,Timer,Event,I/O TTL singal voltage is 3.3V
11 IO2 ADC,Timer,Event,I/O TTL singal voltage is 3.3V
12 IO3 RST,Timer,Event,I/O TTL singal voltage is 3.3V
13 IO4 RST,Timer,Event,I/O TTL singal voltage is 3.3V
14 IO5 ADC,Timer,Event,I/O TTL singal voltage is 3.3V
15 IO6 RST,Timer,Event,I/O TTL singal voltage is 3.3V
16 IO7 RST,ADC,Event,I/O TTL singal voltage is 3.3V



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.


Winstar's Smart Display Default Selection


Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

The Smart Display is defined as a slave device, which is controlled by master device via RS485 bus command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

SKU: WL0F00050000FGFAASA00-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€56.50
€50.90
€48.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€56.50 excl tax

DESCRIPTION

Below are the features of this 5.0 inches Smart Display (UART series):

  1. Input voltage dynamic range 5V to 28V, typical voltage 12V.
  2. Self-testing after booting function.
  3. UART communication interface.
  4. Supports UART protocol, default baud rate at 115200Kbps.
  5. Built in 16M external flash memory to store the font and Object Dictionary Data.
  6. Support capacitive touch panel (CTP).
  7. Build in buzzer and can be controlled by Master Device.
  8. Demo set HOST can be used on multiple platforms, such as Computer (with USB to UART Dongle), MCU, Raspberry Pi (with PiCAN2).
  9. GPIO PIN support.



DRAWING



SPECIFICATIONS

General Information

ItemStandard ValueUnit
Operating voltage 8~28V dynamic Vdc
Communication Interface UART --
MCU STM32F750 N/A
Flash ROM 16 MB
LCD display size 5.0 inch
Dot Matrix 800 x 3(RGB) x 480 dot
Module dimension 132.7(W) x 75.8(H) x 12.5(D) mm
Active area 108(W) x 64.8(H) mm
Pixel pitch 0.135(W) x 0.135(H) mm
Brightness Min: 300; Typ: 400 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 15:9
With / Without TP With CTP
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnitRemark
Supply Voltage VCC 5 12 28 V
Supply Current ICC 610 240  110 mA
I/O pin Voltage -- -- -- 3.3 V Note 1
Note1: Exceed 3.3V may cause MCU damage.



BOM

ItemDescription
LCM WF50-­800480FD#0PW3­-FC
PCBA SV10005R000FG00N0102



Interface Pin Function

CON2 definition

PinSymbolFunctionRemark
1 VIN Power supply 5V to 28V input Input
2 GND Power supply GND input Input
3 Reserve - -
4 Reserve - -
5 GND Power supply GND input GND
6 GND Power supply GND input GND
7 Reserve - -
8 Reserve - -
9 VBUS Power supply 5V input Input
10 UART_RX UART RX interface I/O
11 UART_TX UART TX interface I/O
12 GND Power supply GND input Input
13 VIN Power supply 5V to 28V input Input
14 Reserve - -
15 Reserve - -
16 GND Power supply GND input Input


CON3 definition

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 JTAG_SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 JTAG_SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND GND Output
7 WKUP WKup,ADC,Timer,Event,I/O Input
8 BOOT0

Lo: Internal flash boot (Default)
Hi: External flash boot

Input
9 IO0 ADC,DAC,Timer,Event,I/O TTL singal voltage is 3.3V
10 IO1 ADC,Timer,Event,I/O TTL singal voltage is 3.3V
11 IO2 ADC,Timer,Event,I/O TTL singal voltage is 3.3V
12 IO3 RST,Timer,Event,I/O TTL singal voltage is 3.3V
13 IO4 RST,Timer,Event,I/O TTL singal voltage is 3.3V
14 IO5 ADC,Timer,Event,I/O TTL singal voltage is 3.3V
15 IO6 RST,Timer,Event,I/O TTL singal voltage is 3.3V
16 IO7 RST,ADC,Event,I/O TTL singal voltage is 3.3V



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.


Winstar's Smart Display Default Selection


Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

The Smart Display is defined as a slave device, which is controlled by master device via RS485 bus command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Power supply 12V
Display Interface UART + GPIO
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
