WEP12864L#ALP3N00F00-FC

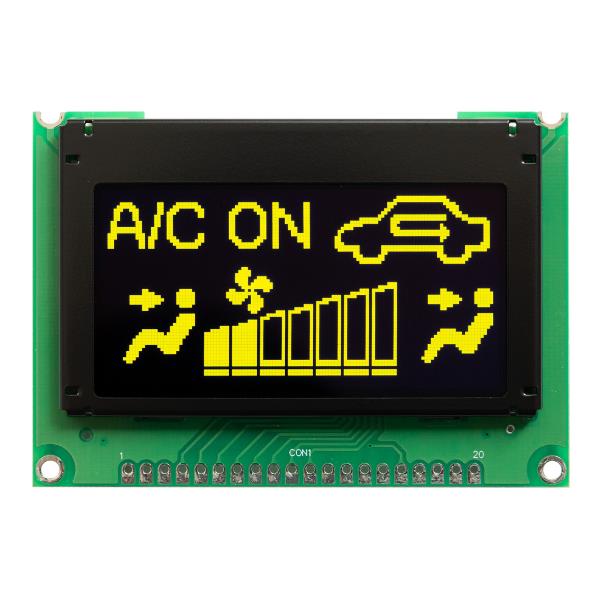

PMOLED 2.42" Graphic 128x64, Yellow color, COG + PCB, 3V, Interface I2C, Frame, Glare (IC SH1106))

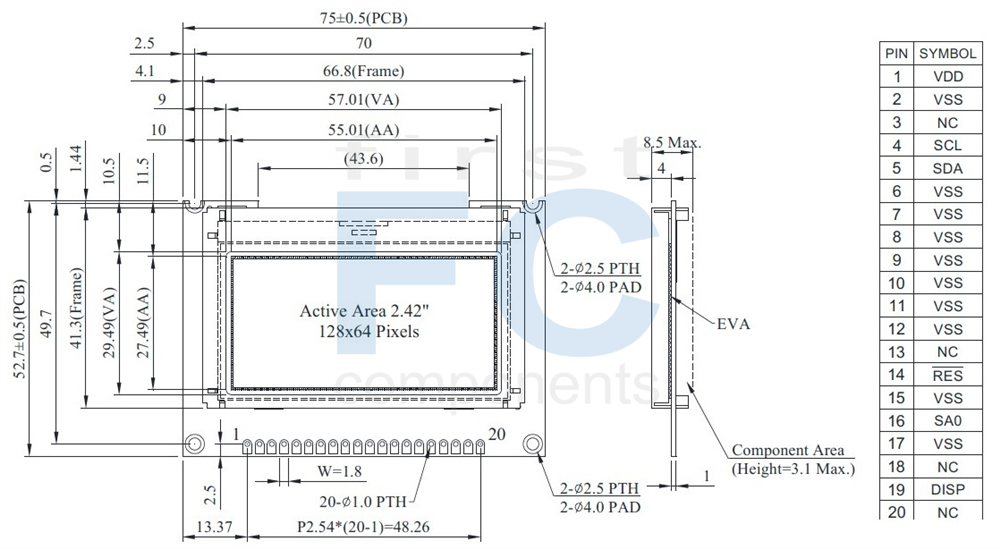

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 64	－
Module dimension	75.0 × 52.7 × 8.5(Max).	mm
Active Area	55.01 × 27.49	mm
Pixel Size	0.40 × 0.40	mm
Pixel Pitch	0.43 × 0.43	mm
Display Mode	Passive Matrix
Display Color	Yellow
Drive Duty	1/64 Duty
IC	SH1106
Interface	I2C
Size	2.42 inch

Interface Pin Function

	Symbol	Function
1	VDD	Power supply input
2	VSS	Ground.
3	NC	No connection
4	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
5	SDA
6~12	VSS	Ground.
13	NC	No connection
14	RES	This is a reset signal input pad. When RES is set to “L” ,the settings are initialized. The reset operation is performed by the RES signal level.
15	VSS	Ground.
16	SA0	In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
17	VSS	Ground.
18	NC	No connection
19	DISP	Display off when it's pulled low; Display on when it's pulled high.
20	NC	Noconnection

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD	-0.3	3.6	V	1, 2
Operating Temperature	TOP	-40	+80	°C	-
Storage Temperature	TSTG	-40	+85	°C	-

Electrical Characteristics

DC Electrical Characteristics

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD	-0.3	3.6	V	1, 2
Operating Temperature	TOP	-40	+80	°C	-
Storage Temperature	TSTG	-40	+85	°C	-

SKU: WEP12864L#ALP3N00F00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€21.30

€17.10

€16.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€21.30 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 64	－
Module dimension	75.0 × 52.7 × 8.5(Max).	mm
Active Area	55.01 × 27.49	mm
Pixel Size	0.40 × 0.40	mm
Pixel Pitch	0.43 × 0.43	mm
Display Mode	Passive Matrix
Display Color	Yellow
Drive Duty	1/64 Duty
IC	SH1106
Interface	I2C
Size	2.42 inch

Interface Pin Function

	Symbol	Function
1	VDD	Power supply input
2	VSS	Ground.
3	NC	No connection
4	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
5	SDA
6~12	VSS	Ground.
13	NC	No connection
14	RES	This is a reset signal input pad. When RES is set to “L” ,the settings are initialized. The reset operation is performed by the RES signal level.
15	VSS	Ground.
16	SA0	In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
17	VSS	Ground.
18	NC	No connection
19	DISP	Display off when it's pulled low; Display on when it's pulled high.
20	NC	Noconnection

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD	-0.3	3.6	V	1, 2
Operating Temperature	TOP	-40	+80	°C	-
Storage Temperature	TSTG	-40	+85	°C	-

Electrical Characteristics

DC Electrical Characteristics

Parameter	Symbol	Min	Max	Unit	Notes
Supply Voltage for Logic	VDD	-0.3	3.6	V	1, 2
Operating Temperature	TOP	-40	+80	°C	-
Storage Temperature	TSTG	-40	+85	°C	-

Products specifications

Brand	Winstar
Size	2.42"
Resolution	128x64
Active Area (mm)	55.01x27.49
Dot Size	0.40x0.40
Polarizer	Glare
Color	Yellow
Power supply	3V
Display Interface	I2C
Display IC	SH1106
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	20
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
