WH2002M-TMI-ETV#

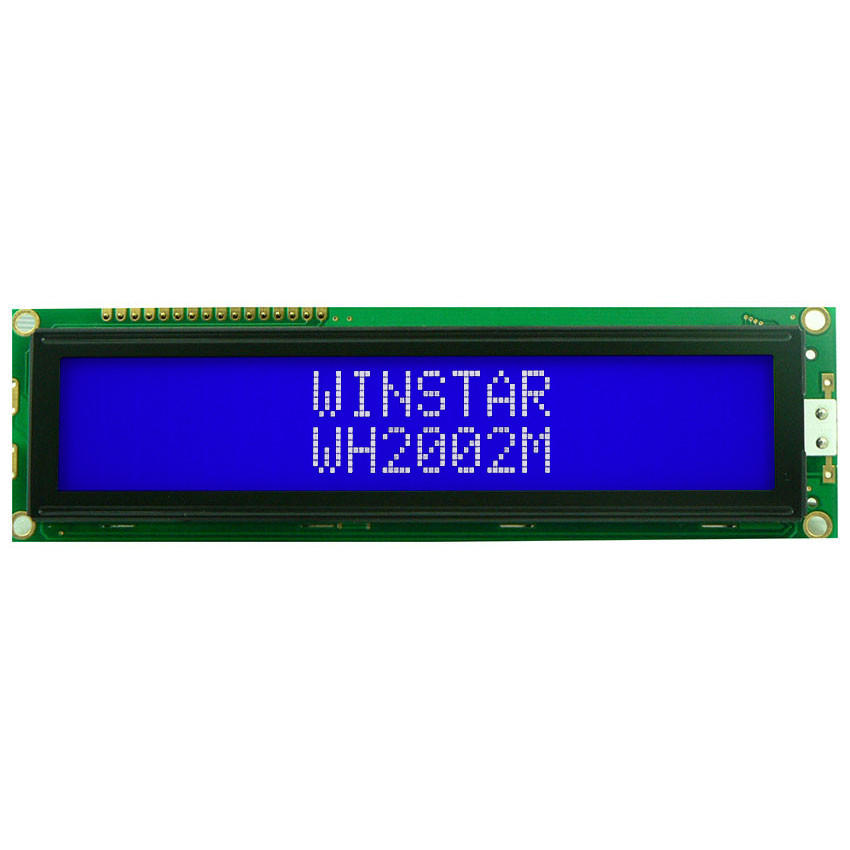

Character LCD 4.7" 20x2, B/L white, STN blue neg, Transmissive, COB, 3.3V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

WH2002M is a 20x2 Character LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. These 20x2 LCD display modules are also available in SPI and I2C interface by using RW1063 controller IC. This type of module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WH2002M is available in several different backlight colors including blue, green, yellow-green, amber, red and white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

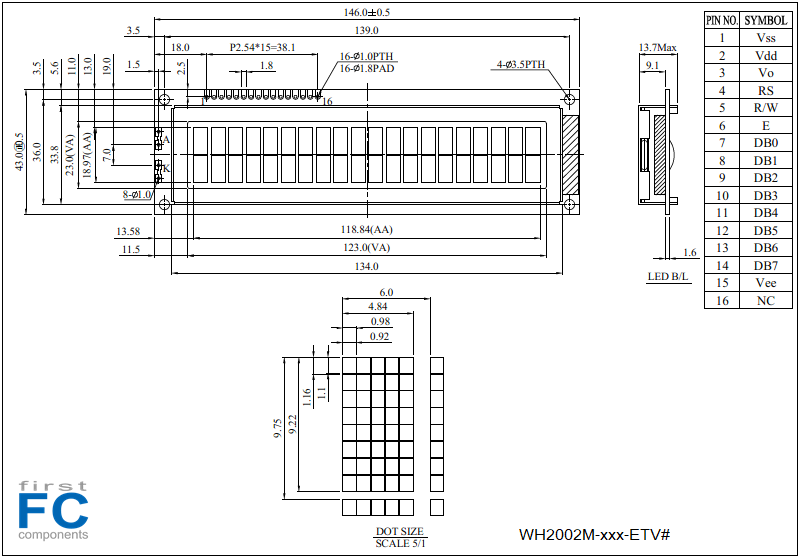

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Standard Value	Unit
Module Dimension	146.0 × 43.0	mm
Viewing Area	123.0 × 23.0	mm
Mounting Hole	139.0 × 36.0	mm
Character Size	4.84 × 9.22	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3.3	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	---	---	20
DD RAM Address	00	01														13
DD RAM Address	40	41														53

SKU: WH2002M-TMI-ETV#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€15.80

€11.60

€11.20

€10.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€15.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Standard Value	Unit
Module Dimension	146.0 × 43.0	mm
Viewing Area	123.0 × 23.0	mm
Mounting Hole	139.0 × 36.0	mm
Character Size	4.84 × 9.22	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3.3	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	---	---	20
DD RAM Address	00	01														13
DD RAM Address	40	41														53

Products specifications

Brand	Winstar
Size	4.7"
Resolution	20x2
Active Area (mm)	118.84x18.97
Dot Size	0.92x1.10
B/L color, LCD type	B/L white, STN blue neg
Power supply	3.3V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred

Download

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	4.7"
Resolution	20x2
Active Area (mm)	118.84x18.97
Dot Size	0.92x1.10
B/L color, LCD type	B/L white, STN blue neg
Power supply	3.3V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
