WH2002D-YYH-ET#

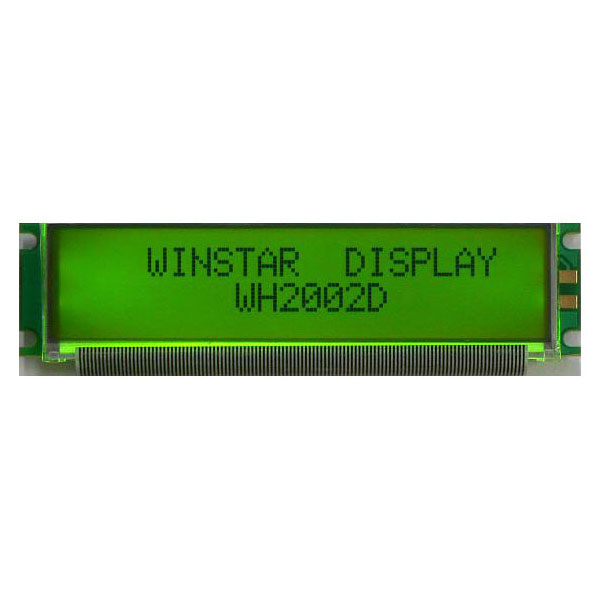

Character LCD 2.7" 20x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION



WH2002D is a Character LCD 20x2 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel, +5Vpower supply.  WH2002D modules are also available in SPI and I2C interface by using RW1063 controller IC.  It is available in several different backlight colors including blue, green, white, yellow-green, amber, red and white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.  This module can operate at temperature from -20℃ to + 70℃; its storage temperature ranges from -30℃ to + 80℃.

There are three interface options for WH2002D series, details as below:
►WH2002D : 6800 interface (ST7066 IC)
►WH2002D1 : SPI interface (RW1063 IC)
►WH2002D2 : I2C interface (RW1063 IC)


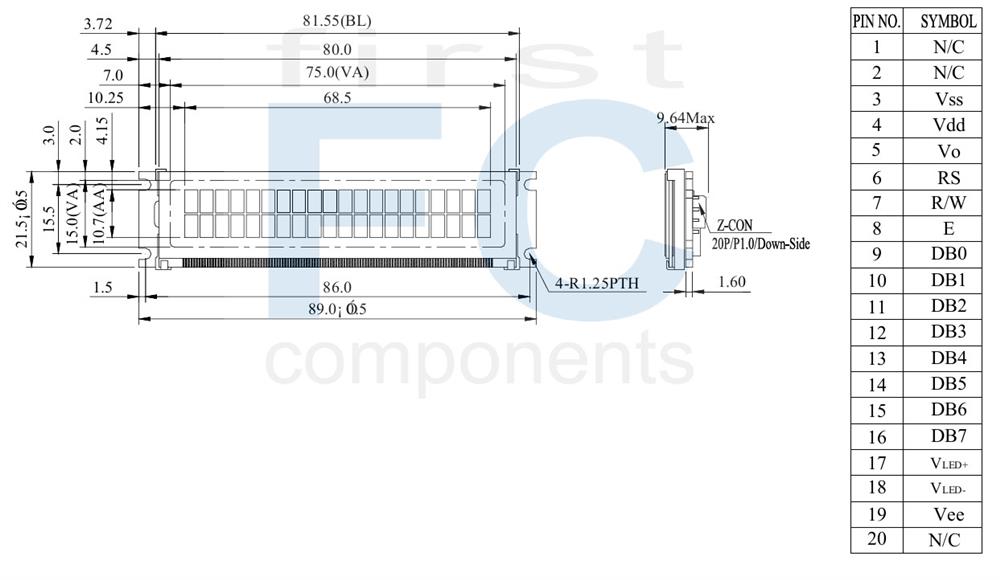

DRAWING





SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1~2 NC No connection
3 VSS Ground
4 VDD Power supply for logic
5 VO Contrast Adjustment
6 RS Data/ Instruction select signal
7 R/W Read/Write select signal
8 E Enable signal
9~16 DB0~DB7 Data bus line
17 VLED- Power supply for B/L +
18 VLED Power supply for B/L -
19~20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.0 × 21.5 mm
Viewing Area 75.0 × 15.0 mm
Mounting Hole 86.0 × 15.5 mm
Character Size 2.95 × 5.15 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 4.20 V



Display Character Address Code

Display Position1234567891011121314151617181920
DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 0F 　 　 　 13
DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 4F 　 　 　 53
SKU: WH2002D-YYH-ET#
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€9.10
€6.70
€6.40
€6.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.10 excl tax

DESCRIPTION



WH2002D is a Character LCD 20x2 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel, +5Vpower supply.  WH2002D modules are also available in SPI and I2C interface by using RW1063 controller IC.  It is available in several different backlight colors including blue, green, white, yellow-green, amber, red and white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.  This module can operate at temperature from -20℃ to + 70℃; its storage temperature ranges from -30℃ to + 80℃.

There are three interface options for WH2002D series, details as below:
►WH2002D : 6800 interface (ST7066 IC)
►WH2002D1 : SPI interface (RW1063 IC)
►WH2002D2 : I2C interface (RW1063 IC)


DRAWING





SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1~2 NC No connection
3 VSS Ground
4 VDD Power supply for logic
5 VO Contrast Adjustment
6 RS Data/ Instruction select signal
7 R/W Read/Write select signal
8 E Enable signal
9~16 DB0~DB7 Data bus line
17 VLED- Power supply for B/L +
18 VLED Power supply for B/L -
19~20 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.0 × 21.5 mm
Viewing Area 75.0 × 15.0 mm
Mounting Hole 86.0 × 15.5 mm
Character Size 2.95 × 5.15 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 4.20 V



Display Character Address Code

Display Position1234567891011121314151617181920
DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 0F 　 　 　 13
DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 4F 　 　 　 53
Products specifications
Brand Winstar
Size 2.7"
Resolution 20x2
Active Area (mm) 68.50x10.70
Dot Size 0.55x0.60
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.7"
Resolution 20x2
Active Area (mm) 68.50x10.70
Dot Size 0.55x0.60
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
