WH1602BU-TFH-JT#

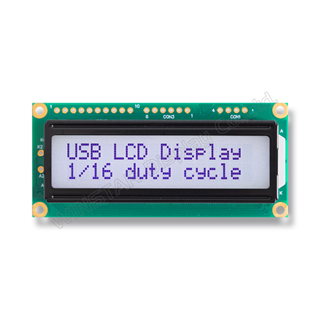

Character LCD 2.3" 16x2, B/L white, FSTN white pos, Transflective, COB, 5V, Interface USB, Font Eng/Jap, 6 O'clock

DESCRIPTION

The WH1602BU-TFH-JT# is a 16x2 character USB LCD display module with LED backlighting, featuring the ST7066 controller IC. It integrates a USB-to-UART bridge IC, supporting USB 2.0 Full Speed (12Mbps) CDC (Communication Device Class) protocol, enabling easy LCM control and power delivery.

This USB LCD display module is compatible with Windows 7/8/10/11, ensuring easy integration with a variety of operating systems. It shares the same mechanical dimensions as the WH1602BR (UART interface) and WH1602B (6800 interface) models, with the key difference being the inclusion of a USB receptacle for direct USB connectivity.

Operating with a voltage range of 4.5V to 5.5V (typical 5V), the WH1602BU supports an operating temperature range of -20°C to +70°C and storage temperatures from -30°C to +80°C, making it suitable for a wide range of industrial and commercial applications.

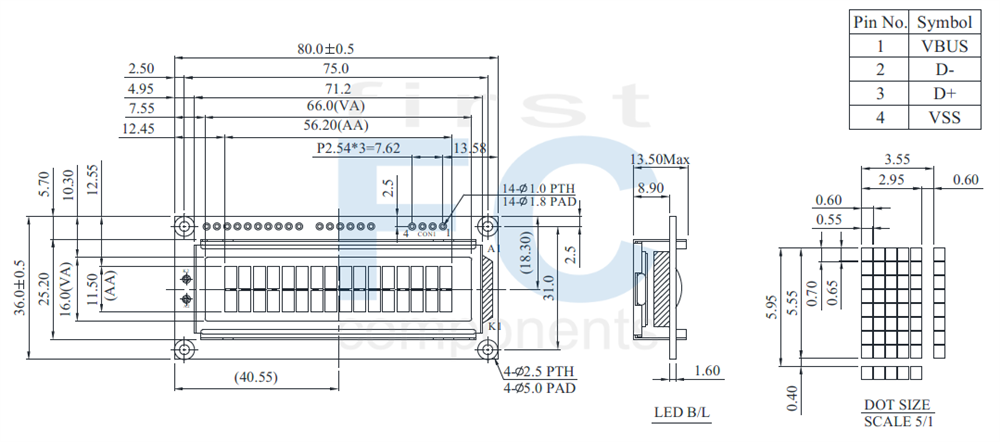

DRAWING

SPECIFICATIONS

General Specification

Item	Dimension	Unit
Number of Characters	16 Characters × 2 Lines	－
Module dimension	80.0 × 36.0 × 13.5 (MAX)	mm
View area	66.0 × 16.0	mm
Active area	56.20 × 11.5	mm
Dot size	0.55 × 0.65	mm
Dot pitch	0.60 × 0.70	mm
Character size	2.95 × 5.55	mm
Character pitch	3.55 × 5.95	mm
Duty	1/16
Backlight Type	LED
Controller IC	ST7066
Interface	USB

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Supply Voltage	－	VSS-0.3	－	6.0	V
EEPROM Cell Endurance	－	100K	－	－	E/W
Input Voltage	－	VSS-0.3	－	VDD+0.3	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-VO	Ta=25℃	3.6	3.7	3.8	V
Input High Voltage	VIH	－	3.5	－	5.0	V
Input Low Voltage	VIL	－	0	－	1.5	V
Supply Current (Module + Backlight)	IDD	VDD=5.0V	－	－	67.5	mA

Interface Pin Function

CON1

Pin No.	Symbol	Description
1	VBUS(VDD)	Supply Voltage
2	D-	Data -
3	D+	Data +
4	VSS	Ground

SKU: WH1602BU-TFH-JT#

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€9.30

€6.80

€6.60

€6.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

General Specification

Item	Dimension	Unit
Number of Characters	16 Characters × 2 Lines	－
Module dimension	80.0 × 36.0 × 13.5 (MAX)	mm
View area	66.0 × 16.0	mm
Active area	56.20 × 11.5	mm
Dot size	0.55 × 0.65	mm
Dot pitch	0.60 × 0.70	mm
Character size	2.95 × 5.55	mm
Character pitch	3.55 × 5.95	mm
Duty	1/16
Backlight Type	LED
Controller IC	ST7066
Interface	USB

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Supply Voltage	－	VSS-0.3	－	6.0	V
EEPROM Cell Endurance	－	100K	－	－	E/W
Input Voltage	－	VSS-0.3	－	VDD+0.3	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-VO	Ta=25℃	3.6	3.7	3.8	V
Input High Voltage	VIH	－	3.5	－	5.0	V
Input Low Voltage	VIL	－	0	－	1.5	V
Supply Current (Module + Backlight)	IDD	VDD=5.0V	－	－	67.5	mA

Interface Pin Function

CON1

Pin No.	Symbol	Description
1	VBUS(VDD)	Supply Voltage
2	D-	Data -
3	D+	Data +
4	VSS	Ground

Products specifications

Brand	Winstar
Size	2.3"
Resolution	16x2
Active Area (mm)	56.20x11.50
Dot Size	0.55x0.65
B/L color, LCD type	B/L white, FSTN white pos
Power supply	5V
Display Interface	USB
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	4
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
