WEO9616L#A00-FC

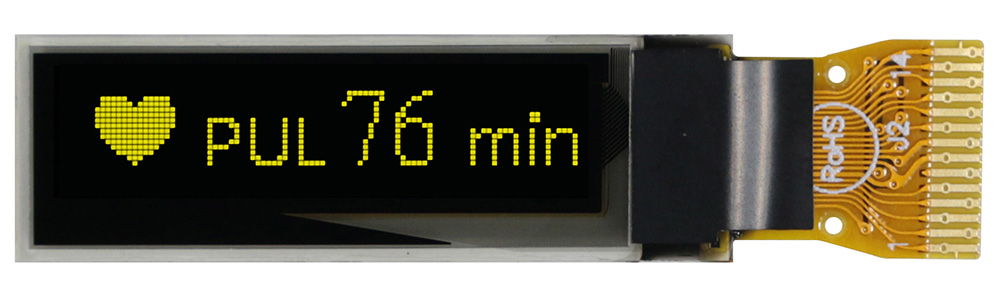

PMOLED 0.84" Graphic 96x16, Yellow color, COG, 3V, Interface I2C, Glare (FPC per Soldering)

DESCRIPTION

0.84 inch Graphic passive matrix OLED display module which is made of 96x16 dots. This 0.84" has the module dimension of 29.1× 9.2 × 1.45 mm and Active Area size 21.104×3.504 mm. It is built in with SSD1306 IC, it supports I2C interface, 3V power supply. COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.84 inch small sized OLED display is suitable for wearable device, E-cigarette, MP3, personal care appliance, portable device, voice recorder pen, health device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +80℃.

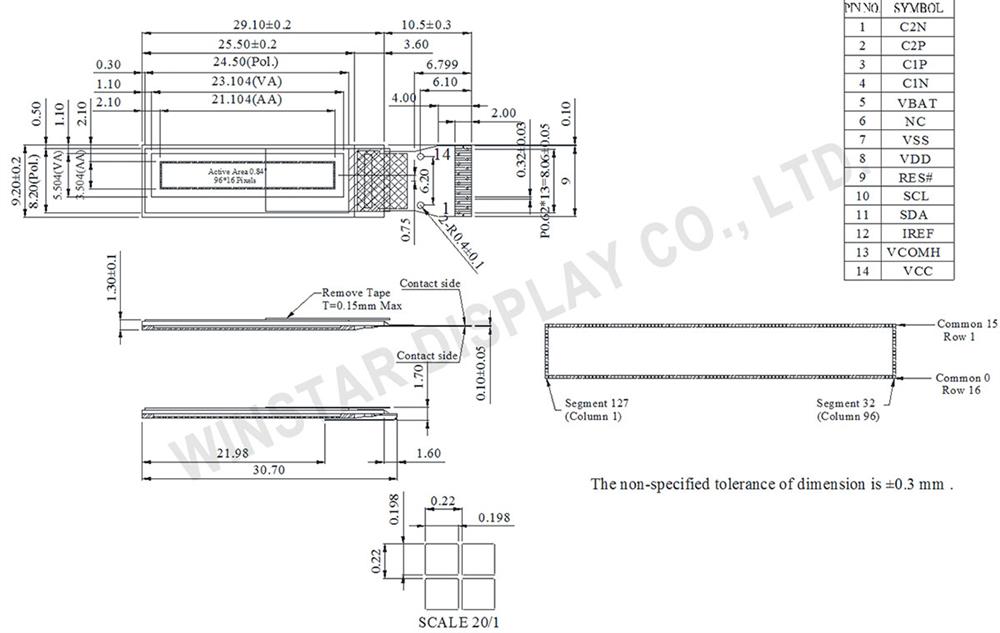

DRAWING

96x16 OLED Display, OLED 96x16, 0.84 OLED Display- WEO009616A - Winstar

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	C2N	Charge pump capacitor
2	C2P	Charge pump capacitor
3	C1P	Charge pump capacitor
4	C1N	Charge pump capacitor
5	VBAT	Charge pump capacitor
6	NC	No Connection
7	VSS	Ground Pin
8	VDD	Voltage for logic
9	RES#	Reset Signal Pin
10	SCL	Serial clock
11	SDA	Serial data
12	IREF	SEG Current Refer Pin
13	VCOMH	COM deselected level
14	VCC	Panel driving voltage

Mechanical Data

Item	Dimension	Unit
Module dimension	29.10 × 9.20	mm
Viewing area	23.104 × 5.504	mm
Active area	21.104 × 3.504	mm
Dot pitch	0.22 × 0.22	mm
Dot size	0.198 × 0.198	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	2.8	3.0	3.3	V

SKU: WEO9616L#A00-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€3.50

€2.60

€2.50

€2.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€3.50 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	C2N	Charge pump capacitor
2	C2P	Charge pump capacitor
3	C1P	Charge pump capacitor
4	C1N	Charge pump capacitor
5	VBAT	Charge pump capacitor
6	NC	No Connection
7	VSS	Ground Pin
8	VDD	Voltage for logic
9	RES#	Reset Signal Pin
10	SCL	Serial clock
11	SDA	Serial data
12	IREF	SEG Current Refer Pin
13	VCOMH	COM deselected level
14	VCC	Panel driving voltage

Mechanical Data

Item	Dimension	Unit
Module dimension	29.10 × 9.20	mm
Viewing area	23.104 × 5.504	mm
Active area	21.104 × 3.504	mm
Dot pitch	0.22 × 0.22	mm
Dot size	0.198 × 0.198	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	2.8	3.0	3.3	V

Products specifications

Brand	Winstar
Size	0.84"
Resolution	96x16
Active Area (mm)	21.10x3.50
Dot Size	0.19x0.19
Polarizer	Glare
Color	Yellow
Power supply	3V
Display Interface	I2C
Display IC	SSD1306BZ
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for Soldering
Pin Nr.	14
Pin Pitch	0.62mm
Preferred - Not Preferred	Not Preferred
