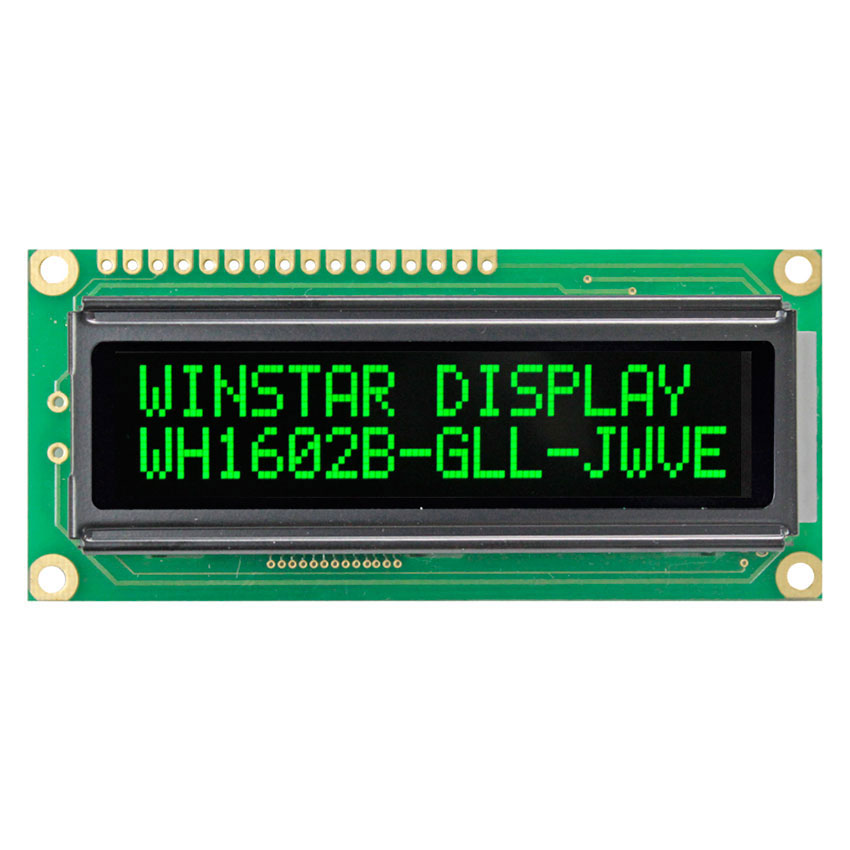

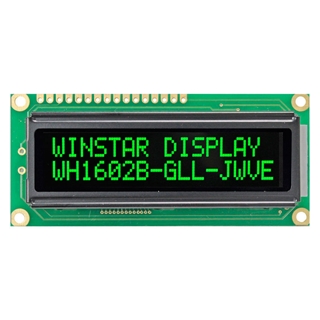

WH1602B-GLL-JWVE#

Character LCD 2.3" 16x2, B/L green, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

DESCRIPTION



WH1602B-SLL is a 16 character by 2 line display, White LED, ST7066 controller, 5V power supply and optional 6800 / SPI / I2C interface. The demands of high contrast ratio and wide view angle for displays are getting more and more popular. There is one kind of display can meet the demand with better performance than DFSTN but just pay a little extra reasonable cost, that is VATN display.

There are four interface options for VATN WH1602B series, details as below:

  • VATN WH1602B: Parallel interface (RW1063 IC)
  • VATN WH1602B1: SPI interface (RW1063 IC)
  • VATN WH1602B2: Parallel interface (RW1063 IC)
  • VATN WH1602B3: I2C interface (RW1063 IC)



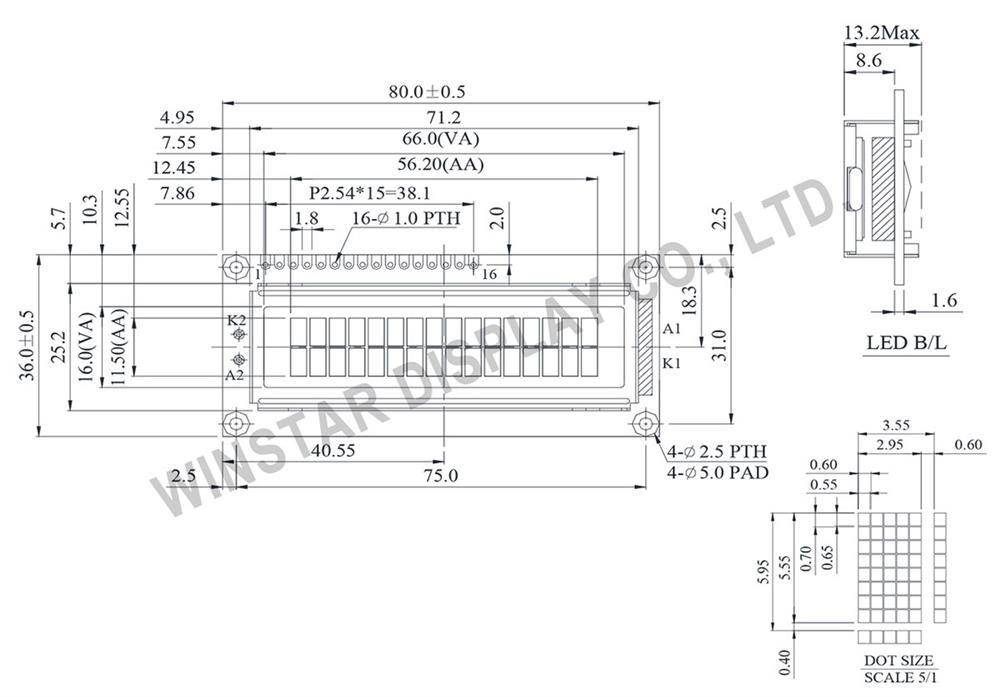

DRAWING

SLL 16x2 VATN White LCD Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO --- V



Display Character Address Code

Display position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 07 　 　 　 　 　 　 　 0F
DD RAM Address 40 41 　 　 　 　 　 47 　 　 　 　 　 　 　 4F
SKU: WH1602B-GLL-JWVE#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€10.90
€8.00
€7.70
€7.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€10.90 excl tax

DESCRIPTION



WH1602B-SLL is a 16 character by 2 line display, White LED, ST7066 controller, 5V power supply and optional 6800 / SPI / I2C interface. The demands of high contrast ratio and wide view angle for displays are getting more and more popular. There is one kind of display can meet the demand with better performance than DFSTN but just pay a little extra reasonable cost, that is VATN display.

There are four interface options for VATN WH1602B series, details as below:

  • VATN WH1602B: Parallel interface (RW1063 IC)
  • VATN WH1602B1: SPI interface (RW1063 IC)
  • VATN WH1602B2: Parallel interface (RW1063 IC)
  • VATN WH1602B3: I2C interface (RW1063 IC)



DRAWING

SLL 16x2 VATN White LCD Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 VEE Negative Voltage Output
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Character Size 2.95 × 5.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO --- V



Display Character Address Code

Display position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 07 　 　 　 　 　 　 　 0F
DD RAM Address 40 41 　 　 　 　 　 47 　 　 　 　 　 　 　 4F
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L green, VATN
Power supply 5V
Display Interface 6800
Display IC RW1063
Constructive Structure COB
View Angle 12H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L green, VATN
Power supply 5V
Display Interface 6800
Display IC RW1063
Constructive Structure COB
View Angle 12H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
