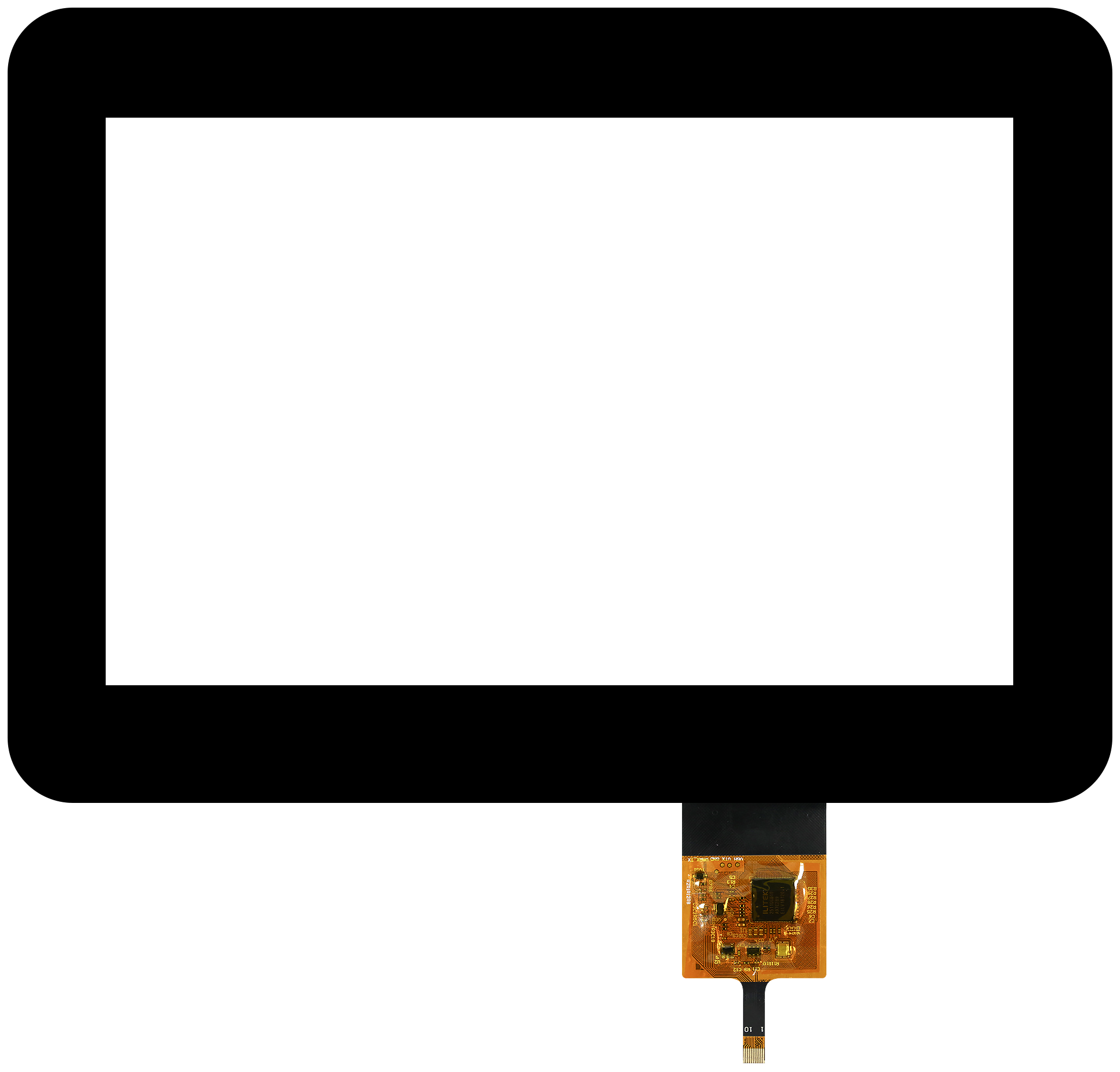

Capacitive (GG) Touch panel 10.1", O.D. 274.50x198.00mm, USB-I2C interface (ILI2511 IC), Glass-Glass structure, Black free board (suitable for WF101G/F families)

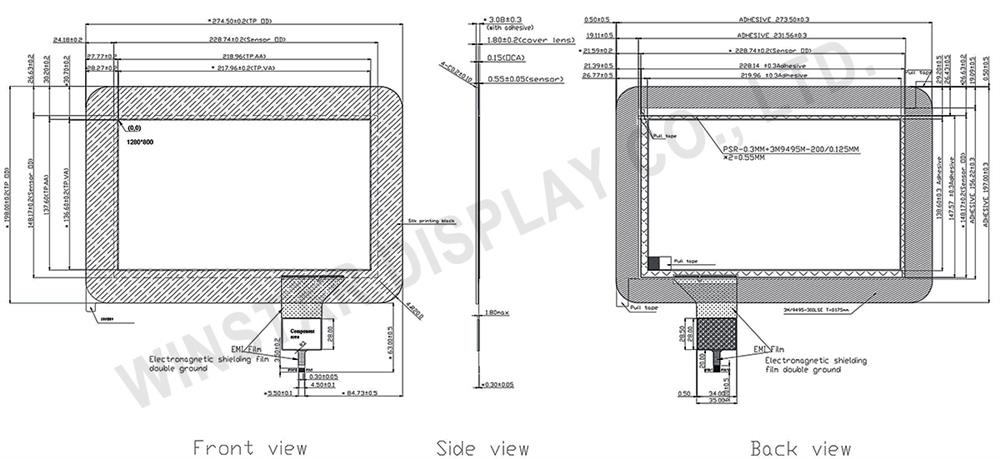

DRAWING

TST0010R1F4111XXXX00 Spec

SPECIFICATIONS

General Specification

NO.	Item	Specifications	Unit
1	Touch Panel Size	10.1(Diagonal)	inch
2	Structure	G+G
3	View Area	217.96(H)x136.60(V)	mm
4	Outline Dimension	274.50(H)x198.00(V)x2.50(D)	mm

Feature

NO.	Item	Specifications
1	Type	Projected Capacitive
2	Input Mode	Finger
3	Connector	COF

Environmental Characteristics

NO.	Item	Specifications
NO.	Item	Temperature	Humidity (Non-Condensing)
1	Operation	-20~70℃	45%-90%RH
2	Storage	-30~80℃	5%-95%RH

Optical Characteristics

NO.	Item	Specifications
1	Transparency	(Min)85%
2	Haze	>3%

IC Specification

NO.	Item	Specifications
1	Driver IC	ILI2511
2	Detect Points	10 touch
3	Interface	I2C+USB
4	Power Supply	5.0V

Pin Assignment

Pin No.	Symbol	I/O	Description
1	USB/GND	—	System ground
2	USB/VDD5V	—	Power supply
3	D+	I/O	Data +
4	D-	\I/O	Data -
5	GND	—	System ground
6	SDA	I/O	I2C clock signal
7	SCL	I/O	I2C clock signal
8	RST	—	External reset signal, active low
9	INT	—	Interrupt signal, active low, asserted to request Host start a new transcation
10	VDD	—	Power supply

SKU: TST0010R1F4111XXXX00

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Touch-Panel Connector
Added Board

Price Breaks

Quantity

1+

5+

10+

Price

€73.00

€65.70

€54.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€73.00 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

TST0010R1F4111XXXX00 Spec

SPECIFICATIONS

General Specification

NO.	Item	Specifications	Unit
1	Touch Panel Size	10.1(Diagonal)	inch
2	Structure	G+G
3	View Area	217.96(H)x136.60(V)	mm
4	Outline Dimension	274.50(H)x198.00(V)x2.50(D)	mm

Feature

NO.	Item	Specifications
1	Type	Projected Capacitive
2	Input Mode	Finger
3	Connector	COF

Environmental Characteristics

NO.	Item	Specifications
NO.	Item	Temperature	Humidity (Non-Condensing)
1	Operation	-20~70℃	45%-90%RH
2	Storage	-30~80℃	5%-95%RH

Optical Characteristics

NO.	Item	Specifications
1	Transparency	(Min)85%
2	Haze	>3%

IC Specification

NO.	Item	Specifications
1	Driver IC	ILI2511
2	Detect Points	10 touch
3	Interface	I2C+USB
4	Power Supply	5.0V

Pin Assignment

Pin No.	Symbol	I/O	Description
1	USB/GND	—	System ground
2	USB/VDD5V	—	Power supply
3	D+	I/O	Data +
4	D-	\I/O	Data -
5	GND	—	System ground
6	SDA	I/O	I2C clock signal
7	SCL	I/O	I2C clock signal
8	RST	—	External reset signal, active low
9	INT	—	Interrupt signal, active low, asserted to request Host start a new transcation
10	VDD	—	Power supply

Products specifications

Brand	Winstar
Size	10.1"
Active Area (mm)	218.96x136.60
Display Interface	USB/I2C
Constructive Structure	GG + Frame
Display Connection	FPC for ZIF Connector
Pin Nr.	10
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2511
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	10.1"
Active Area (mm)	218.96x136.60
Display Interface	USB/I2C
Constructive Structure	GG + Frame
Display Connection	FPC for ZIF Connector
Pin Nr.	10
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2511
Preferred - Not Preferred	Preferred
