WH1202A-TMI-ET#
WH1202A-TMI-ET#

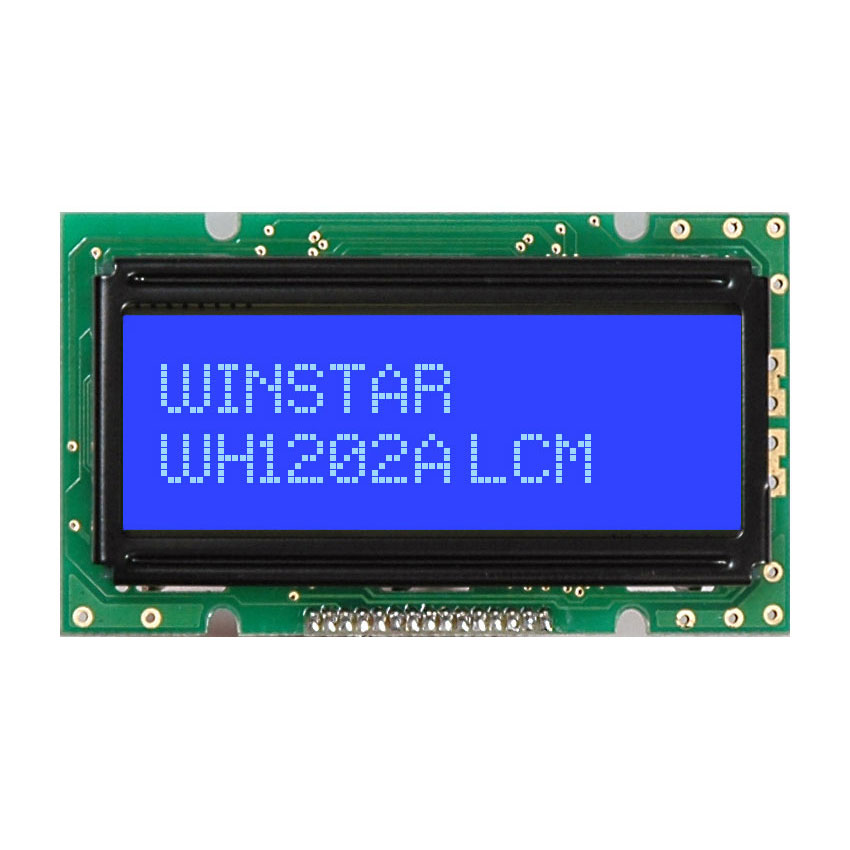

Character LCD 1.6" 12x2, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock
DESCRIPTION
WH1202A model is a 12 character by 2 line small LCD display which having the outline dimension of 55.7 x 32 mm, diagonal size 1.6 inch. The WH1202A display LCD 12x 2 modules include positive mode with gray or yellow/green LCD and negative mode with blue LCD color options. These miniature LCD displays have different interfaces available, built in with ST7066 controller which default 6800 4/8-bit parallel interface, or optional SPI and I2C by using RW1063 IC.
There are three interface options for WH1202A series, details as below:
►WH1202A : 6800 interface (ST7066 IC)
►WH1202A1: SPI interface (RW1063 IC)
►WH1202A2: I2C interface (RW1063 IC)

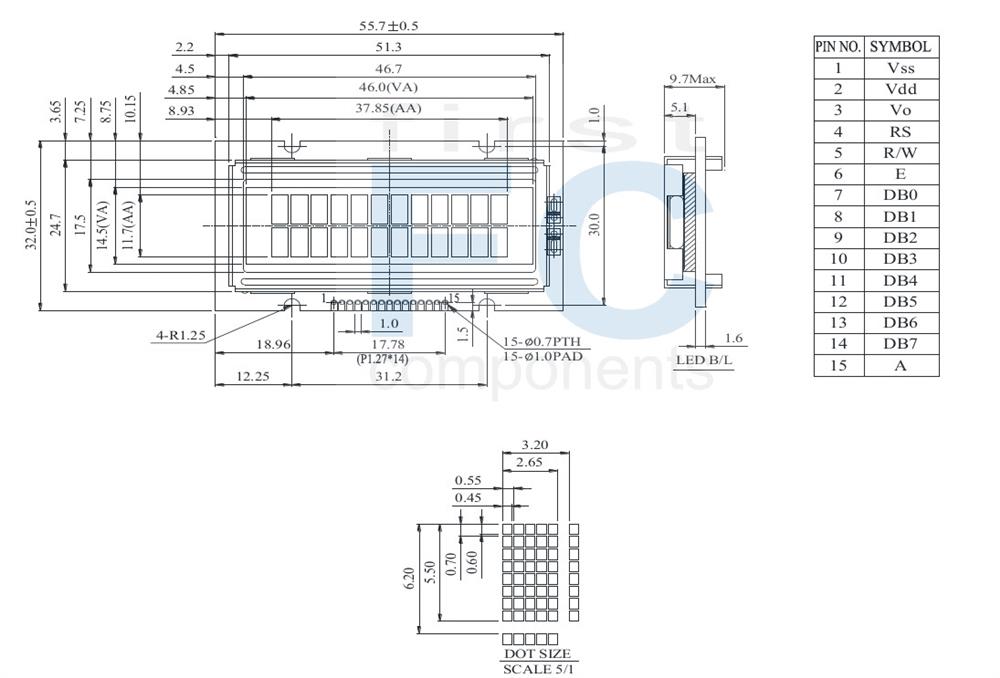

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
VO
Operating voltage for LCD
4
RS
H: DATA, L: Instruction code
5
R/W
H: Read L: Write
6
E
Chip enable signal
7~14
DB0~DB7
Data bus line
15
A
Power supply for B/L +
Mechanical Data
Item
Standard Value
Unit
Module Dimension
55.7 × 32.0
mm
Viewing Area
46.0 × 14.5
mm
Mounting Hole
31.2 × 30.0
mm
Character Size
2.65 × 5.50
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
4.20
V
Display Character Address Code
Display Position
1
2
3
4
5
6
7
8
DD RAM Address
00
01
0A
0B
DD RAM Address
40
41
4A
4B
SKU:
WH1202A-TMI-ET#
Brand:
Winstar
Available:
Yes
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
GPEA107-1502A008C1BA-Q5 [+€0.68]
CSEA113-1502A001J1BC-Q5 [+€1.10]
GPEB101-1502A033C1BA-Q5 [+€1.00]
CSEA102-1502A001C1AC-Q5 [+€0.80]
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.40
€4.70
€4.60
€4.40
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€6.40 excl tax
Overview
Specifications
Download
Contact Us
DESCRIPTION
WH1202A model is a 12 character by 2 line small LCD display which having the outline dimension of 55.7 x 32 mm, diagonal size 1.6 inch. The WH1202A display LCD 12x 2 modules include positive mode with gray or yellow/green LCD and negative mode with blue LCD color options. These miniature LCD displays have different interfaces available, built in with ST7066 controller which default 6800 4/8-bit parallel interface, or optional SPI and I2C by using RW1063 IC.
There are three interface options for WH1202A series, details as below:
►WH1202A : 6800 interface (ST7066 IC)
►WH1202A1: SPI interface (RW1063 IC)
►WH1202A2: I2C interface (RW1063 IC)
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
V
SS
Ground
2
V
DD
Power supply for logic
3
VO
Operating voltage for LCD
4
RS
H: DATA, L: Instruction code
5
R/W
H: Read L: Write
6
E
Chip enable signal
7~14
DB0~DB7
Data bus line
15
A
Power supply for B/L +
Mechanical Data
Item
Standard Value
Unit
Module Dimension
55.7 × 32.0
mm
Viewing Area
46.0 × 14.5
mm
Mounting Hole
31.2 × 30.0
mm
Character Size
2.65 × 5.50
mm
Electrical Characteristics
Item
Symbol
Standard Value
typ.
Unit
Input Voltage
VDD
3/5
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO
4.20
V
Display Character Address Code
Display Position
1
2
3
4
5
6
7
8
DD RAM Address
00
01
0A
0B
DD RAM Address
40
41
4A
4B
Products specifications
Brand
Winstar
Size
1.6"
Resolution
12x2
Active Area (mm)
37.85x11.70
Dot Size
0.45x0.60
B/L color, LCD type
B/L white, STN blue neg
Power supply
5V
Display Interface
6800
Display IC
ST7066
Constructive Structure
COB
View Angle
6H
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
15
Pin Pitch
1.27mm
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
1.6"
Resolution
12x2
Active Area (mm)
37.85x11.70
Dot Size
0.45x0.60
B/L color, LCD type
B/L white, STN blue neg
Power supply
5V
Display Interface
6800
Display IC
ST7066
Constructive Structure
COB
View Angle
6H
O. Temperature (°C)
-20~70
Display Connection
Soldering PAD
Pin Nr.
15
Pin Pitch
1.27mm
Preferred - Not Preferred
Preferred
