GPEA107-1502A008C1BA-Q5

Pin Header - Straight Contact, Single Row, 15 Pins, Pitch 1.27mm, Gold Plated (Mating Contact Length: 6mm)

Specifications

Current Rating： 1Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20 mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Brass - Gold Flashed
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP

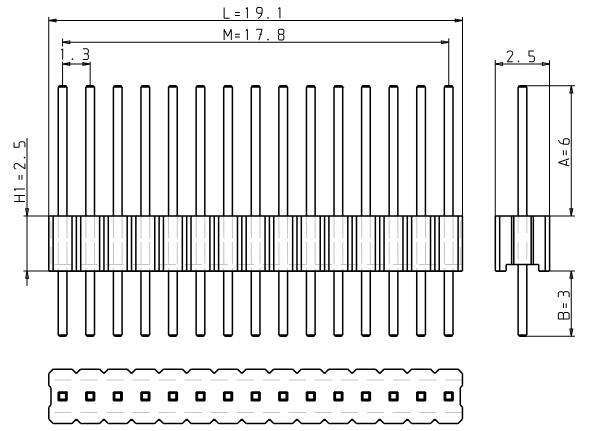

Dimensions



SKU: GPEA107-1502A008C1BA-Q5
Brand: Greenconn
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
500+
Price
€0.78
€0.71
€0.66
€0.65
€0.64
€0.63

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€0.78 excl tax

Specifications

Current Rating： 1Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 300VAC
Contact Resistance： 20 mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Brass - Gold Flashed
Insulation Material：High Temperature Thermoplastic, UL 94V-0 LCP



Dimensions



Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 1.27mm
Contact Direction DIP
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 1.27mm
Contact Direction DIP
Related products
Picture of CSEA113-1502A001J1BC-Q5

CSEA113-1502A001J1BC-Q5

Female Header - Straight Contact, Single Row, 15 Pins, Pitch 1.27mm, Gold Plated (Mating Contact Length: 3,50-6,40mm)
From €0.85 excl tax
