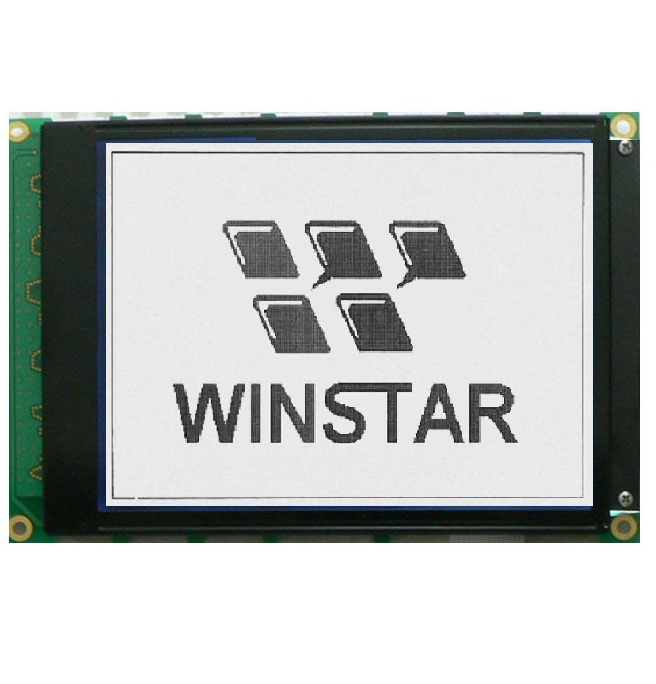

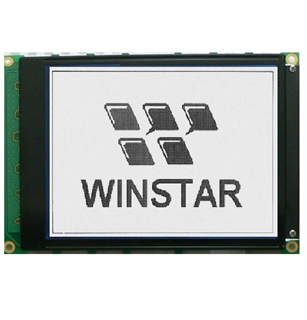

WG320240A-TFH-VZ#

Graphic LCD 5.7" 320x240, B/L white, FSTN white pos, Transflective, COB, 3~5V, Interface No controller, 6 O'clock, VNEG

DESCRIPTION



WG320240A is a mono LCD display module with 320x240 pixels. This mono LCD display WG320x240 module is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch. This WG320240A model is without controller on module.  This LCD display 320240 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

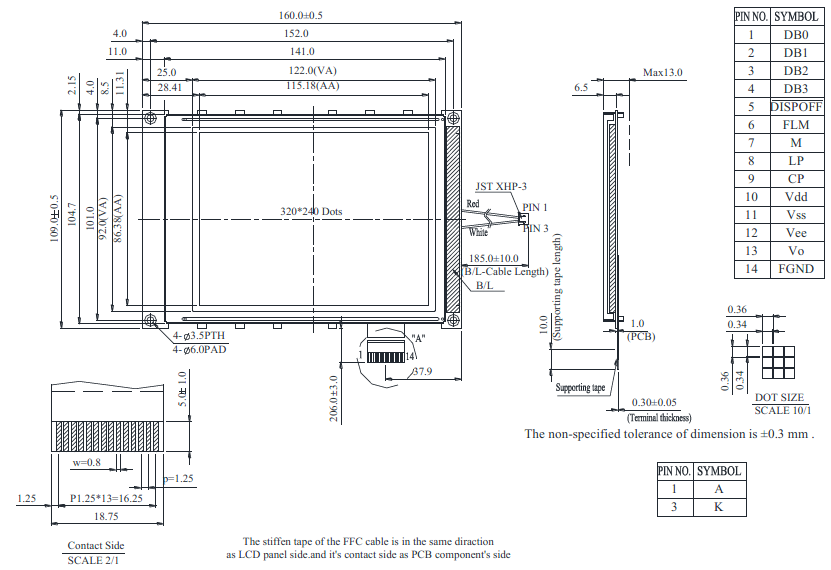

DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1~4 DB0~DB3 Data bus line
5 DISPOFF Display off H:ON L:OFF
6 FLM Scan start-up signal
7 M Frame reverse signal(alternate signal)
8 LP Data latch pulse
9 CP Data shift pulse
10 VDD Power supply for logic
11 VSS Ground
12 VEE Negative Voltage Output
13 VO Contrast Adjustment
14 FGND Frame ground



Mechanical Data

ItemStandard ValueUnit
Module Dimension 160.0 × 109.0 mm
Viewing Area 122.0 × 92.0 mm
Mounting Hole 152.0 × 101.0 mm
Dot Pitch 0.36 × 0.36 mm
Dot Size 0.34 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 23.6 V
SKU: WG320240A-TFH-VZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€72.40
€65.20
€61.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€72.40 excl tax

DESCRIPTION



WG320240A is a mono LCD display module with 320x240 pixels. This mono LCD display WG320x240 module is having the module dimension of 160x109 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch. This WG320240A model is without controller on module.  This LCD display 320240 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1~4 DB0~DB3 Data bus line
5 DISPOFF Display off H:ON L:OFF
6 FLM Scan start-up signal
7 M Frame reverse signal(alternate signal)
8 LP Data latch pulse
9 CP Data shift pulse
10 VDD Power supply for logic
11 VSS Ground
12 VEE Negative Voltage Output
13 VO Contrast Adjustment
14 FGND Frame ground



Mechanical Data

ItemStandard ValueUnit
Module Dimension 160.0 × 109.0 mm
Viewing Area 122.0 × 92.0 mm
Mounting Hole 152.0 × 101.0 mm
Dot Pitch 0.36 × 0.36 mm
Dot Size 0.34 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 23.6 V
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, FSTN white pos
Power supply 3~5V
Display Interface No controller
Display IC NT7086
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 14
Pin Pitch 1.25mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.34
B/L color, LCD type B/L white, FSTN white pos
Power supply 3~5V
Display Interface No controller
Display IC NT7086
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 14
Pin Pitch 1.25mm
Preferred - Not Preferred Preferred
