    PMOLED 0.95" Graphic 96x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, Glare (FPC per Soldering)
    Manufacturer: Winstar
    SKU: WEO9664W#A00-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €9.20
    €8.30
    €7.80
    €7.60

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €9.20 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

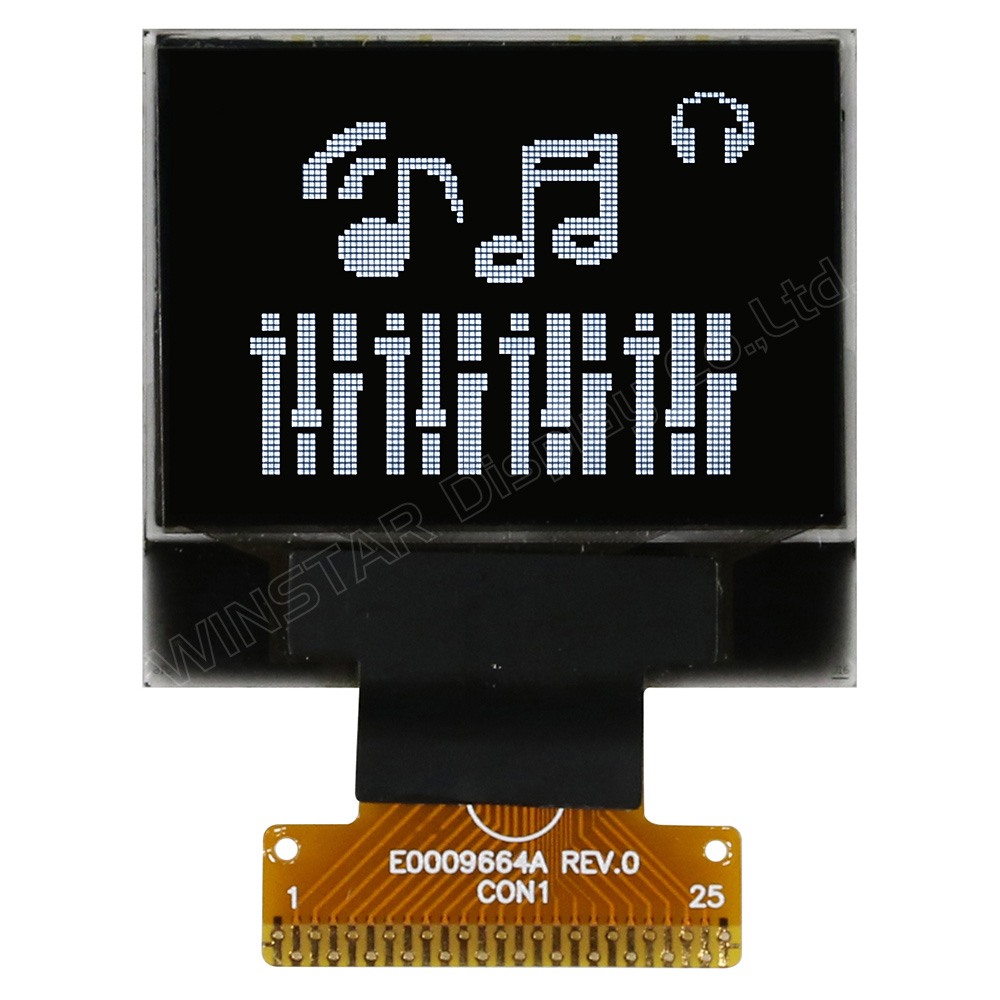

    Small OLED display which is made of resolution 96x64 pixels, diagonal size 0.95 inch. This Passive Matrix OLED is built in with SSD1305 IC; it can communicate via 6800/8080 8-bit parallel, I2C, SPI interface. The supply voltage for logic is 3V, 1/64 driving duty; display with 50% check board current is 6mA@12Vcc (typical value). It can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

    The visible portion of the OLED measures 0.95" diagonal and contains OLED 96x64 pixels is very suitable for portable device since it is much brighter, much higher contrast, wider viewing angle and lower current consumption than conventional LCD. COG OLED displays are ultra thin, lightweight and low power consumption which is great for handheld device, meters, smart grid, IoT, etc.



    DRAWING

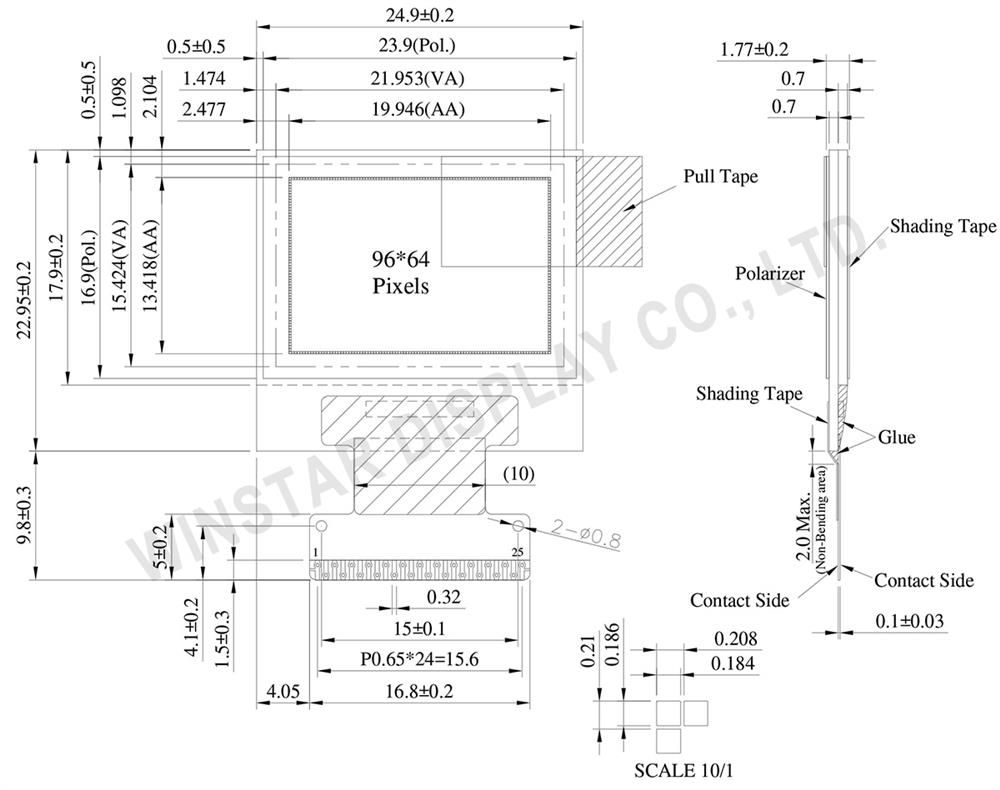

    OLED Graphic 0.95 inch 96x64 - WEO009664A



    SPECIFICATIONS



    Interface Pin Function

    Pin NumberSymbolI/OFunction
    1. N.C. (GND) - Reserved Pin(Supporting Pin)
    The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.
    2. VCC P Power Supply for OLED Panel
    This is the most positive voltage supply pin of the chip.It must be supplied externally.
    3. VSS P Ground of Logic Circuit
    This is a ground pin. It also acts as a reference for the logic pins. It must be connected to external ground.
    4. VDD P Power Supply for Logic Circuit
    This is a voltage supply pin. It must be connected to external source.
    5. VDDIO P Power supply for interface logic level.
    It should be match with MCU interface voltage level. VDDIO must always be equal or lower than VDD.
    6. BS1
    BS2
    I Communicating Protocol Select
    These pins are MCU interface selection input. See the following table:
     68XX-parallel80XX-parallelSerialI2C
    BS1 0 1 0 1
    BS2 1 1 0 0
    7.
    8. CS# I Chip Select
    This pin is the chip select input. The chip is enabled for MCU communication only when CS# is pulled low.
    9. RES# I Power Reset for Controller and Driver
    This pin is reset signal input. When the pin is low, initialization of the chip is executed.
    10. D/C# I Data/ Command Control
    This pin is Data/Command control pin. When the pin is pulled high, the input at D7~D0 is treated as display data. When the pin is pulled low, the input at D7~D0 will be transferred to the command register. For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams.
    When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register. In I2C mode, this pin acts as SA0 for slave address selection.
    11. R/W# I Read/ Write Selector Write
    This pin is MCU interface input. When interfacing to a68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode.
    When 80XXinterface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
    12. E/RD# I Read/Write Enable or Read
    This pin is MCU interface input. When interfacing to a68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
    When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
    13. D0~D7 I/O Host Data In put/ Output Bus
    These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus. When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK. When I2Cmode is selected, D2 & D1 should be tired together and serve as SDAout & SDAin in application and D0 is the serial clock input SCL.
    14.
    15.
    16.
    17.
    18.
    19.
    20.
    21. IREF I Current Reference for Brightness Adjustment
    This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 10μA.
    22. VCOMH O Voltage Output High Level for COM Signal
    This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
    23. VCC P Power Supply for OLED Panel
    This is the most positive voltage supply pin of the chip.It must be supplied externally.
    24. VLSS P Ground of Analog Circuit
    This is an analog ground pin. It should be connected to VSS externally.
    25. N.C. (GND) - Reserved Pin(Supporting Pin)
    The supporting pins can reduce the influences from stresses on the function pins. These pins must be connected to external ground.



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 96 x 64 Dots -
    Module dimension 24.9 × 22.95 × 1.61 mm
    Active Area 19.946 × 13.418 mm
    Pixel Size 0.184 × 0.186 mm
    Pixel Pitch 0.208 × 0.21 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/64 Duty
    IC SSD1305
    Interface 6800,8080,4-Wire SPI,I2C
    Size 0.95 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD -0.3 4 V
    Supply Voltage for Display VCC 0 15 V

    Logic Supply Voltage for MCU interface

    VDDIO 0.3 VDD+0.5 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    DC Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
    Supply Voltage for Display VCC - 11.5 12 12.5 V
    Logic Supply Voltage for MCU interface VDDIO - 1.6 - VDD V
    Input High Volt. VIH - 0.8×VDDIO - VDDIO V
    Input Low Volt. VIL - 0 - 0.2×VDDIO V
    Output High Volt. VOH - 0.9×VDDIO - VDDIO V
    Output Low Volt. VOL - 0 - 0.1×VDDIO V
    50% Check Board operating Current ICC VCC=12V - 6.0 7.5 mA



    Products specifications
    Size 0.95"
    Resolution 96x64
    Active Area (mm) 19.94x13.41
    Dot Size 0.18x0.18
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface 6800/8080/SPI/I2C
    Display IC SSD1305Z
    Constructive Structure COG
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for Soldering
    Pin Nr. 25
    Pin Pitch 0.65mm
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2021/10/04 EOL

    Winstar OLED with IC Solomon SSD1305Z
