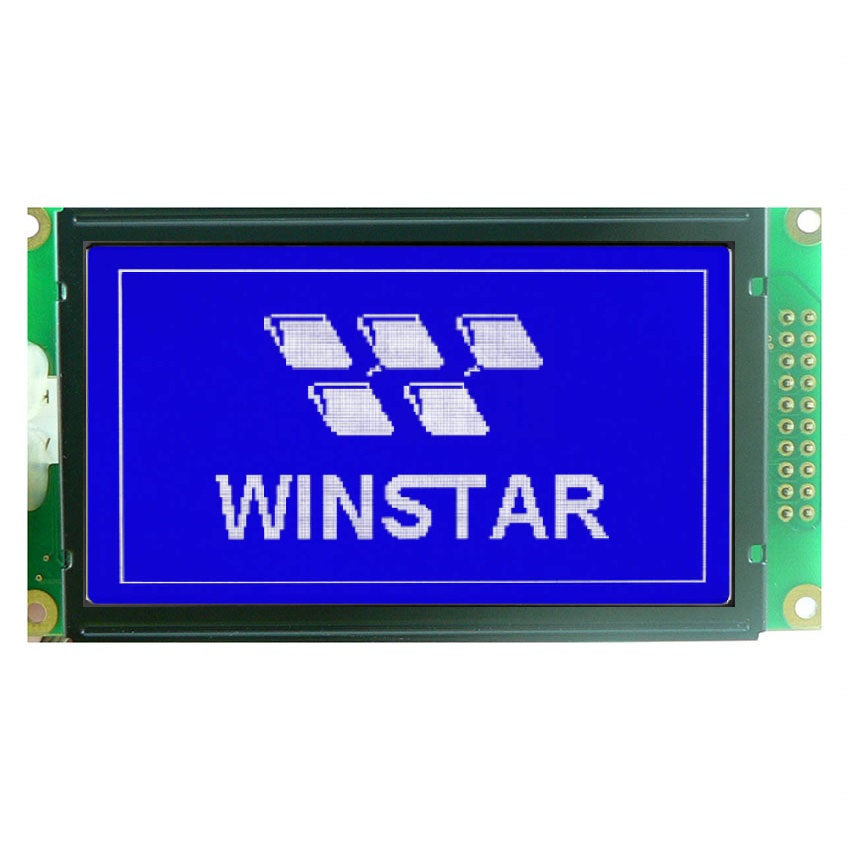

    Graphic LCD 2.9" 128x64, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, 6 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG12864M-TMI-V#N

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €20.20
    €18.10
    €17.10
    €16.70

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €20.20 excl tax
    i h

    DESCRIPTION



    WG12864M is a monochrome 128x64 LCD graphic display module which is having the outline dimension of 95.5x50.2 mm and AA size 66.52x33.24 mm; it is smaller than WG12864K.  WG12864M model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  WG12864M LCD display is 5V power supply and negative voltage built in on module.  This WG12864M module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

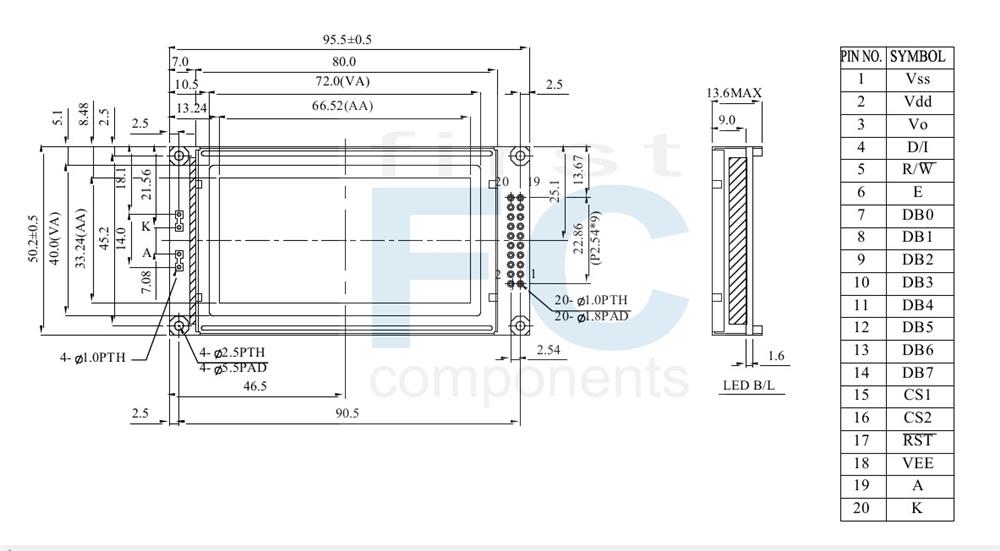

    DRAWING




    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 D/I Data/ Instruction  select signal
    5 R/ W Read/Write select signal
    6 E Enable signal
    7~14 DB0~DB7 Data bus line
    15 CS1 Chip Select for IC1
    16 CS2 Chip Select for IC2
    17 /RST Controller reset signal, Active Low
    18 VEE Negative Voltage Output
    19 A Power supply for B/L +
    20 K Power supply for B/L -



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 95.5 × 50.2 mm
    Viewing Area 72.0 × 40.0 mm
    Mounting Hole 90.5 × 45.2 mm
    Dot Pitch 0.52 × 0.52 mm
    Dot Size 0.48 × 0.48 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 5.0 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 9.10 V


    Products specifications
    Size 2.9"
    Resolution 128x64
    Active Area (mm) 66.52x33.24
    Dot Size 0.48x0.48
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800
    Display IC NT7107T+NT7108T
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
