    Graphic LCD 2.9" 128x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG12864K-TFH-V#N

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €22.00
    €19.80
    €18.60
    €18.20

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €22.00 excl tax
    i h

    DESCRIPTION

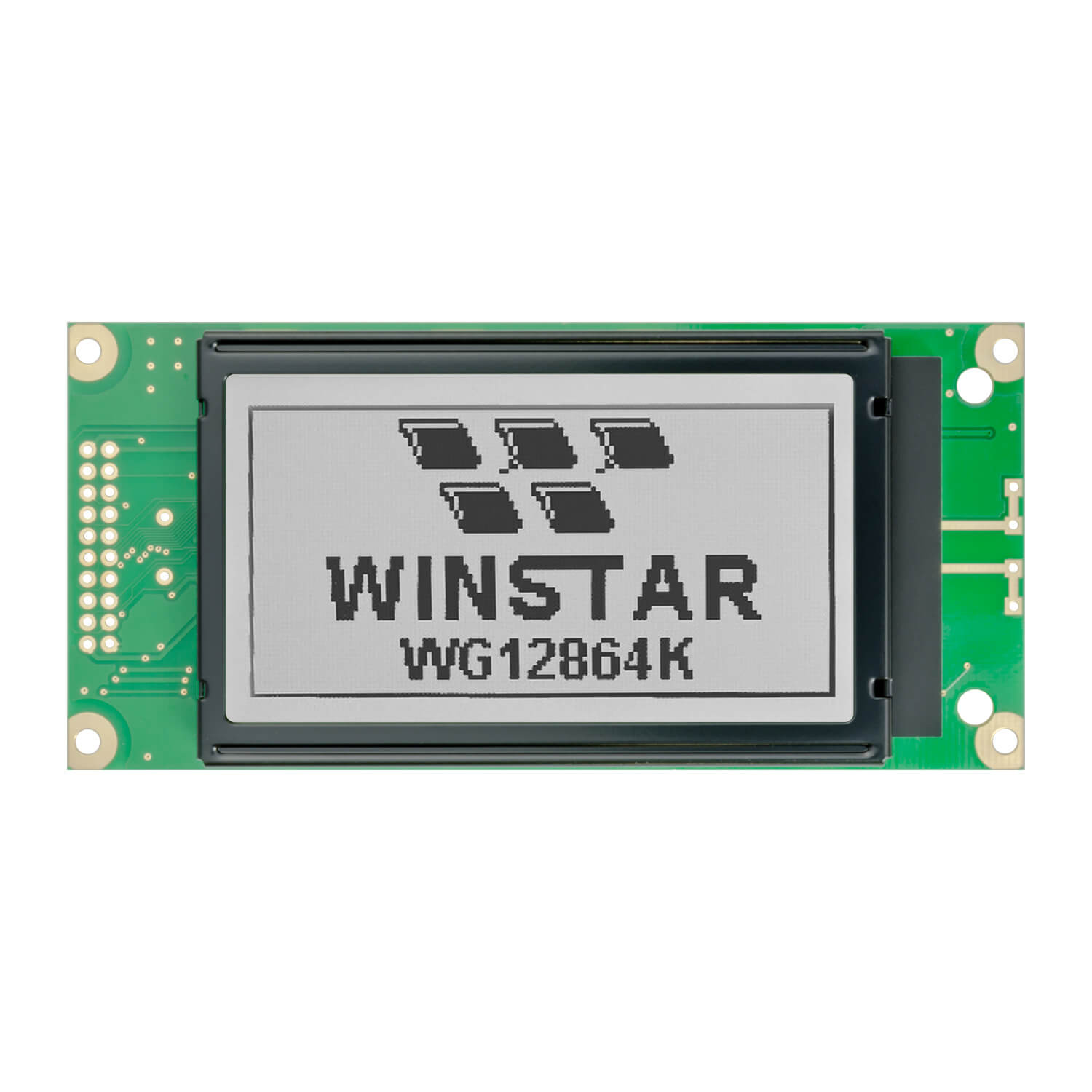

    WG12864K is a monochrome 128x64 LCD graphic display module which is having the outline dimension of 113x53 mm and AA size 66.52x33.24 mm.  WG12864K model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864I LCD display is 5V power supply; it's also negative voltage built in on module.  This 128 x 64 LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


    DRAWING





    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 D/I Data/ Instruction select signal
    5 R/W Read/Write select signal
    6 E Enable signal
    7~14 DB0~DB7 Data bus line
    15 CS1 Select Column 1~ Column 64
    16 CS2 Select Column 65~ Column 128
    17 /RES Controller reset signal, Active Low
    18 VEE Negative Voltage Output
    19 A Power supply for B/L +
    20 K Power supply for B/L -



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 113.0 × 53.0 mm
    Viewing Area 72.0 × 40.0 mm
    Mounting Hole 88.0 × 65.0 mm
    Dot Pitch 0.52 × 0.52 mm
    Dot Size 0.48 × 0.48 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 5.0 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 8.75 V


    Products specifications
    Size 2.9"
    Resolution 128x64
    Active Area (mm) 66.52x33.24
    Dot Size 0.48x0.48
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 5V
    Display Interface 6800
    Display IC NT7107T+NT7108T
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
