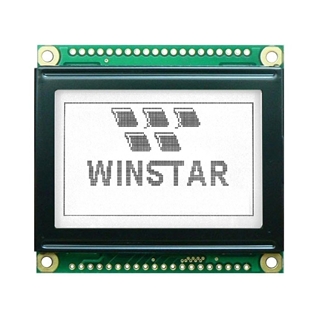

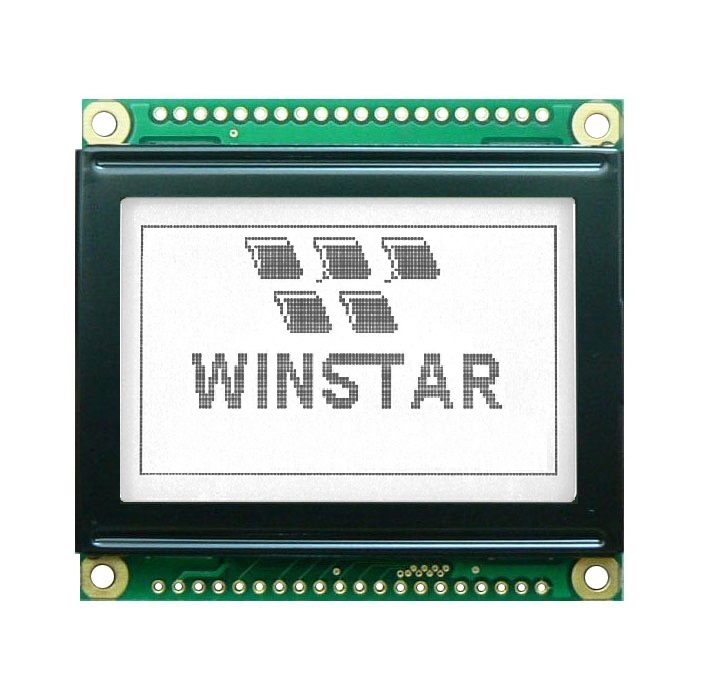

WG12864E1-TFH-V#N110

Graphic LCD 1.9" 128x64, B/L white, FSTN white pos, Transflective, COB, 3V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION



WG12864E1 is a monochrome LCD module 128x64 dot matrix graphic display.  WG12864E1 model is built in with NT7107, NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864E1 LCD display is 5V power supply.  WG12864E1 type is having 4 icons on LCD; This module use LED backlight, , if you would like to use LED backlight also without 4 icons on LCD; please choose WG12864EP2.  The outline of WG12864EP2 is 55x60 mm; it's larger than WG12864E1 (55x50mm).

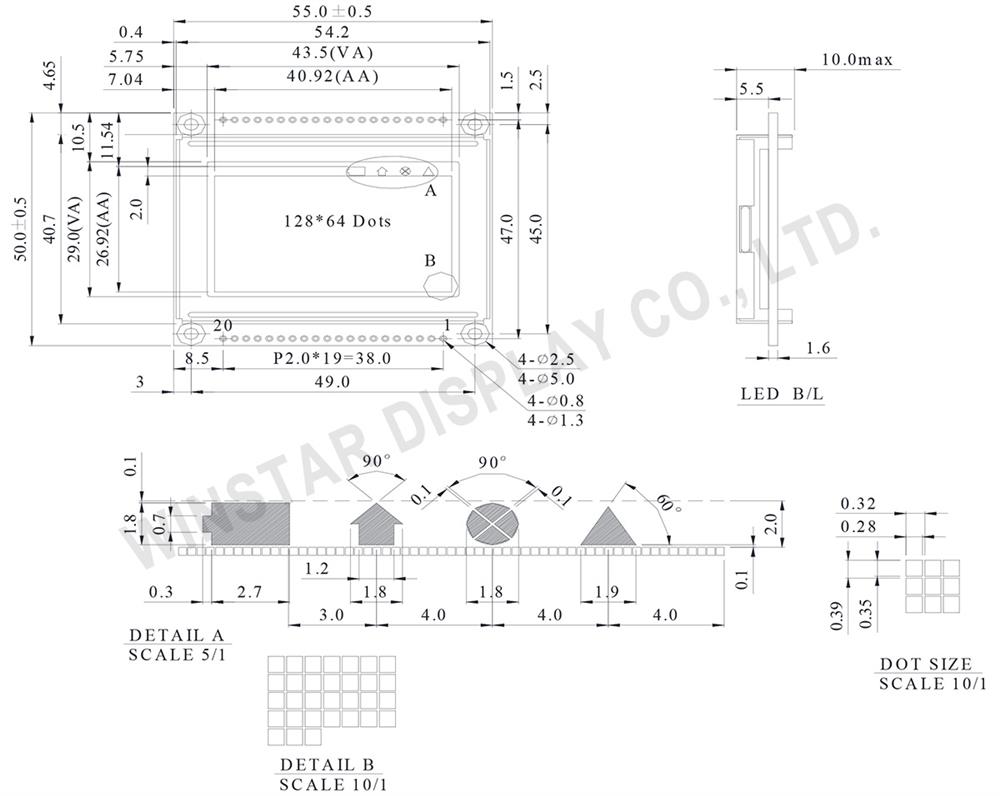

DRAWING

Graphic Module 128x64 - WG12864E1



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 Vss 0V Ground
2 Vdd 5.0V Supply voltage for logic
3 VO (Variable) Operating voltage for LCD
4 D/I H/L H: Data , L: Instruction
5 R/ W H/L H: Read(MPU←Module) , L :Write(MPU→Module)
6 E H Enable signal
7 DB0 H/L Data bus line
8 DB1 H/L Data bus line
9 DB2 H/L Data bus line
10 DB3 H/L Data bus line
11 DB4 H/L Data bus line
12 DB5 H/L Data bus line
13 DB6 H/L Data bus line
14 DB7 H/L Data bus line
15 CS1 H Chip Enable (Select Column 1 ~ Column 64)
16 CS2 H Chip Enable (Select Column 65 ~ Column 128)
17 /RET L Reset signal
18 VEE 　 Negative Voltage output
19 A － Power supply for B/L(+)
20 K － Power supply for B/L(-)



Mechanical Data

ItemDimensionUnit
Number of dots 128 × 64 －
Module dimension 55.0 × 50.0 × 10.0(MAX) mm
View area 43.5 × 29.0 mm
Active area 40.92 × 26.92 mm
Dot size 0.28 × 0.35 mm
Dot pitch 0.32× 0.39 mm
Duty 1/64
Backlight Type LED
IC NT7107, NT7108



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WG12864E1-TFH-V#N110
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.80
€12.30
€11.90
€11.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.80 excl tax

DESCRIPTION



WG12864E1 is a monochrome LCD module 128x64 dot matrix graphic display.  WG12864E1 model is built in with NT7107, NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864E1 LCD display is 5V power supply.  WG12864E1 type is having 4 icons on LCD; This module use LED backlight, , if you would like to use LED backlight also without 4 icons on LCD; please choose WG12864EP2.  The outline of WG12864EP2 is 55x60 mm; it's larger than WG12864E1 (55x50mm).


DRAWING

Graphic Module 128x64 - WG12864E1



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 Vss 0V Ground
2 Vdd 5.0V Supply voltage for logic
3 VO (Variable) Operating voltage for LCD
4 D/I H/L H: Data , L: Instruction
5 R/ W H/L H: Read(MPU←Module) , L :Write(MPU→Module)
6 E H Enable signal
7 DB0 H/L Data bus line
8 DB1 H/L Data bus line
9 DB2 H/L Data bus line
10 DB3 H/L Data bus line
11 DB4 H/L Data bus line
12 DB5 H/L Data bus line
13 DB6 H/L Data bus line
14 DB7 H/L Data bus line
15 CS1 H Chip Enable (Select Column 1 ~ Column 64)
16 CS2 H Chip Enable (Select Column 65 ~ Column 128)
17 /RET L Reset signal
18 VEE 　 Negative Voltage output
19 A － Power supply for B/L(+)
20 K － Power supply for B/L(-)



Mechanical Data

ItemDimensionUnit
Number of dots 128 × 64 －
Module dimension 55.0 × 50.0 × 10.0(MAX) mm
View area 43.5 × 29.0 mm
Active area 40.92 × 26.92 mm
Dot size 0.28 × 0.35 mm
Dot pitch 0.32× 0.39 mm
Duty 1/64
Backlight Type LED
IC NT7107, NT7108



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Date Notice Link/Description
2023/04/06 PCN Neotec IC NT7107C/NT7108C > NT7107T/NT7108T for WG12864 & WG19264 Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 1.9"
Resolution 128x64
Active Area (mm) 40.92x26.92
Dot Size 0.28x0.35
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V
Display Interface 6800
Display IC NT7107T+NT7108T
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2mm
Preferred - Not Preferred Preferred
