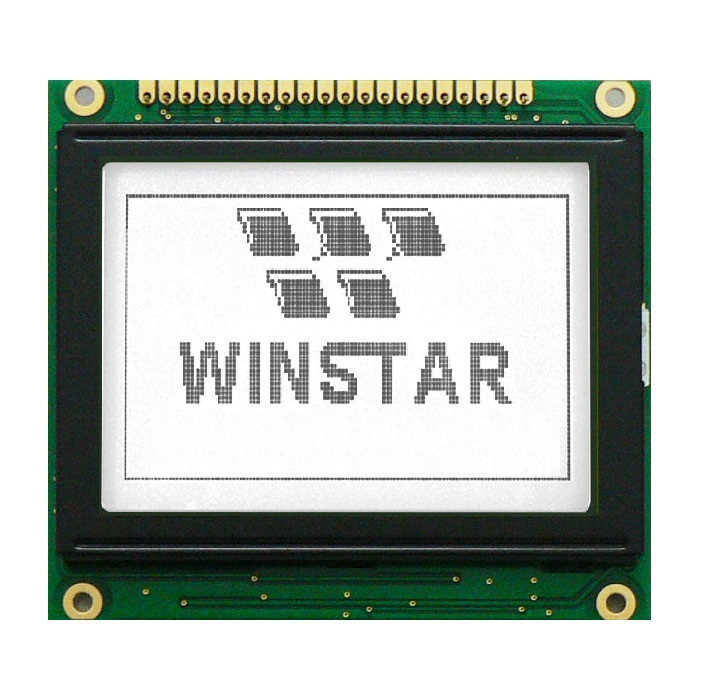

    Graphic LCD 2.7" 128x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG12864C-TFH-V#N

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €21.30
    €19.20
    €18.00
    €17.60

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €21.30 excl tax
    i h

    DESCRIPTION

    WG12864C is a mono LCD graphic display 128x64 dot matrix module, diagonal size 2.7 inch.  WG12864C model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface.  The WG12864C LCD display is 5V power supply; it’s also negative voltage 3.3V power supply optional.  This graphic display 128x64 module is available for without backlight or with LED backlight options. WG12864C is available in various LED colors including yellow/green, blue, white, red, and RGB, etc.  This model graphic LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

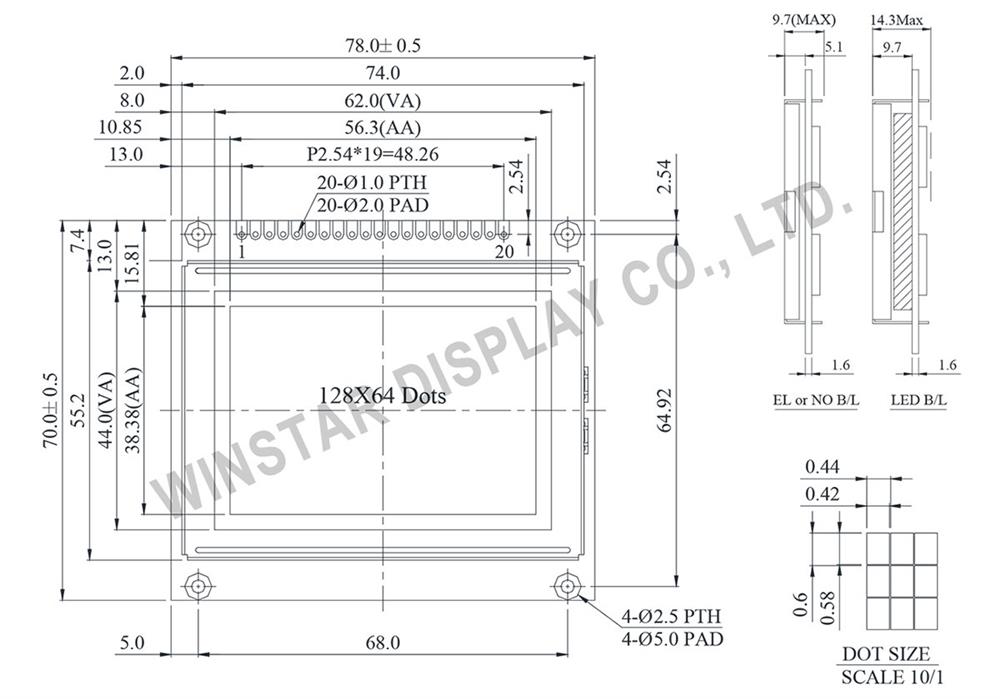

    DRAWING

    LCD Graphic Display 128x64, LCD Display 128x64 WG12864C



    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 /CS1 Select Column 1~ Column 64
    2 /CS2 Select Column 65~ Column 128
    3 VSS Ground
    4 VDD Power supply for logic
    5 VO Contrast Adjustment
    6 D/I Data/ Instruction select signal
    7 R/W Read/Write select signal
    8 E Enable signal
    9~16 DB0~DB7 Data bus line
    17 RST Controller reset signal, Active Low
    18 VEE Negative Voltage Output
    19 A Power supply for B/L +
    20 K Power supply for B/L -



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 78.0 ×70.0 mm
    Viewing Area 62.0 × 44.0 mm
    Mounting Hole 68.0 ×64.92 mm
    Dot Pitch 0.44 ×0.60 mm
    Dot Size 0.42 × 0.58 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 5.0 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 8.50 V


    Products specifications
    Size 2.7"
    Resolution 128x64
    Active Area (mm) 56.30x38.38
    Dot Size 0.42x0.58
    B/L color, LCD type B/L white, FSTN white pos
    Power supply 5V
    Display Interface 6800
    Display IC NT7107T+NT7108T
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
