    WF70-800480D2D#ASP1-FC

    Be the first to review this product
    TFT 7" 800x480 LCD Panel, Interface RGB (40pin), High Brightness 1150cd/m², Wide View Angle (IPS), Resistive Touch Panel
    Manufacturer: Winstar
    SKU: WF70-800480D2D#ASP1-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €62.40
    €56.10
    €52.80

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €62.40 excl tax
    i h

    DESCRIPTION



    WF70-800480D2D#ASP1-FC is a cell product of 7” color TFT-LCD (Thin Film Transistor Liquid Crystal Display), which is 15:9 aspect ratio panels for the high end car application.  The 7” screen produces a high resolution image that is composed of 384,000 (800x480) pixel elements in a stripe arrangement.





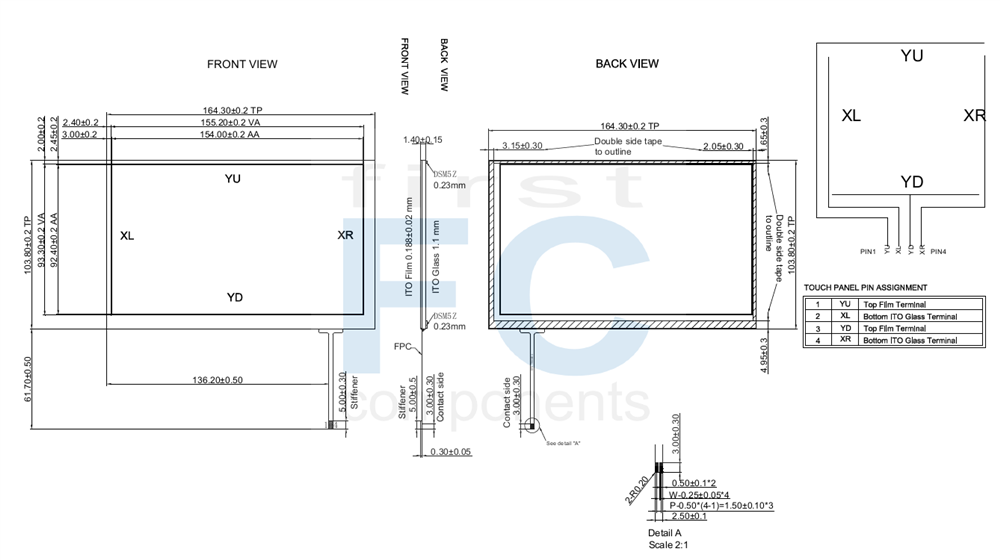

    DRAWING





    SPECIFICATIONS



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 × RGB × 480(TFT) dots
    Module dimension 165.0(W) × 104.6(H) × 8.93 (MAX)(D) mm
    Active area 152.4 × 91.44 mm
    Pixel pitch 0.1905 × 0.1905 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 85/85/85/85
    TFT IC RM53010+RM57410
    Aspect Ratio 15:9
    Backlight Type LED, Normally White
    TFT Interface 18-bit RGB
    Touch Panel Resistive Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 － +70 ℃
    Storage Temperature TST -30 － +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM Vcc － 2.9 3.3 3.6 V
    Supply Current For LCM Icc Black Pattern － 85 130 mA



    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
