    WF70-800480D2D#0P1-FC

    Be the first to review this product

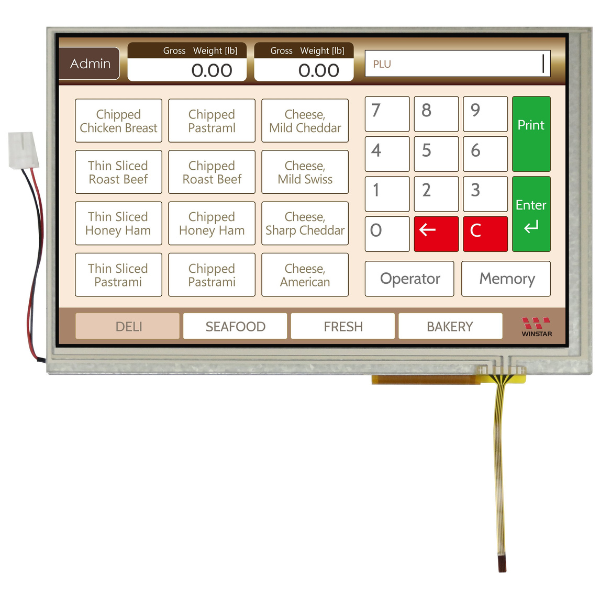

    TFT 7" 800x480 LCD Panel, Interface RGB (40pin), 300cd/m², Wide View Angle (IPS), Resistive Touch Panel
    Manufacturer: Winstar
    SKU: WF70-800480D2D#0P1-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €59.80
    €53.80
    €50.60

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €59.80 excl tax
    i h

    DRAWING



    SPECIFICATIONS

    General Specification

    1 LCD Type TFT
    2 View Angle 85/85/85/85
    3 Surface Anti-Glare
    4 Screen size 7.0"
    5 Display size 800 x RGB x 480
    6 Operating Temperature -20°C~70°C
    7 Storage Temperature -30°C~80°C
    8 Active area 152.4 (W) x 91.44 (H)
    9 Pixel pitch 0.1905(W) x 0.1905(H) mm
    10 Color arrangement RGB-STRIPE
    11 Brightness 250min. 300typ. cd/m2
    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
