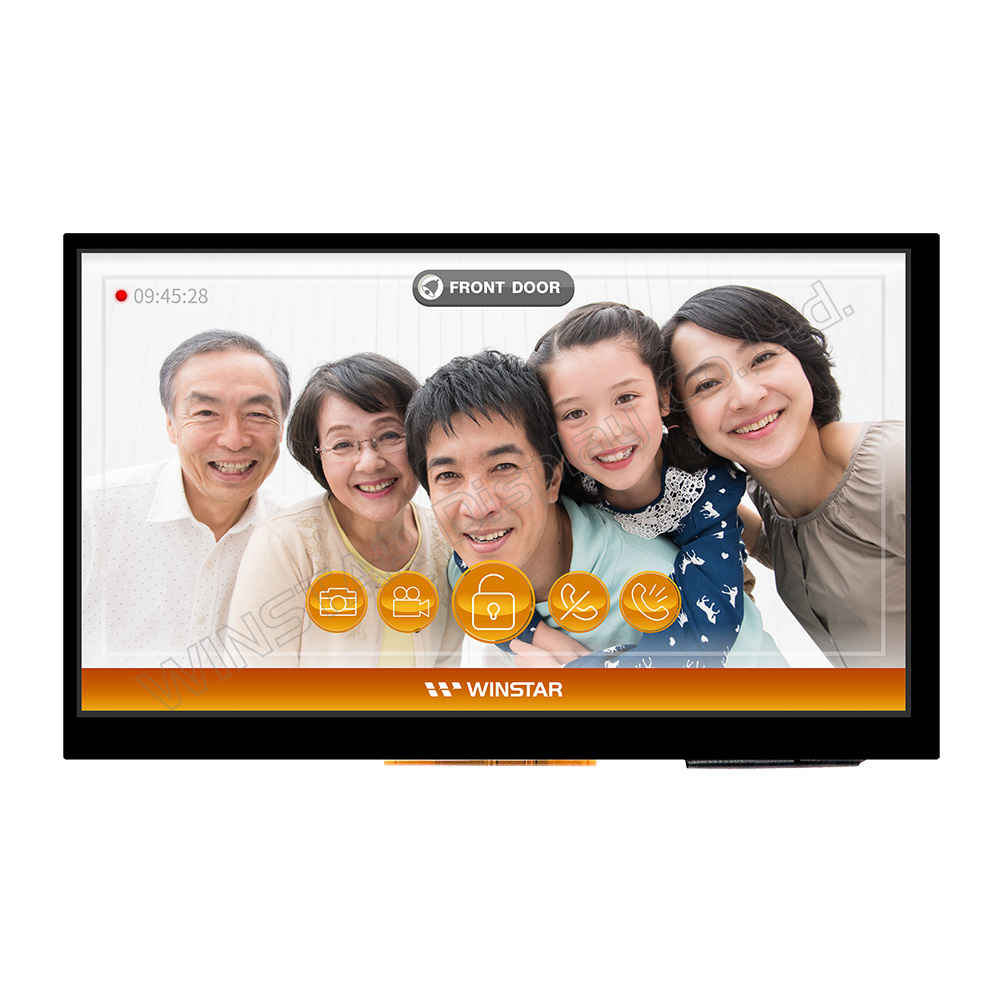

    WF70-800480A2H#VS3-FC

    TFT 7" 800x480, HDMI / Raspberry Interface, IC TFP401, High Brightness 750cd/m², Incl. 2 connectors, Capacitive touch panel Mouse mode with USB interface (GG, ILI2130 IC), Suitable for Raspberry Pi 1~3 & Pi3B+ versions
    Manufacturer: Winstar
    SKU: WF70-800480A2H#VS3-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €88.10
    €79.30
    €74.50

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €88.10 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION

    7 inch supporting HDMI (Only DVI) signal TFT-LCD module with Projected Capacitive Touch Panel (PCAP); it’s made of WVGA 800x480 resolution. It has a control board which supports HDMI signal interface and a 40-pin GPIO connector on board; it is designed to make Raspberry Pi 1~3 & Pi3B+ versions usage become easily. This display has a USB interface Capacitive Touch Screen overlay on TFT panel. We designed a connector (P/N WWHDMI-00#) and USB cable for option, the customers can use it to connect the module with your Raspberry Pi directly. Please note, this part no. does not include any HDMI connector or USB cable.

    The module is built in with TFP401 Controller IC convert signal to support HDMI (Only DVI) signal interface, as to the PCAP (CTP) IC is ILI2130 from April 2021 (FT5426 until April 2021), it supports USB interface. The supply voltage for LCM (VDD) is typical value 5V. It is featured with Glare surface glass, view direction 12 o'clock, gray scale inversion 6 o'clock.

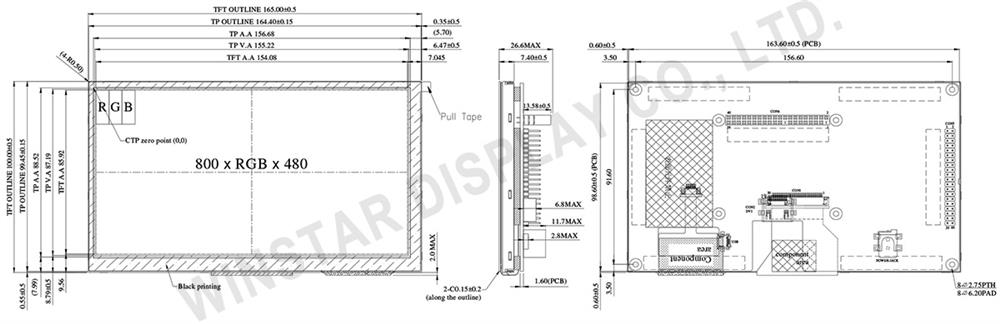

    DRAWING

    WF70A2TIFGDHGV

    SPECIFICATIONS

    Interface

    LCM PIN Definition(CON6)

    PinSymbolFunction
    1 NC No connection
    2 5V Raspberry Pi:Power 5V
    3 GPIO02 Raspberry Pi:GPIO02
    4 5V Raspberry Pi:Power 5V
    5 GPIO03 Raspberry Pi:GPIO03
    6 GND Raspberry Pi:GND
    7 GPIO04 Raspberry Pi:GPIO04
    8 GPIO14 Raspberry Pi:GPIO14
    9 GND Raspberry Pi:GND
    10 GPIO15 Raspberry Pi:GPIO15
    11 GPIO17 Raspberry Pi:GPIO17
    12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
    13 GPIO27 Raspberry Pi:GPIO27
    14 GND Raspberry Pi:GND
    15 GPIO22 Raspberry Pi:GPIO22
    16 GPIO23 Raspberry Pi:GPIO23
    17 NC No connection
    18 GPIO24 Raspberry Pi:GPIO24
    19 GPIO10 Raspberry Pi:GPIO10
    20 GND Raspberry Pi:GND
    21 GPIO09 Raspberry Pi:GPIO09
    22 GPIO25 Raspberry Pi:GPIO25
    23 GPIO11 Raspberry Pi:GPIO11
    24 GPIO08 Raspberry Pi:GPIO08
    25 GND Raspberry Pi:GND
    26 GPIO07 Raspberry Pi:GPIO07
    27 ID_SD Raspberry Pi:ID_SD
    28 ID_SC Raspberry Pi:ID_SC
    29 GPIO05 Raspberry Pi:GPIO05
    30 GND Raspberry Pi:GND
    31 GPIO06 Raspberry Pi:GPIO06
    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21


    LCM PIN Definition (CON5)

    PinSymbolFunction
    1 3.3V TFT Module Power limit can only output 3.3V,100mA
    2 5V Raspberry Pi:Power 5V
    3 GPIO02 Raspberry Pi:GPIO02
    4 5V Raspberry Pi:Power 5V
    5 GPIO03 Raspberry Pi:GPIO03
    6 GND Raspberry Pi:GND
    7 GPIO04 Raspberry Pi:GPIO04
    8 GPIO14 Raspberry Pi:GPIO14
    9 GND Raspberry Pi:GND
    10 GPIO15 Raspberry Pi:GPIO15
    11 GPIO17 Raspberry Pi:GPIO17
    12 GPIO18 Raspberry Pi:GPIO18 (Backlight Enable)
    13 GPIO27 Raspberry Pi:GPIO27
    14 GND Raspberry Pi:GND
    15 GPIO22 Raspberry Pi:GPIO22
    16 GPIO23 Raspberry Pi:GPIO23
    17 3.3V TFT Module Power limit can only output 3.3V,100mA
    18 GPIO24 Raspberry Pi:GPIO24
    19 GPIO10 Raspberry Pi:GPIO10
    20 GND Raspberry Pi:GND
    21 GPIO09 Raspberry Pi:GPIO09
    22 GPIO25 Raspberry Pi:GPIO25
    23 GPIO11 Raspberry Pi:GPIO11
    24 GPIO08 Raspberry Pi:GPIO08
    25 GND Raspberry Pi:GND
    26 GPIO07 Raspberry Pi:GPIO07
    27 ID_SD Raspberry Pi:ID_SD
    28 ID_SC Raspberry Pi:ID_SC
    29 GPIO05 Raspberry Pi:GPIO05
    30 GND Raspberry Pi:GND
    31 GPIO06 Raspberry Pi:GPIO06
    32 GPIO12 Raspberry Pi:GPIO12
    33 GPIO13 Raspberry Pi:GPIO13
    34 GND Raspberry Pi:GND
    35 GPIO19 Raspberry Pi:GPIO19
    36 GPIO16 Raspberry Pi:GPIO16
    37 GPIO26 Raspberry Pi:GPIO26
    38 GPIO20 Raspberry Pi:GPIO20
    39 GND Raspberry Pi:GND
    40 GPIO21 Raspberry Pi:GPIO21


    POWER JACK

    Pin No.SymbolI/OFunction
    1 5V P Power Supply (5V)
    2 GND P Ground
    3 NC   No connection


    HDMI

    Pin No.SymbolI/OFunction
    1 Rx2+ I +LVDS Differential Data Input
    2 GND P Ground
    3 Rx2- I -LVDS Differential Data Input
    4 Rx1+ I +LVDS Differential Data Input
    5 GND P Ground
    6 Rx1- I -LVDS Differential Data Input
    7 Rx0+ I +LVDS Differential Data Input
    8 GND P Ground
    9 Rx0- I -LVDS Differential Data Input
    10 RxC+ I +LVDS Differential Clock Input
    11 GND P Ground
    12 RxC- I -LVDS Differential Clock Input
    13-14 NC - No connection
    15 SCL I/O DDC(Data Display Channel) Clock
    16 SDA I/O DDC(Data Display Channel) Data
    17 GND P Ground
    18 5V P Power Supply
    19 Detect I/O Hot plug detect
    I: input, O: output, P: Power

    USB

    Pin No.SymbolI/OFunction
    1 5V P Power Supply
    2 D- I/O USB Data -
    3 D+ I/O USB Data +
    4 NC - No connection
    5 GND P Ground


    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 × RGB × 480(TFT) dots
    Module dimension 165.0(W) × 100(H) × 26.6(D) mm
    Active area 154.08 × 85.92 mm
    Dot pitch 0.0642 × 0.179 mm
    LCD type TFT, Normally White, Transmissive
    View Direction 12 o'clock
    Gray Scale Inversion Direction 6 o'clock
    Aspect Ratio 16:9
    Controller IC TFP401 or equivalent
    Backlight Type LED, Normally White
    Interface Support HDMI Connector (Only DVI Signal)
    PCAP IC ILI2130 from April 2021 (FT5426 until April 2021)
    PCAP Interface USB
    PCAP FW Version 03
    Touch Panel With PCAP
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 154.08x85.92
    Color Full Color
    Display Interface HDMI
    View Angle TN
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection HDMI Connector / Raspberry Connector
    Touch Panel IC Controller ILI2130
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2024/07/31 EOL

    Production Discontinuation of Sitronix ST7623 Driver for
    Winstar TFTs WF70-800480A2 and WF70-800480B7



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
