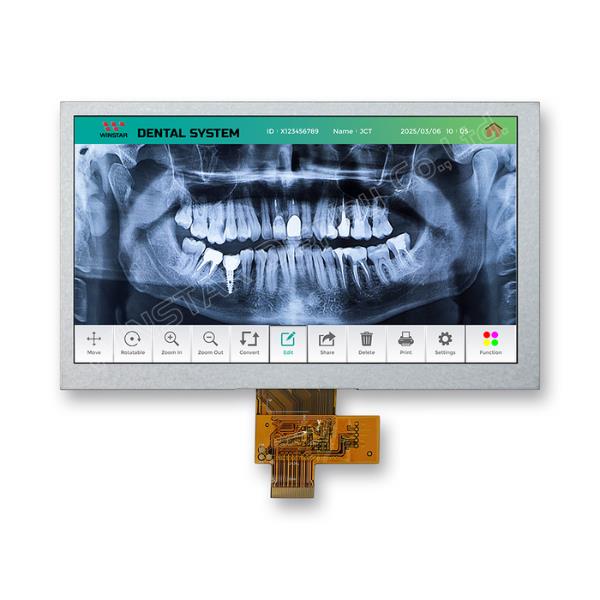

WF70-1024600D5M#0SPW0-FC

TFT 7" 1024x600 LCD Panel, Interface MIPI, Super High Brightness 1300 cd/m², Wide View Angle (IPS), Super extended Temperature, No touch

DESCRIPTION

The WF70-1024600D5M#0SPW0-FC module introduces a wide-temperature version, designed to offer enhanced temperature resistance and stability for demanding environments. This ensures high performance even in the most challenging conditions, making it ideal for applications that require reliable operation in extreme temperatures, such as outdoor kiosks, industrial control systems, transportation displays, and automotive dashboards.

The WF70-1024600D5M#0SPW0-FC is a 7-inch high-brightness TFT display module with a wide operating temperature range of -30℃ to +85℃ and a storage temperature range of -40℃ to +90℃. With a high brightness of 1300 cd/m² and a contrast ratio of 1000:1, this display provides exceptional clarity and visibility even in outdoor or high-ambient-light environments, making it suitable for digital signage, industrial equipment, and automotive displays.

Incorporating MIPI interface support with 4-lane transmission, the WF70-1024600D5M#0SPW0-FC ensures high-speed data transfer and reliability for long-distance signal transmission. Additionally, it features IPS technology, which offers an 80° wide viewing angle in all directions, providing consistent color and clarity from multiple perspectives.

Designed with robust durability and a typical operating voltage of 1.8V (ranging from 1.71V to 1.89V), this display is perfect for applications that require both high performance and stable operation in extreme conditions, including outdoor and automotive environments.

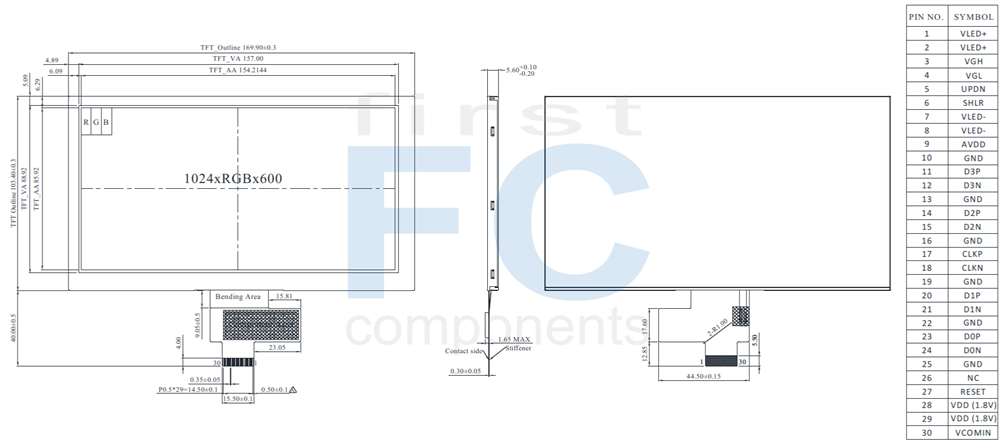

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 5.6(D) mm
Active area 154.2144 × 85.92 mm
Pixel pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Angle 80/80/80/80
TFT Driver IC JD9165BA
TFT Interface 4-Lanes MIPI
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power voltage VDD 1.71 1.8 1.89 V
Analog Power AVDD - 11 - V
TFT Gate ON Voltage VGH 19.5 20 20 V
TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
TFT Common Voltage VCOMIN - 4.9 - V
 Power Current IDD - 14 22 mA
Analog Power Current IAVDD - 18.5 - mA
TFT Gate ON Current IVGH - 1.5 - mA
TFT Gate OFF Current IVGL - 1.5 - mA
TFT Common Current IVCOMIN - 1 - uA



LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current 240 mA
LED voltage VLED+ 16.2 19.2 21.0 V
LED Life Time 50,000 Hr



Interface

1.LCM PIN Definition

Pin No.SymbolFunction
1 VLED+ LED Anode
2 VLED+ LED Anode
3 VGH Positive power for TFT
4 VGL Negative power for TFT
5 UPDN Horizontal inversion
6 SHLR Vertical inversion
7 VLED- LED Cathode
8 VLED- LED Cathode
9 AVDD Power for Analog Circuit
10 GND Ground
11 D3P MIPI data input.
12 D3N MIPI data input.
13 GND Ground
14 D2P MIPI data input.
15 D2N MIPI data input.
16 GND Ground
17 CLKP MIPI clock input
18 CLKN MIPI clock input
19 GND Ground
20 D1P MIPI data input.
21 D1N MIPI data input.
22 GND Ground
23 D0P MIPI data input.
24 D0N MIPI data input.
25 GND Ground
26 NC No connection
27 RESET Global reset pin. Active Low to enter Reset State. Normally pull high. Connecting with an RC reset circuit for stability.
28 VDD(1.8V) Digital circuit
29 VDD(1.8V) Digital circuit
30 VCOMIN Common voltage


SKU: WF70-1024600D5M#0SPW0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€40.00
€32.00
€26.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€40.00 excl tax
