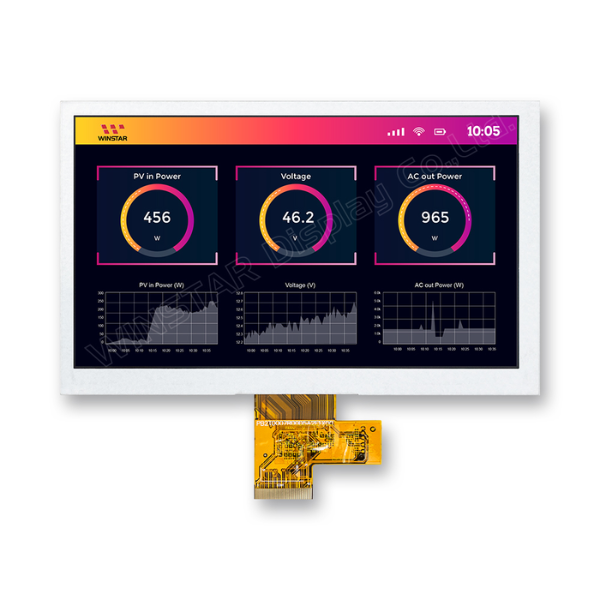

WF70-1024600D5L#0SPW0-FC

TFT 7" 1024x600 LCD Panel, Interface LVDS, Super High Brightness 1300 cd/m², Wide View Angle (IPS), Super extended Temperature, No touch

DESCRIPTION

The WF70-1024600D5L#0SPW0-FC module is designed for demanding applications with its wide-temperature range, enhanced durability, and reliability. It is specifically built to withstand extreme temperature environments. This 7-inch IPS TFT-LCD display module boasts a 1024x600 resolution, JD9165BA driver IC, and LVDS interface, ensuring clear, stable performance in both indoor and industrial applications. With a brightness of 1300 cd/m² and a contrast ratio of 1000:1, it delivers vibrant and crisp visuals.

The IPS technology ensures an 80° wide viewing angle, maintaining stable colors and clear image quality even when viewed from the side. Equipped with an LVDS interface, it offers high-speed data transfer and strong resistance to interference, ensuring stable image output and making it suitable for applications requiring long-distance signal transmission.

The WF70-1024600D5L#0SPW0-FC model is optimized for wide-temperature environments, with an operating temperature range of -30℃ to +85℃ and a storage range of -40℃ to +90℃, making it ideal for harsh conditions. This makes it a perfect fit for industrial equipment, self-service terminals, medical devices, and automation control systems.

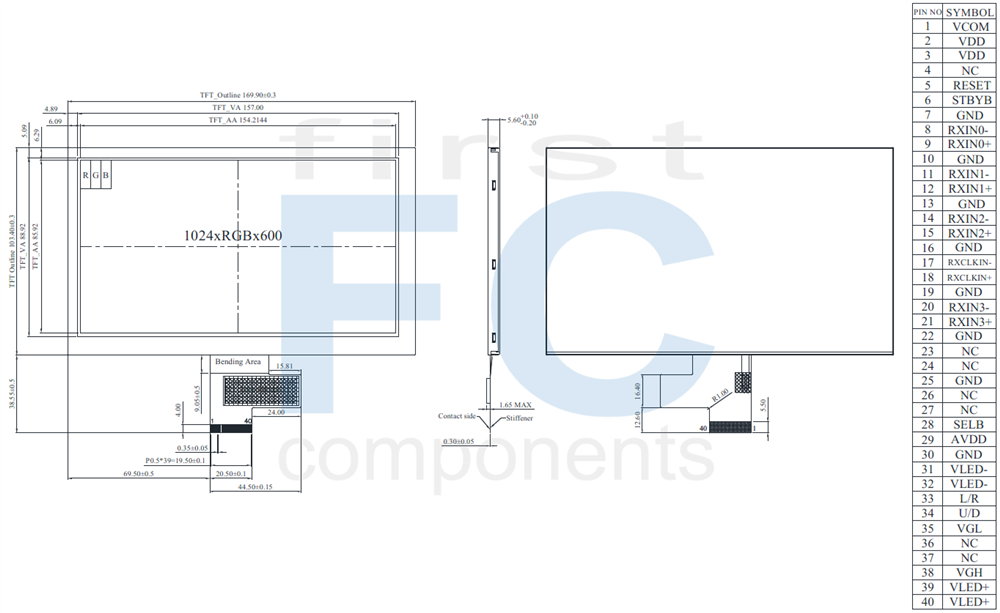

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 5.6(D) mm
Active area 154.2144 × 85.92 mm
Pixel pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Angle 80/80/80/80
TFT Driver IC JD9165BA
Backlight Type LED, Normally White
TFT Interface LVDS
Touch Panel Without Touch Panel
Surface Anti-Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90


Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power voltage VDD 3.0 3.3 3.6 V
Analog Power AVDD - 11 - V
TFT Gate ON Voltage VGH 19.5 20 20 V
TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
TFT Common Voltage Vcom - 4.9 - V
Power Current IDD - 18 27 mA
Analog Power Current IAVDD - 20.94 - mA
TFT Gate ON Current IVGH - 1.5 - mA
TFT Gate OFF Current IVGL - 1.5 - mA
TFT Common Current IVCOM - 1 - uA



LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current 240 mA
LED voltage VLED+ 16.2 19.2 21.0 V
LED Life Time 50,000 Hr



Interface

1.LCM PIN Definition

Pin No.SymbolFunction
1 VCOM Common Voltage
2 VDD Digital circuit
3 VDD Digital circuit
4 NC No connection
5 RESET Global reset pin
6 STBYB Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND Ground
8 RXIN0- Negative LVDS differential data input
9 RXIN0+ Positive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC No connection
27 NC No connection
28 SELB 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD Power for Analog Circuit
30 GND Ground
31 VLED- LED_ Cathode
32 VLED- LED_ Cathode
33 L/R Horizontal inversion
34 U/D Vertical inversion
35 VGL Negative power for TFT
36 NC No connection
37 NC No connection
38 VGH Positive power for TFT
39 VLED+ LED_ Anode
40 VLED+ LED_ Anode

SKU: WF70-1024600D5L#0SPW0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€39.90
€31.90
€26.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€39.90 excl tax

DESCRIPTION

The WF70-1024600D5L#0SPW0-FC module is designed for demanding applications with its wide-temperature range, enhanced durability, and reliability. It is specifically built to withstand extreme temperature environments. This 7-inch IPS TFT-LCD display module boasts a 1024x600 resolution, JD9165BA driver IC, and LVDS interface, ensuring clear, stable performance in both indoor and industrial applications. With a brightness of 1300 cd/m² and a contrast ratio of 1000:1, it delivers vibrant and crisp visuals.

The IPS technology ensures an 80° wide viewing angle, maintaining stable colors and clear image quality even when viewed from the side. Equipped with an LVDS interface, it offers high-speed data transfer and strong resistance to interference, ensuring stable image output and making it suitable for applications requiring long-distance signal transmission.

The WF70-1024600D5L#0SPW0-FC model is optimized for wide-temperature environments, with an operating temperature range of -30℃ to +85℃ and a storage range of -40℃ to +90℃, making it ideal for harsh conditions. This makes it a perfect fit for industrial equipment, self-service terminals, medical devices, and automation control systems.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 5.6(D) mm
Active area 154.2144 × 85.92 mm
Pixel pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Angle 80/80/80/80
TFT Driver IC JD9165BA
Backlight Type LED, Normally White
TFT Interface LVDS
Touch Panel Without Touch Panel
Surface Anti-Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +85
Storage Temperature TST -40 +90


Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power voltage VDD 3.0 3.3 3.6 V
Analog Power AVDD - 11 - V
TFT Gate ON Voltage VGH 19.5 20 20 V
TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
TFT Common Voltage Vcom - 4.9 - V
Power Current IDD - 18 27 mA
Analog Power Current IAVDD - 20.94 - mA
TFT Gate ON Current IVGH - 1.5 - mA
TFT Gate OFF Current IVGL - 1.5 - mA
TFT Common Current IVCOM - 1 - uA



LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current 240 mA
LED voltage VLED+ 16.2 19.2 21.0 V
LED Life Time 50,000 Hr



Interface

1.LCM PIN Definition

Pin No.SymbolFunction
1 VCOM Common Voltage
2 VDD Digital circuit
3 VDD Digital circuit
4 NC No connection
5 RESET Global reset pin
6 STBYB Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND Ground
8 RXIN0- Negative LVDS differential data input
9 RXIN0+ Positive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC No connection
27 NC No connection
28 SELB 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD Power for Analog Circuit
30 GND Ground
31 VLED- LED_ Cathode
32 VLED- LED_ Cathode
33 L/R Horizontal inversion
34 U/D Vertical inversion
35 VGL Negative power for TFT
36 NC No connection
37 NC No connection
38 VGH Positive power for TFT
39 VLED+ LED_ Anode
40 VLED+ LED_ Anode

Products specifications
Brand Winstar
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable Super High >1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
