WF70-1024600A8M#CSP3-FC

TFT 7" 1024x600 LCD Panel, Interface MIPI (EK79007AD3 + EK73217BCGA), High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel

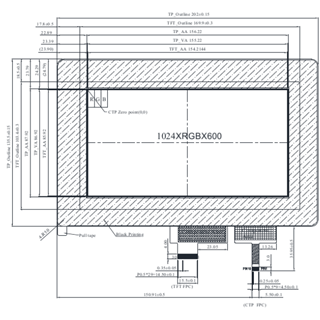

DRAWING

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	1024 × RGB × 600(TFT)	dots
Module dimension	202.0(W) × 135.5(H) × 8.4(D)	mm
Active area	154.2144 × 85.92	mm
Pixel pitch	0.1506 × 0.1506	mm
LCD type	TFT, Normally Black, Transmissive
View Angle	85/85/85/85
TFT IC	EK79007AD3 + EK7321BCGA or equivalent
Aspect Ratio	16:9
TFT Interface	4-lanes MIPI
CTP IC	GT911 or equivalent
CTP Interface	I2C
Backlight Type	LED, Normally White
With/without TP	With CTP
Surface	Glare

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Item	Symbol	Min	Typ	Max	Unit
Power Voltage	Vdd	1.71	1.8	1.89	V
Current For Driver	Idd	－	16	24	mA

SKU: WF70-1024600A8M#CSP3-FC

Brand: Winstar

Available: No

Accessory Kit

Price Breaks

Quantity

10+

Price

€58.70

€52.90

€43.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€58.70 excl tax

Item	Dimension	Unit
Size	7.0	inch
Dot Matrix	1024 × RGB × 600(TFT)	dots
Module dimension	202.0(W) × 135.5(H) × 8.4(D)	mm
Active area	154.2144 × 85.92	mm
Pixel pitch	0.1506 × 0.1506	mm
LCD type	TFT, Normally Black, Transmissive
View Angle	85/85/85/85
TFT IC	EK79007AD3 + EK7321BCGA or equivalent
Aspect Ratio	16:9
TFT Interface	4-lanes MIPI
CTP IC	GT911 or equivalent
CTP Interface	I2C
Backlight Type	LED, Normally White
With/without TP	With CTP
Surface	Glare

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Item	Symbol	Min	Typ	Max	Unit
Power Voltage	Vdd	1.71	1.8	1.89	V
Current For Driver	Idd	－	16	24	mA
