WF57FTLAFDNN0#

Picture of WF57FTLAFDNN0# Picture of WF57FTLAFDNN0#
TFT 5.7" 640x480 LCD Panel, Interface RGB, 500cd/m², No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



Winstar Display standard TFT module is featured with VGA 640x480 resolution. This display has the outline dimension of 125.0 x 98.8 x 5.95 mm (without FPC) and Active Area size of 115.2 x 86.4 mm. The display is available with Capacitive Touch Panel and Resistive Touch Panel options.

5.7 inch TFT Panel is RBG interface; 6 o'clock view direction and gray scale inversion direction 12 o'clock and the panel aspect ratio is 4:3. The supply voltage range for LCM (VCC) is from 3.0V to 3.6V and the power consumption is 29.7 mW. This TFT module Brightness is from 400 ~ 500 cd/m2. Operating temperatures from -20 °C to +70 °C;  storage temperature ranges from -30 °C to +80 °C.

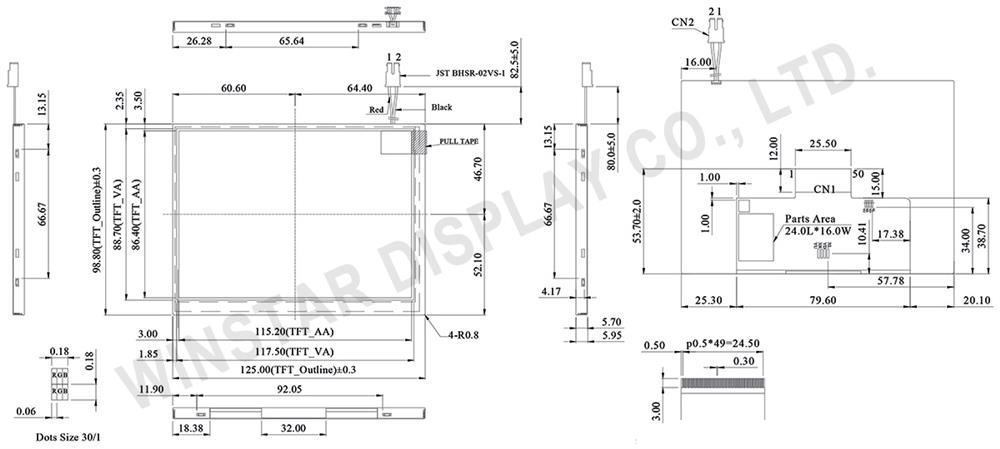

DRAWING

640x480 TFT Color LCD Display 5.7 - WF57FTLAFDNN0 - Winstar



SPECIFICATIONS



Interface

PinSymbolFunction
1 DGND Ground for digital circuit
2 VCC Power Supply : +3.3V
3 VCC Power Supply : +3.3V
4 DGND Ground for digital circuit
5 VGL Gate off power
6 DGND Ground for digital circuit
7 VGH Gate on power
8 DGND Ground for digital circuit
9 UD Up/down selection
10 LR Left /right selection
11 SPENA Chip select
12 SPCK Serial Clock
13 SPDA Serial Data
14 NC No connect
15 DGND Ground for digital circuit
16~21 B5~B0 Blue Data bus
22 NC(TOP) No connection
23 NC(RIGHT) No connection
24 DGND Ground for digital circuit
25~30 G5~G0 Green Data bit
31 NC(BOTTOM) No connection
32 NC(LEFT) No connection
33 AGND Ground
34~35 AVDD Analog power: 10V
36 AGND Ground
37~42 R5~R0 Red Data bit
43~44 DGND Ground for digital circuit
45 DE Data Enable input
46 CLK Data Clock
47 HS Horizontal sync input
48 VS Vertical sync input
49 VCOM VCOM driving input
50 DGND Ground for digital circuit



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 × RGB × 480(TFT) dots
Module dimension 125.0 × 98.8 × 5.95 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.06 × 0.18 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC - － 9 － mA
Power Consumption - - － 29.7 － mW
Power Supply for Analog AVDD AVDD-AGND 10.5   11 V
Input Voltage VIH H Level 0.7VCC － VCC V
VIL L Level 0 － 0.3VCC V
Recommended LCD
Driving Voltage for
25℃		 VGH (Note) 13 16 17 V
VGL -8 -7 -6 V
VCOM 3.97 4.02 4.07 V


SKU: WF57-640480FD#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€81.70
€73.50
€59.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€81.70 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



Winstar Display standard TFT module is featured with VGA 640x480 resolution. This display has the outline dimension of 125.0 x 98.8 x 5.95 mm (without FPC) and Active Area size of 115.2 x 86.4 mm. The display is available with Capacitive Touch Panel and Resistive Touch Panel options.

5.7 inch TFT Panel is RBG interface; 6 o'clock view direction and gray scale inversion direction 12 o'clock and the panel aspect ratio is 4:3. The supply voltage range for LCM (VCC) is from 3.0V to 3.6V and the power consumption is 29.7 mW. This TFT module Brightness is from 400 ~ 500 cd/m2. Operating temperatures from -20 °C to +70 °C;  storage temperature ranges from -30 °C to +80 °C.



DRAWING

640x480 TFT Color LCD Display 5.7 - WF57FTLAFDNN0 - Winstar



SPECIFICATIONS



Interface

PinSymbolFunction
1 DGND Ground for digital circuit
2 VCC Power Supply : +3.3V
3 VCC Power Supply : +3.3V
4 DGND Ground for digital circuit
5 VGL Gate off power
6 DGND Ground for digital circuit
7 VGH Gate on power
8 DGND Ground for digital circuit
9 UD Up/down selection
10 LR Left /right selection
11 SPENA Chip select
12 SPCK Serial Clock
13 SPDA Serial Data
14 NC No connect
15 DGND Ground for digital circuit
16~21 B5~B0 Blue Data bus
22 NC(TOP) No connection
23 NC(RIGHT) No connection
24 DGND Ground for digital circuit
25~30 G5~G0 Green Data bit
31 NC(BOTTOM) No connection
32 NC(LEFT) No connection
33 AGND Ground
34~35 AVDD Analog power: 10V
36 AGND Ground
37~42 R5~R0 Red Data bit
43~44 DGND Ground for digital circuit
45 DE Data Enable input
46 CLK Data Clock
47 HS Horizontal sync input
48 VS Vertical sync input
49 VCOM VCOM driving input
50 DGND Ground for digital circuit



General Specifications

ItemDimensionUnit
Size 5.7 inch
Dot Matrix 640 × RGB × 480(TFT) dots
Module dimension 125.0 × 98.8 × 5.95 mm
Active area 115.2 × 86.4 mm
Dot pitch 0.06 × 0.18 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For LCM VCC － 3.0 3.3 3.6 V
Supply Current For LCM ICC - － 9 － mA
Power Consumption - - － 29.7 － mW
Power Supply for Analog AVDD AVDD-AGND 10.5   11 V
Input Voltage VIH H Level 0.7VCC － VCC V
VIL L Level 0 － 0.3VCC V
Recommended LCD
Driving Voltage for
25℃		 VGH (Note) 13 16 17 V
VGL -8 -7 -6 V
VCOM 3.97 4.02 4.07 V


Products specifications
Brand Winstar
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
