    WF50-800480FL#BPW3-FC

    TFT 5" 800x480 LCD Panel, Interface LVDS, 400cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)
    Manufacturer: Winstar
    SKU: WF50-800480FL#BPW3-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €45.10
    €40.60
    €38.20

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €45.10 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected]



    DESCRIPTION

    WF50-800480FL#BPW3-FC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uese amorphous silicon TFT as a swtching device. This TFT LCD has a 5.0 inch diagonally measured active display area with 800x480 (800 horizontal by 480 vertical pixel) resolution. This module is built in with ST7262 driver IC and supports LVDS interface. Contrast ratio 1,000:1 (typical value) and brightness 400 nits (typical value).

    This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 5:3, normally black, transmissive LCD type, glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



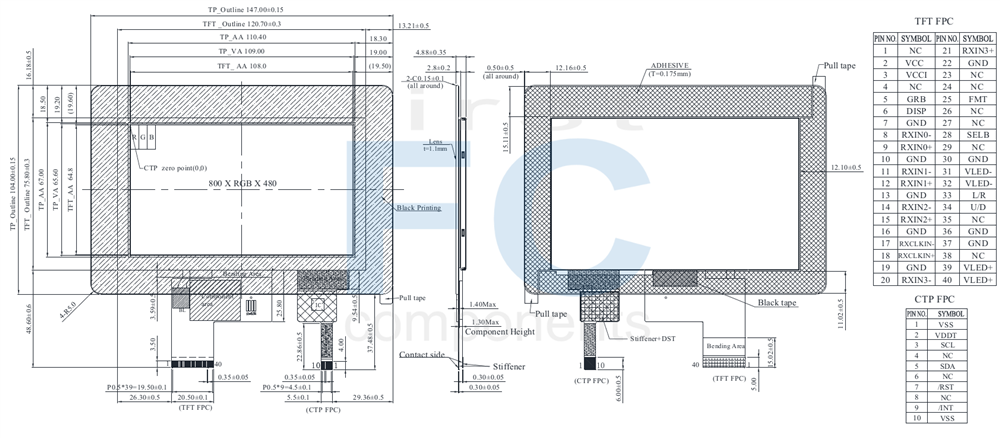

    DRAWING



    SPECIFICATIONS

    Interface

    PinSymbolFunction
    1 NC No connection
    2 VCC Power voltage
    3 VCCI Power supply for digital I/O pins.
    4 NC No connection
    5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
    6 DISP Display on/off
    7 GND Power Ground
    8 RXIN0- LVDS input lane: RX0-/ RX0+ (RX0N/RX0P)
    9 RXIN0+
    10 GND Power Ground
    11 RXIN1- LVDS input lane: RX1-/ RX1+ (RX1N/RX1P)
    12 RXIN1+
    13 GND Power Ground
    14 RXIN2- LVDS input lane: RX2-/ RX2+ (RX2N/RX2P)
    15 RXIN2+
    16 GND Power Ground
    17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
    Input Pin Mapping Table. (DCLKN/DCLKP)
    18 RXCLKIN+
    19 GND Power Ground
    20 RXIN3- LVDS input lane: RX3-/ RX3+ (RX3N/RX3P)
    21 RXIN3+
    22 GND Power Ground
    23-24 NC No connection
    25 FMT

    FMT sets LVDS data format.

    L: VESA Mode (Default)

    H: JEIDA Mode

    26-27 NC No connection
    28 SELB

    SELB LVDS 3-/4- lane.

    L: 3-lane

    H: 4-lane (deafult)

    29 NC No connection
    30 GND Power Ground
    31-32 VLED- Power for LED backlight (Cathode)
    33 L/R

    Horizontal scand direction control pin.

    L: From right to left.

    H: From left to right (Default)

    34 U/D

    Vertical scan direction control pin.

    L: From down to up.

    H: From up to down. (Default)

    35 NC No connection
    36-37 GND Power Ground
    38 NC No connection
    39-40 VLED+ Power for LED backlight (Anode)



    General Specifications

    ItemDimensionUnit
    Size 5.0 inch
    Dot Matrix 800× 3(RGB) × 480 dots
    Module dimension 147.0(W) ×104.0(H) ×4.88 mm
    Active area 108(W) ×64.8 (H) mm mm
    Dot pitch 0.135(W) ×0.135(H) mm mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    Aspect Ratio 5:3
    Driver IC     ST7262 or equivalent
    Interface LVDS
    Backlight Type LED ,Normally White
    CTP IC GT911 or equivalent
    CTP Interface I2C
    CTP FW Version 65
    CTP Resolution 800*480

    With/Without TP

    With CTP
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Typical Operation Conditions

    ItemSymbolValuesUnit
    Min.Typ.Max.
    Power voltage VCC 3.1 3.3 3.6 V
    Power voltage VCCI 3.1 3.3 3.6 V
    Current for Driver(Black) ICC - 67.6 102 mA
    Supply CTP VDDT 2.8 - 3.3 V
    ICTP - 15 22.5 mA
    Products specifications
    Size 5"
    Resolution 800x480
    Active Area (mm) 108.00x64.80
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller GT911
    Preferred - Not Preferred Preferred
    Date Notice Link/Description
    2026/08/17 PCN Winstar TFT Series WF50-800480F and WFN0460B2 for Sitronix IC ST7262 EOL



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
