    WF50-800480FD#BPW3-FC

    TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC, Black free board)
    Manufacturer: Winstar
    SKU: WF50-800480FD#BPW3-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €45.10
    €40.60
    €38.20

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €45.10 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected]



    DESCRIPTION

    The WF50-800480FD#BPW3-FC is a 5-inch TFT LCD module with a resolution of 800 × 480 pixels and an aspect ratio of 5:3. This TFT module is equipped with a projected capacitive touch screen and adopts IPS display technology, providing wider viewing angles of 80 degrees in all directions (left, right, up, and down). It features a built-in ST7262 driver IC and supports a 24-bit RGB interface.

    The module's dimensions are 147 × 104 mm, with an active area size of 108 × 64.8 mm. It includes a projected capacitive touch panel (PCAP) with a GT911 driver IC, supporting I2C interfaces and 5-point touch functionality. The power supply voltage ranges from 3.1V to 3.6V, with a typical value of 3.3V.

    This module is designed to operate within a wide temperature range: from -30℃ to +80℃ for both operating and storage conditions. It has a contrast ratio of 1,000:1 (typical value) and a brightness of 400 nits (typical value).

    The 5-inch display module is suitable for use in control panels for white goods, industrial control systems, audio equipment, and home security systems.

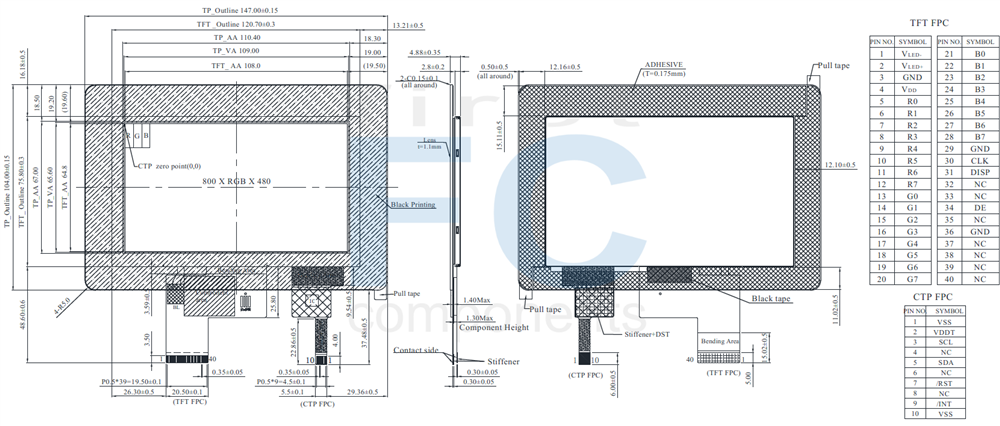

    DRAWING



    SPECIFICATIONS

    Interface

    LCM PIN Definition

    PinSymbolFunction
    1 VLED- Power for LED backlight (Cathode)
    2 VLED+ Power for LED backlight (Anode)
    3 GND Power Ground
    4 VDD Power voltage
    5 R0 Red data (LSB)
    6 R1 Red data
    7 R2 Red data
    8 R3 Red data
    9 R4 Red data
    10 R5 Red data
    11 R6 Red data
    12 R7 Red data(MSB)
    13 G0 Green data(LSB)
    14 G1 Green data
    15 G2 Green data
    16 G3 Green data
    17 G4 Green data
    18 G5 Green data
    19 G6 Green data
    20 G7 Green data(MSB)
    21 B0 Blue data(LSB)
    22 B1 Blue data
    23 B2 Blue data
    24 B3 Blue data
    25 B4 Blue data
    26 B5 Blue data
    27 B6 Blue data
    28 B7 Blue data(MSB)
    29 GND Power Ground
    30 CLK Sample clock(DCLK)
    31 DISP Display on/off
    32 NC No connection
    33 NC No connection
    34 DE Data input enable
    35 NC No connection
    36 GND Power Ground
    37 NC No connection
    38 NC No connection
    39 NC No connection
    40 NC No connection


    PCAP PIN Definition

    PinSymbolFunction
    1 VSS Ground for analog circuit
    2 VDDT Power Supply : +3.0V
    3 SCL I2C clock input I2C clock input
    4 NC No connect
    5 SDA I2C data input and output
    6 NC No connect
    7 /RST External Reset, Low is active
    8 NC No connect
    9 /INT External interrupt to the host
    10 VSS Ground for analog circuit



    General Specifications

    ItemDimensionUnit
    Size 5.0 inch
    Dot Matrix 800 × 3(RGB) × 480 dots
    Module dimension 147.0(W) × 104.0(H) × 4.88 mm
    Active area 108(W) × 64.8(H) mm
    Dot pitch 0.135(W) × 0.135(H) mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    Aspect Ratio 5:3
    Driver IC ST7262 or equivalent
    TFT Interface 24-bit RGB
    Backlight Type LED, Normally White
    PCAP IC GT911 or equivalent
    PCAP Interface I2C
    PCAP FW Version 65
    PCAP Resolution 800*480
    Touch Screen Projected Capacitive Touch Screen
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolValuesUnit
    MinTypMax
    Power voltage VDD 3.1 3.3 3.6 V
    Current for Driver (Black) IDD - 65 97.5 mA
    Input logic high voltage VIH 0.7 VDD - VDD V
    Input logic low voltage VIL 0 - 0.3 VDD
    Supply PCAP VDDT 2.8 - 3.3 V
    ICTP - 15 22.5 mA
    Products specifications
    Size 5"
    Resolution 800x480
    Active Area (mm) 108.00x64.80
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller GT911
    Preferred - Not Preferred Preferred
    Date Notice Link/Description
    2026/08/17 PCN Winstar TFT Series WF50-800480F and WFN0460B2 for Sitronix IC ST7262 EOL



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
