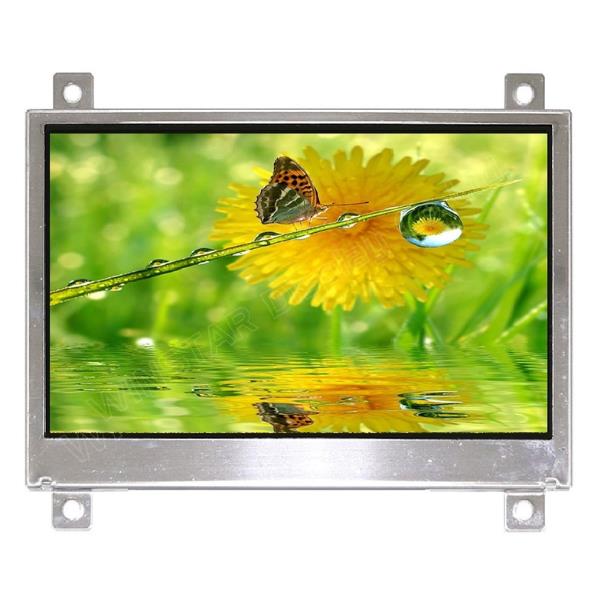

WF43TTVGEDNN0#

TFT 4.3" 480x272 LCD Panel, Interface RGB, 500cd/m², Wide view angle (IPS), Super Extended Temperature, Frame, No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

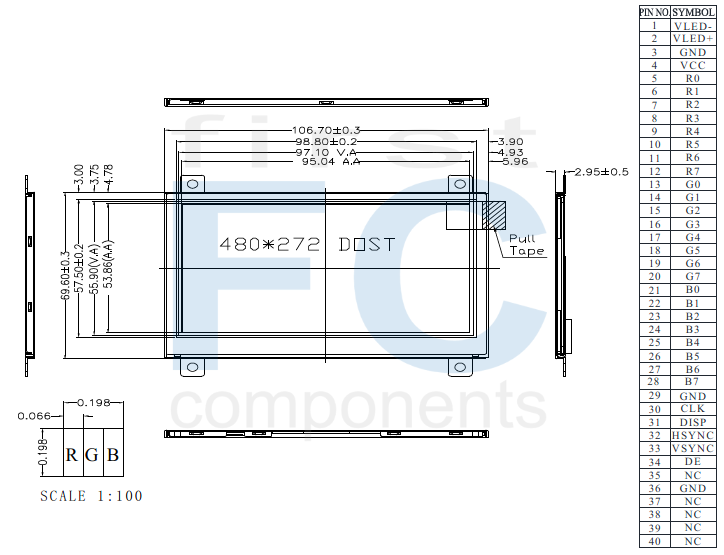

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock
31	DISP	Display on/off
32	HSYNC	Horizontal sync singal; negative polarity
33	VSYNC	Vertical sync singal; negative polarity
34	DE	Data Enable
35	NC	No conncetion
36	GND	Power ground
37	NC	No conncetion
38	NC	No conncetion
39	NC	No conncetion
40	NC	No conncetion

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272(TFT)	dots
Module dimension	106.5(W) × 67.2(H) × 3.85(D)	mm
Active area	95.04 × 53.86	mm
Dot pitch	0.066 × 0.198	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	Wide View
Backlight Type	LED, Normally White
With/Without TP	Without TP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics
Operating conditions:

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	-	3.0	3.3	3.6	V
Digital operation current	ICC	-		17	25	mA

SKU: WF43-480272TD#0W4-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€39.20

€31.30

€29.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€39.20 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock
31	DISP	Display on/off
32	HSYNC	Horizontal sync singal; negative polarity
33	VSYNC	Vertical sync singal; negative polarity
34	DE	Data Enable
35	NC	No conncetion
36	GND	Power ground
37	NC	No conncetion
38	NC	No conncetion
39	NC	No conncetion
40	NC	No conncetion

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272(TFT)	dots
Module dimension	106.5(W) × 67.2(H) × 3.85(D)	mm
Active area	95.04 × 53.86	mm
Dot pitch	0.066 × 0.198	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	Wide View
Backlight Type	LED, Normally White
With/Without TP	Without TP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics
Operating conditions:

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VCC	-	3.0	3.3	3.6	V
Digital operation current	ICC	-		17	25	mA

Products specifications

Brand	Winstar
Size	4.3"
Resolution	480x272
Active Area (mm)	95.04x53.86
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-30~80
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
