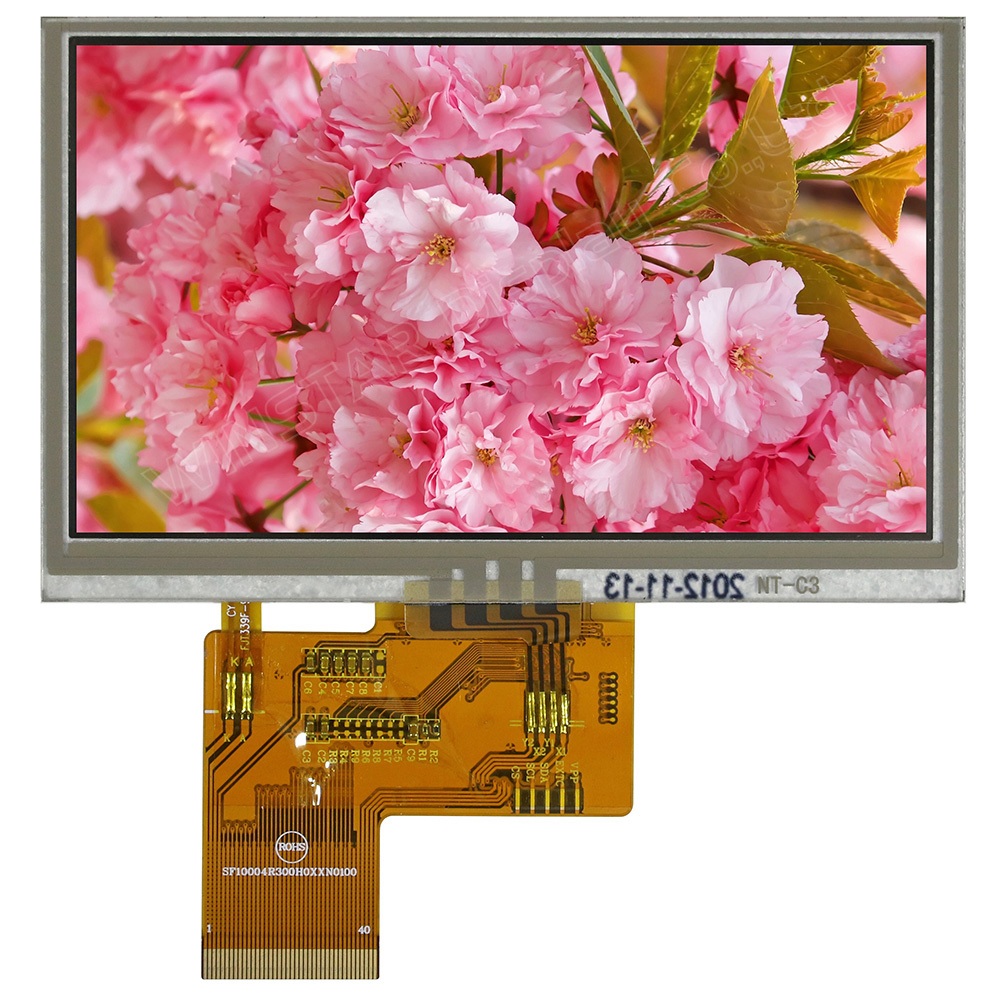

    TFT 4.3" 480x272 LCD Panel, Interface RGB, High Brightness 700cd/m², Wide View Angle (IPS), Super Extended Temperature, Resistive touch panel, Default HSYNC-VSYNC
    Manufacturer: Winstar
    SKU: WF43-480272WD#0SPW1-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €31.80
    €28.60
    €26.90

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €31.80 excl tax
    i h

    DESCRIPTION



    High Brightness 4.3 inch wide view angle IPS TFT LCD module 480x272 pixels with Resistive touch panel. This TFT model is built in with SC7283 driver IC, it supports 24-bit RGB interface, brightness 700 nits (typical value).

    This 4.3” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for LCM (VCC) is from 3.0V to 3.6V, Glare surface glass, aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



    DRAWING

    INTERFACE

    PinSymbolFunction
    1 LED- Power for LED backlight cathode
    2 LED+ Power for LED backlight anode
    3 GND Power ground
    4 VCC Power voltage
    5 R0 Red data
    6 R1 Red data
    7 R2 Red data
    8 R3 Red data
    9 R4 Red data
    10 R5 Red data
    11 R6 Red data
    12 R7 Red data
    13 G0 Green data
    14 G1 Green data
    15 G2 Green data
    16 G3 Green data
    17 G4 Green data
    18 G5 Green data
    19 G6 Green data
    20 G7 Green data
    21 B0 Blue data
    22 B1 Blue data
    23 B2 Blue data
    24 B3 Blue data
    25 B4 Blue data
    26 B5 Blue data
    27 B6 Blue data
    28 B7 Blue data
    29 GND Power ground
    30 CLK Pixel clock input pin
    31 DISP DISP sets the display mode.
    VDLKPOLFunction Description
    L VSYNC polarity: positive
    H YSNC polarity: negative
    32 HSYNC Horizontal sync signal, default is negative polarity.
    33 VSYNC Vertical sync signal, default is negative polarity.
    34 DE Data input enable.
    35 NC No connection
    36 GND Power ground
    37 XR Right electrode
    38 YD Dowm electrode
    39 XL Left electrode
    40 YU Top electrode
    Products specifications
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
