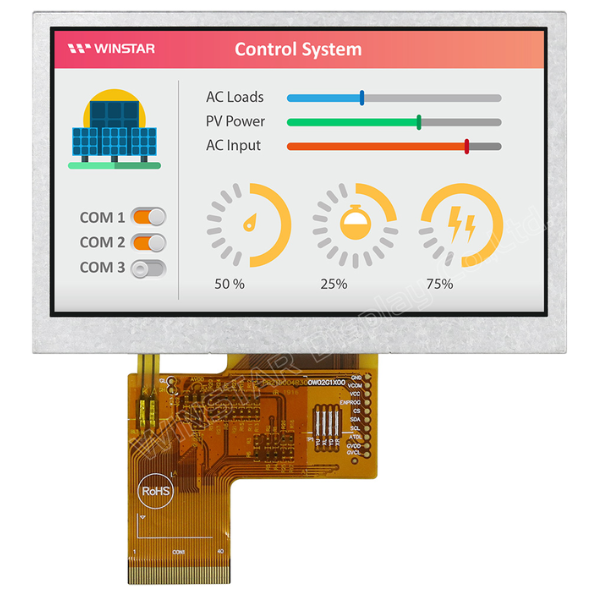

TFT 4.3" 480x272 LCD Panel, Interface RGB, High Brightness 1000cd/m², IPS, Super extended temperature, No touch

Manufacturer: Winstar

SKU: WF43-480272A3D#0SPW0-FC

Accessory kit

Display Connector

PRICE BREAKS

Quantity

10+

Price

€20.80

€18.70

€17.60

For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

Availability: In stock

€20.80 excl tax

Qty:

i h

Overview
Specifications
Contact Us

DESCRIPTION

TFT 4.3" is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The module has a 4.28 inch diagonally measured active area with 480x272 resolutions (480 horizontal by 272 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.

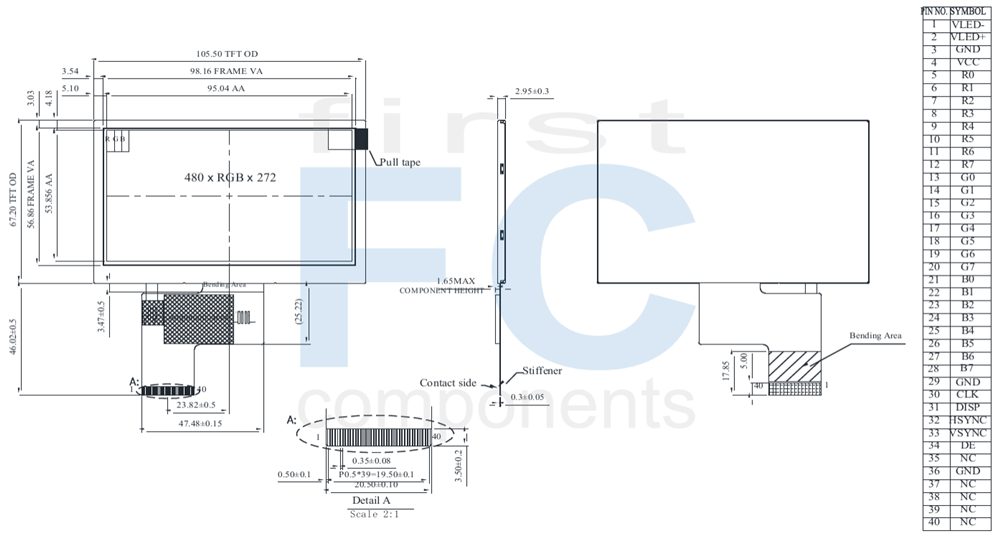

DRAWING

SPECIFICATIONS

Interface

Symbol

Function

VLED-

Power for LED backlight cathode

VLED+

Power for LED backlight anode

GND

Power ground

VCC

Power voltage

Red data

Green data

Blue data

GND

Power ground

CLK

Pixel clock input pin (DCLK)

DISP

DISP sets the display mode.

DISP	Function Description
L	Standby mode
H	Normal display mode

HSYNC

Horizontal sync signal, default is negative polarity

VSYNC

Vertical sync signal, defualt is negative polarity

Data input enable

No connection

GND

Power ground

No connection

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272 (TFT)	dots
Module dimension	105.5(W) × 67.2(H) × 2.95(D)	mm
Active area	95.04 × 53.856	mm
Pixel pitch	0.198 × 0.198	mm
LCD type	TFT, Normally Black, Transmissive
Viewing Angle	85/85/85/85
Aspect Ratio	16:9
TFT Driver IC	NV3047E or equivalent
TFT Interface	24-bit RGB
Backlight Type	LED, Normally White
With/Without TP	Without TP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+85	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	3.0	3.3	3.6	V
Supply Current For LCM	ICC	-	25	40	mA

Products specifications

Size	4.3"
Resolution	480x272
Active Area (mm)	95.04x53.85
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-30~80
Data Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
