    WF70-800480A9D#0PW0-FC

    Be the first to review this product

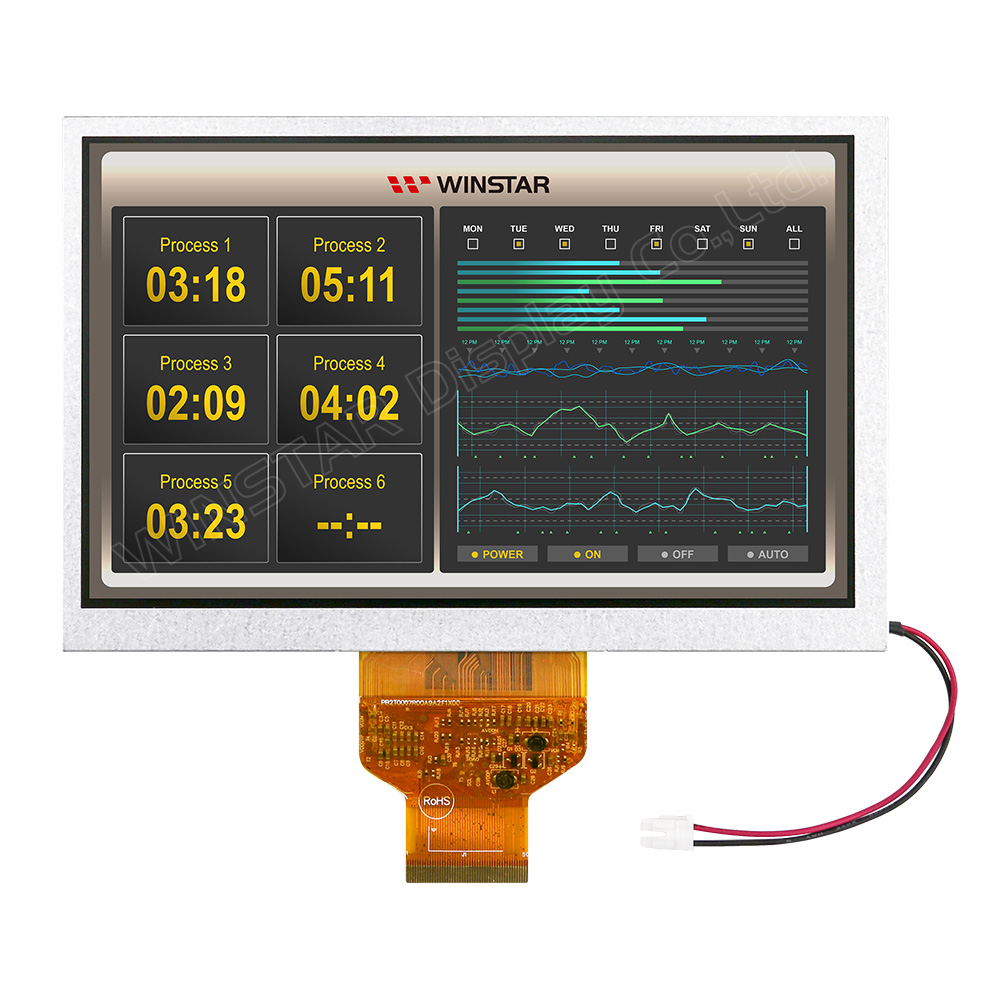

    TFT 7" 800x480 LCD Panel, Interface RGB (50pin), 500cd/m², Wide View Angle (IPS) Square pixels, Super extended Temperature, No touch
    Manufacturer: Winstar
    SKU: WF70-800480A9D#0PW0-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €71.50
    €64.40
    €60.50

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €71.50 excl tax
    i h

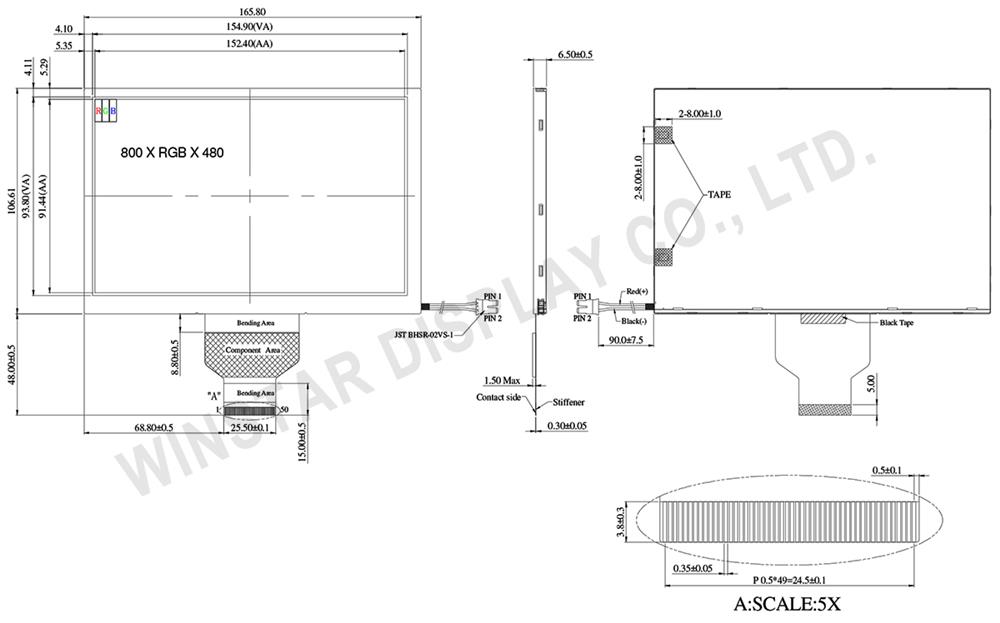

    DRAWING





    SPECIFICATIONS



    Interface

    LCM PIN Definition

    PinSymbolFunction
    1-4 NC No connection
    5 GND Power Ground
    6 NC No connection
    7 VCC Power voltage
    8 NC
    (MODE)    		 Input timing mode selection. Effective when FCS=1.
    MODEFunctionNote
    0 DE only -
    1 HS+VS Default
    9 DE Data enable signal for TTL mode.
    10 VS Vertical sync input
    11 HS Horizontal sync input
    12 B7 Blue data(MSB)
    13 B6 Blue data
    14 B5 Blue data
    15 B4 Blue data
    16 B3 Blue data
    17 B2 Blue data
    18 B1 Blue data
    19 B0 Blue data(LSB)
    20 G7 Green data(MSB)
    21 G6 Green data
    22 G5 Green data
    23 G4 Green data
    24 G3 Green data
    25 G2 Green data
    26 G1 Green data
    27 G0 Green data(LSB)
    28 R7 Red data(MSB)
    29 R6 Red data
    30 R5 Red data
    31 R4 Red data
    32 R3 Red data
    33 R2 Red data
    34 R1 Red data
    35 R0 Red data (LSB)
    36 GND Power Ground
    37 DCLK Sample clock
    38 GND Power Ground
    39  NC
    (L/R)    		 Horizontal shift direction (source output) selection. Effective when FCS=1.
    L/RSource output sequence and data orderNote
    1 SOUT1→SOUT2→ …→ SOUT2400 Default
    0 SOUT2400→SOUT2399→ …→ SOUT1 -
    40  NC
    (U/D)    		 Vertical shift direction (gate output) selection. Effective when FCS=1.
    U/DFunctionNote
    1 Top→bottom Default
    0 Bottom→top -
    41 NC No connection
    42 NC No connection
    43 NC No connection
    44 RESET Reset pin. The chip is in reset state when RESETB=0.
    45 NC No connection
    46 NC No connection
    47 DITHB STBYB Standby mode setting pin. The chip is in standby mode when STBYB=0.
    48 GND Power Ground
    49 NC No connection
    50 NC No connection




    Backlight PIN Definition

    PinSymbolDescription
    1 VLED+ Red, LED_ Anode
    2 VLED- Black, LED_ Cathode



    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 800 x RGB x 480(TFT) dots
    Module dimension 165.8 (W) x 106.61 (H) x 6.5(D) mm
    Active area 152.40 x 91.44 mm
    Pixel pitch 0.1905 x 0.1905 mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    TFT Interface 24-bit RGB
    TFT Driver IC HX8249-A + HX8678-C or Equivalent
    Aspect Ratio 15:9
    Backlight Type LED, Normally White
    Touch Panel Without Touch Panel
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 － +80 ℃
    Storage Temperature TST -30 － +80 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Supply Voltage Vcc 2.7 3.3 3.6 V
    Current of power supply IDD － 101 150 mA
    Products specifications
    Size 7"
    Resolution 800x480
    Active Area (mm) 152.40x91.44
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 50
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
