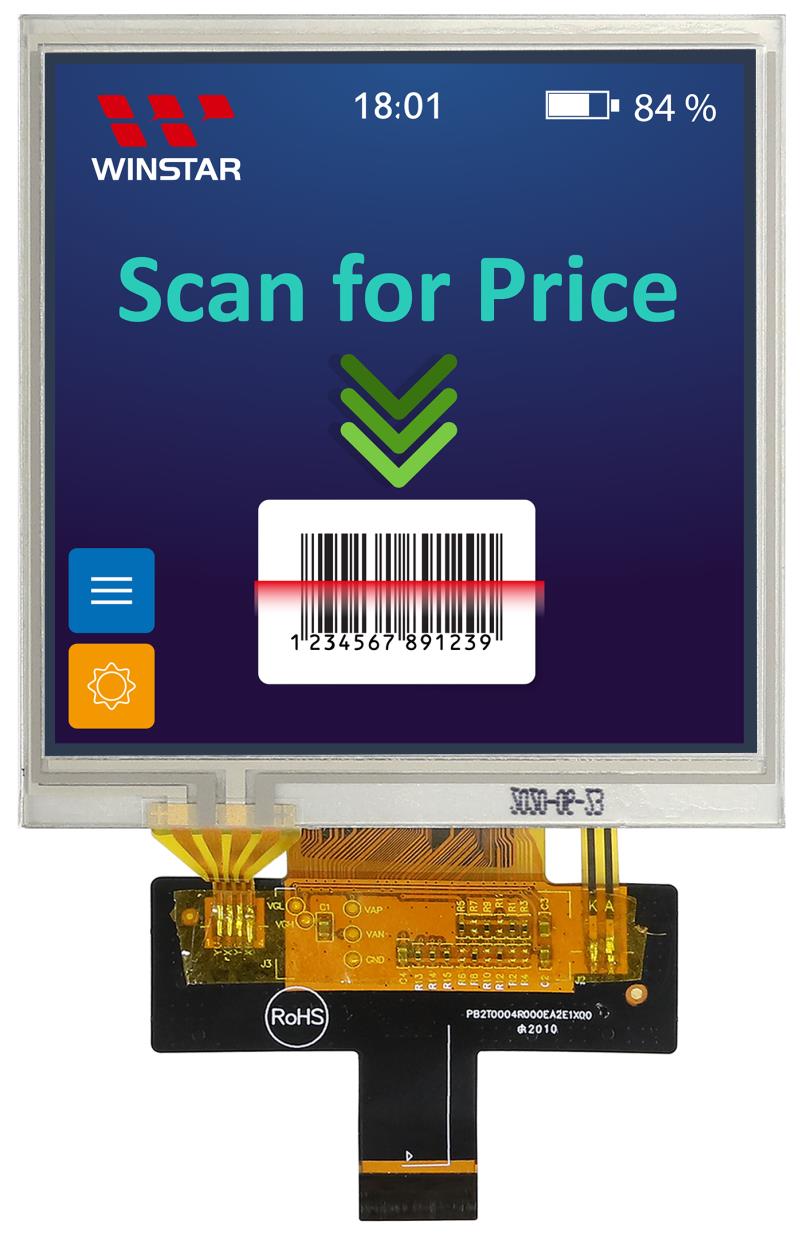

    WF40-480480EM#0SPW1-FC

    TFT 4" 480x480 Square LCD Panel, Interface MIPI DSI IC ST7701S, High Brightness 700cd/m², Wide View Angle (IPS), Super extended temperature, Resistive touch panel
    Manufacturer: Winstar
    SKU: WF40-480480EM#0SPW1-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €32.20
    €29.00
    €27.30

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €32.20 excl tax
    i h

    DESCRIPTION

    4 inch Square IPS TFT-LCD display module with resistive touch panel; made of resolution 480 x 480 pixels. This module supports MIPI DSI Serial interface (2 lanes), it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 700 nits (typical value), glare surface panel, aspect ration 1:1.

    This 4 inch MIPI LCD display integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. Operating temperature from -30℃ to +80℃; storage temperature range from -30℃ to +80℃.

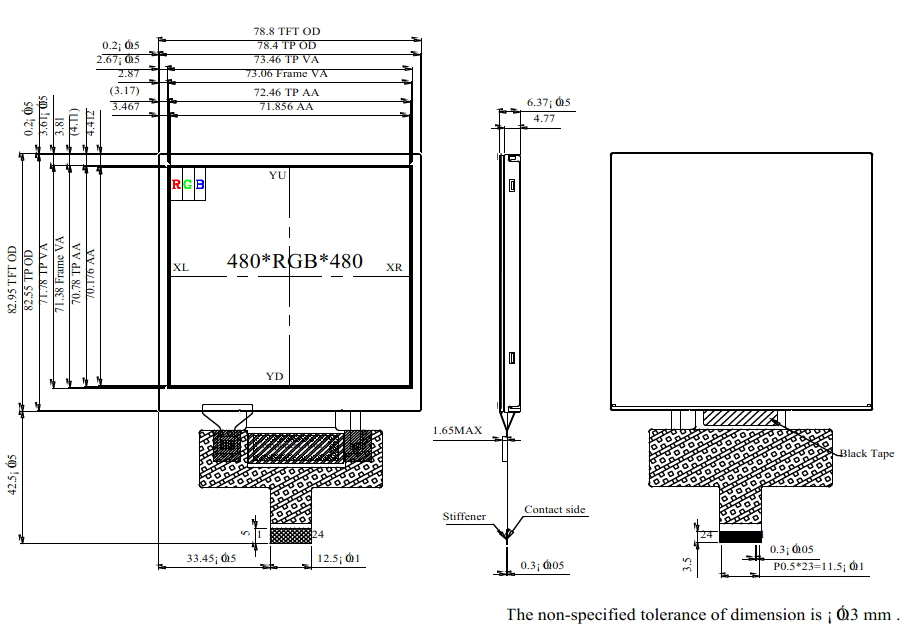

    DRAWING





    SPECIFICATIONS



    Interface

    LCM PIN Definition

    PinSymbolFunction
    1 GND Power ground
    2 YU Top electrode
    3 XL Left Electrode
    4 YD Bottom Electrode
    5 XR Right Electrode
    6 GND Power ground
    7 D0N MIPI DSI differential data pair (Data lane 0)
    8 D0P
    9 GND Power ground
    10 CLK_N MIPI DSI differential clock pair
    11 CLK_P
    12 GND Power ground
    13 D1N MIPI DSI differential data pair(Data lane 1)
    14 D1P
    15 GND Power ground
    16 IOVCC I/O and interface power supply (1.8V)
    17 RESET Reset input
    18 TE Tearing effect output pin.
    19 VCI Analog power supply
    20 VCI Analog power supply
    21 NC No connect
    22 VLED- Power for LED backlight cathode
    23 VLED+ Power for LED backlight anode
    24 GND Power ground



    General Specifications

    ItemDimensionUnit
    Size 4.0 inch
    Dot Matrix 480 × 3(RGB) × 480 dots
    Module dimension 78.8(H) × 82.95 (W) × 4.77 mm
    Active area 71.856(H) × 70.176 (V) mm
    Dot pitch 0.1497(H) × 0.1462(V) mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    Aspect Ratio 1:1
    Interface 2-Lanes MIPI
    Driver IC ST7701S
    Backlight Type LED, Normally White
    Touch Panel Resistive touch panel
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Products specifications
    Size 4"
    Resolution 480x480
    Active Area (mm) 71.85x70.17
    Color Full Color
    Display Interface MIPI
    Display IC ST7701S
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 24
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
