WF35-320240RD#B01-FC

TFT 3.5" 320x240 LCD Panel, Interface MCU (RGB/Parallel/SPI) IC SSD2119, 250cd/m², Resistive touch panel

MOQ

After sample PO, MP MOQ 3000pcs



DESCRIPTION



3.5 inch TFT-LCD module with resolution QVGA 320x240 pixels. This module is built in with SSD2119 IC; it includes the controller and driver IC functions, supports RGB, SPI, MCU interface, supply voltage (VCI) range from 2.5V to 3.6V. This module is having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 4:3. Resitive touch panel version.

It is landscape mode with brightness 400 nits (typical value). Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.

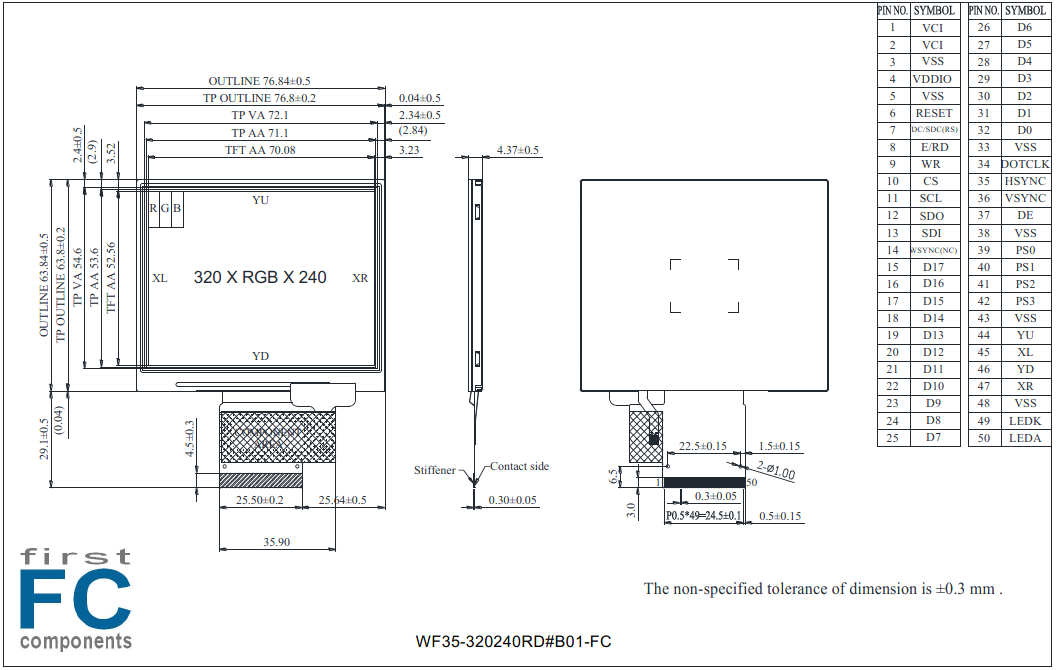

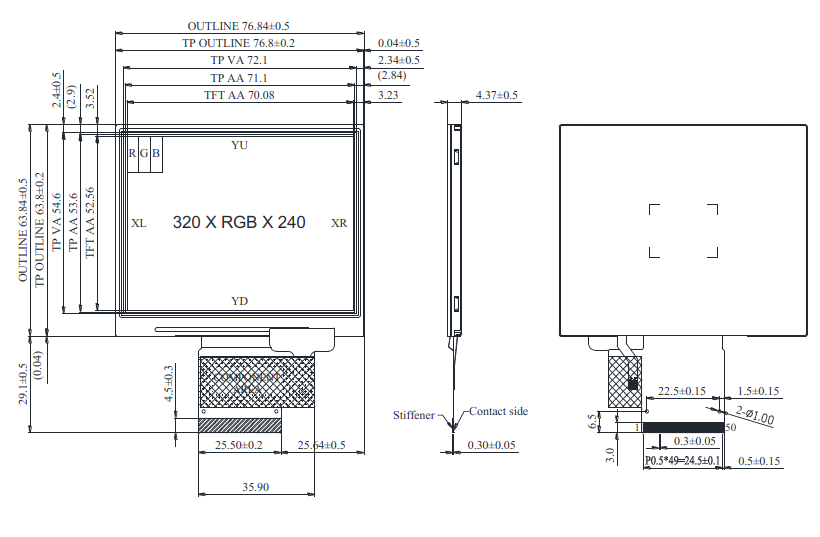

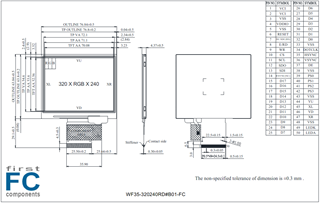

DRAWING



INTERFACE



No.SymbolDescription
1 VCI Booster input voltage pin
2 VCI Booster input voltage pin
3 VSS Ground
4 VDDIO Voltage input pin for logic
5 VSS Ground
6 RESET Reset Signal pin (“Low” is enable)
7 DC/SDC Data or Command select PIN.
8 E/RD 6800 system: E(enable signal)
8080 system : RD(read strobe signal)
Serial mode: Not use and should be connected to VDDIO or VSS
9 WR 6800 system : RW (indicates read cycle when high ,write cycle when low)
8080 system : WR (write strobe signal)
10 CS Chip select
11 SCL Serial Clock.
12 SD0 Serial Data output
13 SDI Serial Data Input
14 WSYNC Ram write synchronization output. Leave it OPEN when not used.
15~32 D17~D0 Data bus
33 VSS Ground
34 DOTCLK Dot-clock signal and oscillator source
35 HSYNC Line Synchronous Signal
36 VSYNC Frame Synchronous Signal
37 DE Display enable pin for controller
38 VSS Ground
39~42 PS0~PS3 Interface select PIN
43 VSS Ground
44 YU Top electrode
45 XL Left electrode
46 YD Bottom electrode
47 XR Right electrode
48 VSS Ground
49 LEDK Backlight LED Cathode
50 LEDA Backlight LED Anode.
SKU: WF35-320240RD#B01-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€38.20
€30.60
€25.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€38.20 excl tax

MOQ

After sample PO, MP MOQ 3000pcs



DESCRIPTION



3.5 inch TFT-LCD module with resolution QVGA 320x240 pixels. This module is built in with SSD2119 IC; it includes the controller and driver IC functions, supports RGB, SPI, MCU interface, supply voltage (VCI) range from 2.5V to 3.6V. This module is having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and aspect ratio 4:3. Resitive touch panel version.

It is landscape mode with brightness 400 nits (typical value). Operating temperatures from -20℃ to +70℃; storage temperatures from -30℃ to +80℃.



DRAWING



INTERFACE



No.SymbolDescription
1 VCI Booster input voltage pin
2 VCI Booster input voltage pin
3 VSS Ground
4 VDDIO Voltage input pin for logic
5 VSS Ground
6 RESET Reset Signal pin (“Low” is enable)
7 DC/SDC Data or Command select PIN.
8 E/RD 6800 system: E(enable signal)
8080 system : RD(read strobe signal)
Serial mode: Not use and should be connected to VDDIO or VSS
9 WR 6800 system : RW (indicates read cycle when high ,write cycle when low)
8080 system : WR (write strobe signal)
10 CS Chip select
11 SCL Serial Clock.
12 SD0 Serial Data output
13 SDI Serial Data Input
14 WSYNC Ram write synchronization output. Leave it OPEN when not used.
15~32 D17~D0 Data bus
33 VSS Ground
34 DOTCLK Dot-clock signal and oscillator source
35 HSYNC Line Synchronous Signal
36 VSYNC Frame Synchronous Signal
37 DE Display enable pin for controller
38 VSS Ground
39~42 PS0~PS3 Interface select PIN
43 VSS Ground
44 YU Top electrode
45 XL Left electrode
46 YD Bottom electrode
47 XR Right electrode
48 VSS Ground
49 LEDK Backlight LED Cathode
50 LEDA Backlight LED Anode.
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface MCU (RGB/Parallel/SPI)
Display IC SSD2119
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface MCU (RGB/Parallel/SPI)
Display IC SSD2119
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products
Picture of CNK5231XXXXXXXXXXX00

CNK5231XXXXXXXXXXX00

ZIF Connector 50 pins, 0.5mm pitch, Top contact
From €2.40 excl tax
Picture of CNK6231XXXXXXXXXXX00

CNK6231XXXXXXXXXXX00

ZIF Connector 50 pins, 0.5mm pitch, Bottom contact
From €2.40 excl tax
Picture of WF35-320240RD#B00-FC

WF35-320240RD#B00-FC

TFT 3.5" 320x240 LCD Panel, Interface MCU (RGB/Parallel/SPI) IC SSD2119, 400cd/m², No touch
From €21.70 excl tax
Picture of TST0003R5I1241XXXX05

TST0003R5I1241XXXX05

Resistive Touch panel 3.5", O.D. 63.8x76.80mm, 4w, Film-Glass structure, Soldering FPC (suitable for WST WFL/M/P/Q/R/Y families)
From €7.40 excl tax
Picture of WWTFTDEMO35R-02#

WWTFTDEMO35R-02#

Evaluation kit for TFT WF35R panel with/without RTP. The kit includes: PIC24 MCU board + adapter board + LED drive board + Power adapter 5V 1A (LCD module NOT included)
€57.50 excl tax
