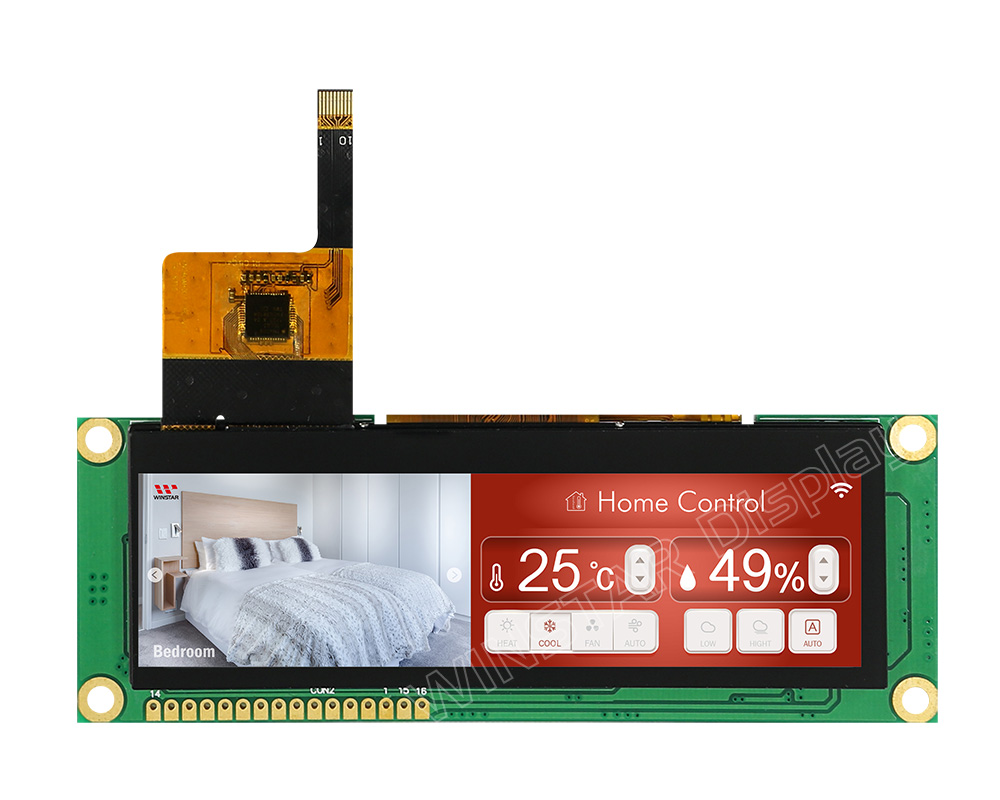

WF39-480128QD#007-FC

TFT 3.9" 480x128, Bar Type, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8/16bit), 400cd/m², View direction 6H, Frame, Capacitive touch panel I2C interface (GG)

DESCRIPTION

Extended model of 3.9" Bar TFT-LCD display built in with SSD1963 controller board plus a 36 pin-out connector which we called Winstar Q series Family. This model is featured with resolution 480x128 pixels and having projected capacitive touch screen (PCAP) on module, it supports digital 8080 family MPU 8bit/16bit interface (MCU interface). The capacitive touch panel IC is CYTMA568 or equivalent. Also, we already defined pin no. 33 ~ 36 as backlight supply on this SSD1963 controller board; therefore, there is no need to design extra backlight circuit. It is a color TFT module with PCAP; its luminance is 400 nits; contrast ratio of 500:1. It is an ideal upgrade solution for monochrome STN WH1602L1 to color TFT display with touch screen since both two items have a similar outline dimension of 122.0 x 44.0 mm (PCB outline).

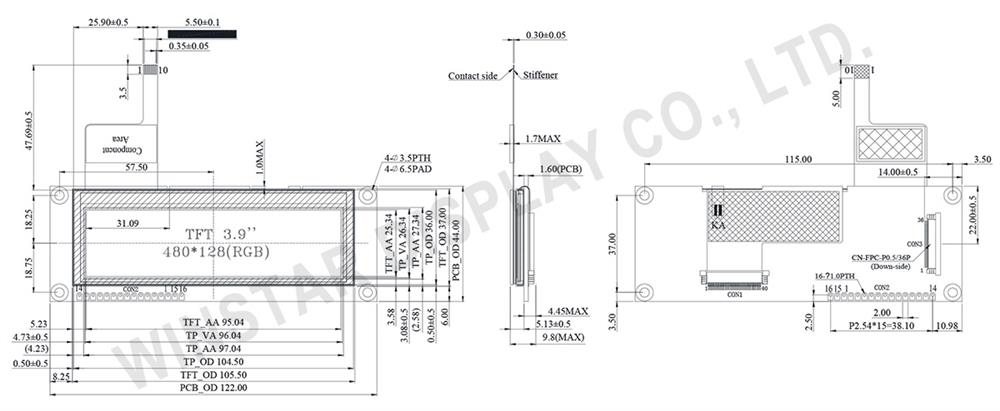

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits mode, this pin is NC)
16 DB9 Data bus (When select 8bits mode, this pin is NC)
17 DB10 Data bus (When select 8bits mode, this pin is NC)
18 DB11 Data bus (When select 8bits mode, this pin is NC)
19 DB12 Data bus (When select 8bits mode, this pin is NC)
20 DB13 Data bus (When select 8bits mode, this pin is NC)
21 DB14 Data bus (When select 8bits mode, this pin is NC)
22 DB15 Data bus (When select 8bits mode, this pin is NC)
23 NC No connect
24 NC No connect
25 CS Chip select
26 RESET Hardware reset
27 DISP_ON Display on/off control
28 NC No connect
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect
33 VLED- VLED- for B/L LED inverter (GND)
34 VLED- VLED- for B/L LED inverter (GND)
35 VLED+ VLED+ for B/L LED inverter (+5V)
36 VLED+ VLED+ for B/L LED inverter (+5V)



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock inputI2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × 128 × RGB (TFT) dots
Module dimension 122.0 × 44.0 × 9.8(max) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
TFT Driver IC SSD1963
TFT Interface Digital 8080 family MPU 8bit/16bit
PCAP IC CYTMA568 Or Equal
PCAP FW Version TBD
Backlight Type LED,Normally White
Color arrangement RGB-STRIPE
Touch Panel PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electronical Characteristics

Operating conditions: (CON3.Pin1=GND, Pin2=VDD)

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD 200 mA
Supply Voltage For CTP VDDT 2.8 3.3 V
Supply Current For CTP IDDT 35 mA

SKU: WF39-480128QD#007-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€70.70
€63.60
€52.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€70.70 excl tax

DESCRIPTION

Extended model of 3.9" Bar TFT-LCD display built in with SSD1963 controller board plus a 36 pin-out connector which we called Winstar Q series Family. This model is featured with resolution 480x128 pixels and having projected capacitive touch screen (PCAP) on module, it supports digital 8080 family MPU 8bit/16bit interface (MCU interface). The capacitive touch panel IC is CYTMA568 or equivalent. Also, we already defined pin no. 33 ~ 36 as backlight supply on this SSD1963 controller board; therefore, there is no need to design extra backlight circuit. It is a color TFT module with PCAP; its luminance is 400 nits; contrast ratio of 500:1. It is an ideal upgrade solution for monochrome STN WH1602L1 to color TFT display with touch screen since both two items have a similar outline dimension of 122.0 x 44.0 mm (PCB outline).



DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply : +3.3V
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 DB8 Data bus (When select 8bits mode, this pin is NC)
16 DB9 Data bus (When select 8bits mode, this pin is NC)
17 DB10 Data bus (When select 8bits mode, this pin is NC)
18 DB11 Data bus (When select 8bits mode, this pin is NC)
19 DB12 Data bus (When select 8bits mode, this pin is NC)
20 DB13 Data bus (When select 8bits mode, this pin is NC)
21 DB14 Data bus (When select 8bits mode, this pin is NC)
22 DB15 Data bus (When select 8bits mode, this pin is NC)
23 NC No connect
24 NC No connect
25 CS Chip select
26 RESET Hardware reset
27 DISP_ON Display on/off control
28 NC No connect
29 NC No connect
30 NC No connect
31 NC No connect
32 NC No connect
33 VLED- VLED- for B/L LED inverter (GND)
34 VLED- VLED- for B/L LED inverter (GND)
35 VLED+ VLED+ for B/L LED inverter (+5V)
36 VLED+ VLED+ for B/L LED inverter (+5V)



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock inputI2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 3.9 inch
Dot Matrix 480 × 128 × RGB (TFT) dots
Module dimension 122.0 × 44.0 × 9.8(max) mm
Active area 95.04 × 25.34 mm
Dot pitch 0.066(W) × 0.198(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio Bar Type
TFT Driver IC SSD1963
TFT Interface Digital 8080 family MPU 8bit/16bit
PCAP IC CYTMA568 Or Equal
PCAP FW Version TBD
Backlight Type LED,Normally White
Color arrangement RGB-STRIPE
Touch Panel PCAP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electronical Characteristics

Operating conditions: (CON3.Pin1=GND, Pin2=VDD)

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.1 3.3 V
Supply Current For LCM IDD 200 mA
Supply Voltage For CTP VDDT 2.8 3.3 V
Supply Current For CTP IDDT 35 mA

Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle TN
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Touch Panel IC Controller CYTMA568
Preferred - Not Preferred Preferred
