WF101-1024600JL#0SP1-FC

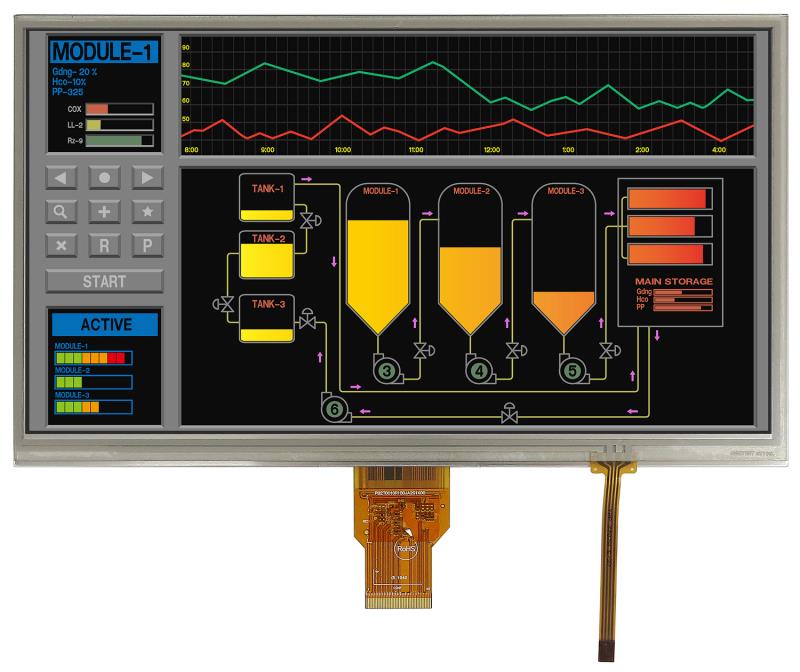

Picture of WF101-1024600JL#0SP1-FC Picture of WF101-1024600JL#0SP1-FC Picture of WF101-1024600JL#0SP1-FC
TFT 10.1" 1024x600 LCD Panel, Interface LVDS, High Brightness 750cd/m², Wide View Angle (IPS), Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 750 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). Resistive touch panel option.

The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.

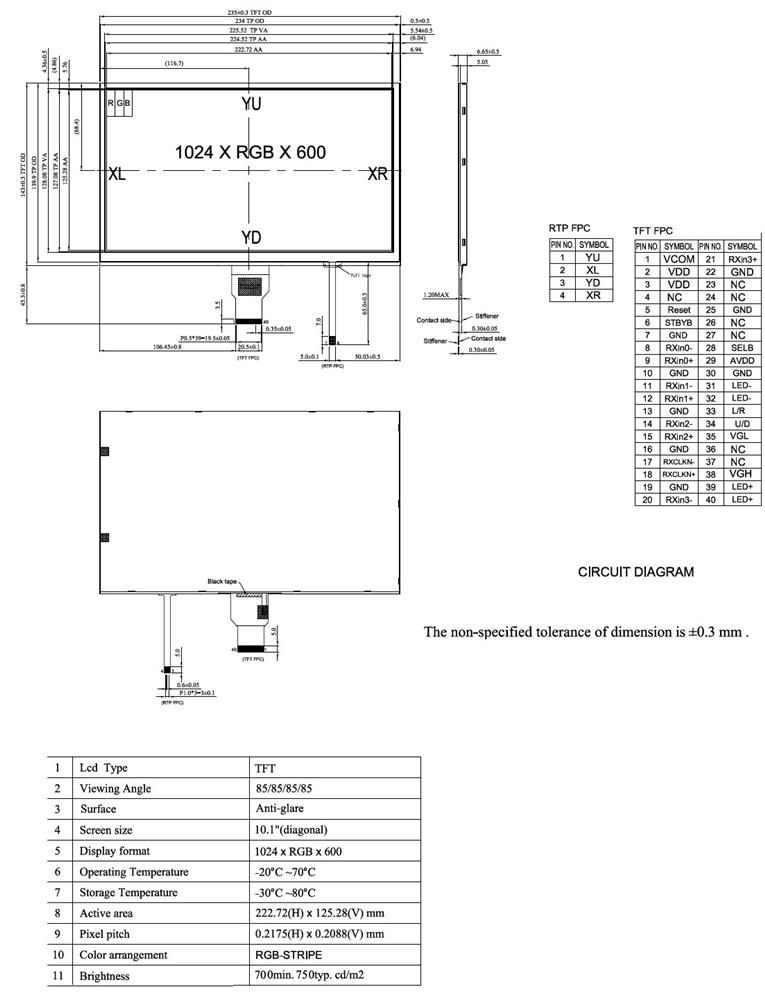

DRAWING

SKU: WF101-1024600JL#0SP1-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€83.50
€75.10
€70.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€83.50 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



MOQ

After sample PO, MP MOQ 500pcs



DESCRIPTION

Landscape mode 10.1 inch high brightness IPS TFT LCD module, it featured with resolution 1024x600 pixels. It is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 750 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). Resistive touch panel option.

The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. Standard brightness version available.



DRAWING

Date Notice Link/Description
2026/09/14 EOL

Winstar TFT Series WF18*F/G/H, WF40*C & WF101*J due to Hannstar Panel End of Life



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
