WF0675-4801280AL#0SP0-FC

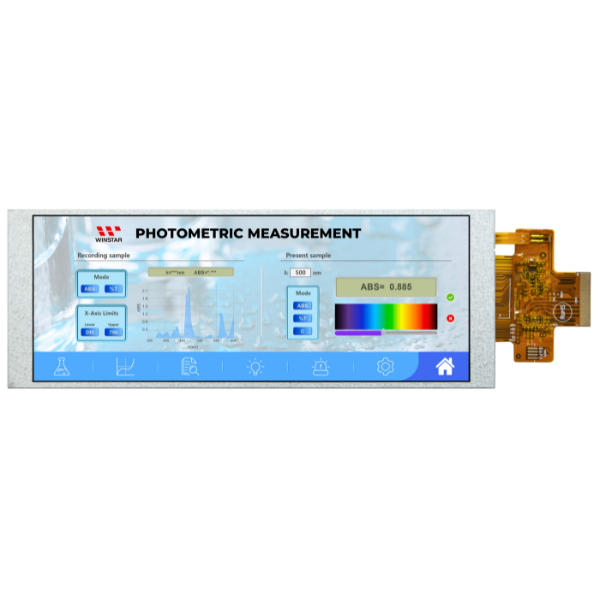

Picture of WF0675-4801280AL#0SP0-FC Picture of WF0675-4801280AL#0SP0-FC
TFT 6.75" 480x1280, Bar Type, Interface LVDS (40 pins), High Brightness 1200cd/m², Wide view angle (IPS), No touch

Description

WF0675-4801280AL#0SP0-FC is a 6.75-inch IPS TFT-LCD module that supports LVDS interface. The module dimension 66.8 x 181.1 x 4.55 mm, with an active area of 60.19 x 160.512mm.

This TFT-LCD module adopts IPS technology, providing remarkable sharpness, superior color reproduction, better image consistency, and a high contrast ratio of 1500:1 (typical value), with wide viewing angles (Left: 85 / Right: 85 / Up: 85 / Down: 85 degrees) and high brightness of 1200 nits (typical value). The resolution is 480×1280.

WF0675-4801280AL#0SP0-FC can be applied in the water quality detection industry, such as detection meters, detection equipment, etc. The TFT module is built-in with NV3051F-L driver IC (or equivalent specification IC), with an operating temperature range of -20°C to +70°C; storage temperature range is -30°C to +80°C. The operating voltage range is 3.0V to 3.6V, with a typical value of 3.3.



Specification



Interface Pin Function



LCM PIN Definition

Pin No.SymbolDescription
1 NC No connection
2 -3 VCC Power supply
4 NC No connection
5 RESET Global Reset Signal. Active Low.
6 STBYB Standby mode, normally pull high
STBYB=”1”, normal operation
STBYB=”0”,timming control, source driver will turn off, all output are high-Z
7 GND Ground
8 RXIN0- LVDS data Input
9 RXIN0+ LVDS data Input
10 GND Ground
11 RXIN1- LVDS data Input
12 RXIN1+ LVDS data Input
13 GND Ground
14 RXIN2- LVDS data Input
15 RXIN2+ LVDS data Input
16 GND Ground
17 RXCLKIN- LVDS clock Input.
18 RXCLKIN+ LVDS clock Input.
19 GND Ground
20 RXIN3- LVDS data Input
21 RXIN3+ LVDS data Input
22 GND Ground
23 NC(YU) No connection
24 NC(XL) No connection
25 GND Ground
26 NC(YD) No connection
27 NC(XR) No connection
28-29 NC No connection
30 GND Ground
31 VLED- Power for LED backlight cathode
32 VLED- Power for LED backlight cathode
33-38 NC No connection
39 VLED+ Power for LED backlight anode
40 VLED+ Power for LED backlight anode



General Specifications

ItemDimensionUnit
Size 6.75 inch
Dot Matrix 480 x 3(RGB) x 1280 dots
Module dimension 66.8 x 181.1 x 4.55 mm
Active area 60.19 x 160.512 mm
Pixel pitch 0.1254 x 0.1254 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 85/85/85/85
TFT Driver IC NV3051F-L or Equivalent
TFT Interface LVDS
Backlight Type LED,Normally White
With /Without TP Without TP
Surface Glare

*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics



Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Supply LCM current Icc － 80 75 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 180 － mA
LED voltage VLED+ 15.6 18.0 20.4 V
LED Life Time － － 50,000 － Hr



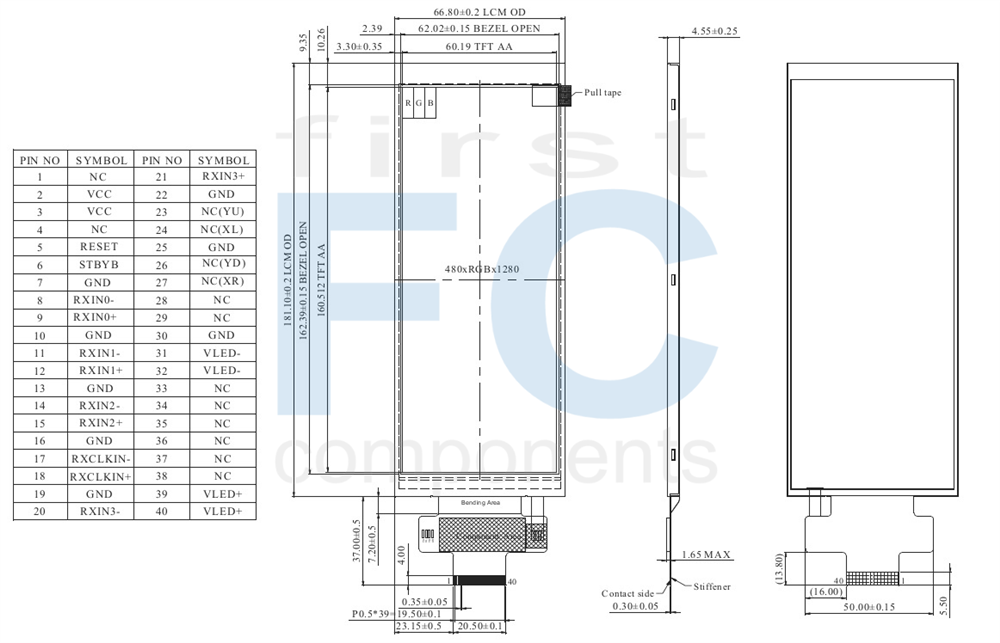

DRAWING



SKU: WF0675-4801280AL#0SP0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€34.90
€28.00
€24.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€34.90 excl tax

Description

WF0675-4801280AL#0SP0-FC is a 6.75-inch IPS TFT-LCD module that supports LVDS interface. The module dimension 66.8 x 181.1 x 4.55 mm, with an active area of 60.19 x 160.512mm.

This TFT-LCD module adopts IPS technology, providing remarkable sharpness, superior color reproduction, better image consistency, and a high contrast ratio of 1500:1 (typical value), with wide viewing angles (Left: 85 / Right: 85 / Up: 85 / Down: 85 degrees) and high brightness of 1200 nits (typical value). The resolution is 480×1280.

WF0675-4801280AL#0SP0-FC can be applied in the water quality detection industry, such as detection meters, detection equipment, etc. The TFT module is built-in with NV3051F-L driver IC (or equivalent specification IC), with an operating temperature range of -20°C to +70°C; storage temperature range is -30°C to +80°C. The operating voltage range is 3.0V to 3.6V, with a typical value of 3.3.



Specification



Interface Pin Function



LCM PIN Definition

Pin No.SymbolDescription
1 NC No connection
2 -3 VCC Power supply
4 NC No connection
5 RESET Global Reset Signal. Active Low.
6 STBYB Standby mode, normally pull high
STBYB=”1”, normal operation
STBYB=”0”,timming control, source driver will turn off, all output are high-Z
7 GND Ground
8 RXIN0- LVDS data Input
9 RXIN0+ LVDS data Input
10 GND Ground
11 RXIN1- LVDS data Input
12 RXIN1+ LVDS data Input
13 GND Ground
14 RXIN2- LVDS data Input
15 RXIN2+ LVDS data Input
16 GND Ground
17 RXCLKIN- LVDS clock Input.
18 RXCLKIN+ LVDS clock Input.
19 GND Ground
20 RXIN3- LVDS data Input
21 RXIN3+ LVDS data Input
22 GND Ground
23 NC(YU) No connection
24 NC(XL) No connection
25 GND Ground
26 NC(YD) No connection
27 NC(XR) No connection
28-29 NC No connection
30 GND Ground
31 VLED- Power for LED backlight cathode
32 VLED- Power for LED backlight cathode
33-38 NC No connection
39 VLED+ Power for LED backlight anode
40 VLED+ Power for LED backlight anode



General Specifications

ItemDimensionUnit
Size 6.75 inch
Dot Matrix 480 x 3(RGB) x 1280 dots
Module dimension 66.8 x 181.1 x 4.55 mm
Active area 60.19 x 160.512 mm
Pixel pitch 0.1254 x 0.1254 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 85/85/85/85
TFT Driver IC NV3051F-L or Equivalent
TFT Interface LVDS
Backlight Type LED,Normally White
With /Without TP Without TP
Surface Glare

*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics



Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Supply LCM current Icc － 80 75 mA

LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 180 － mA
LED voltage VLED+ 15.6 18.0 20.4 V
LED Life Time － － 50,000 － Hr



DRAWING



Products specifications
Brand Winstar
Size 6.75"
Resolution 480x1280
Active Area (mm) 60.19x160.512
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 6.75"
Resolution 480x1280
Active Area (mm) 60.19x160.512
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
