WEX25664W#DP3N00000-FC

PMOLED 5.5" Graphic 256x64, White color, COF, 3V, Interface 6800,8080,SPI, Glare

DESCRIPTION

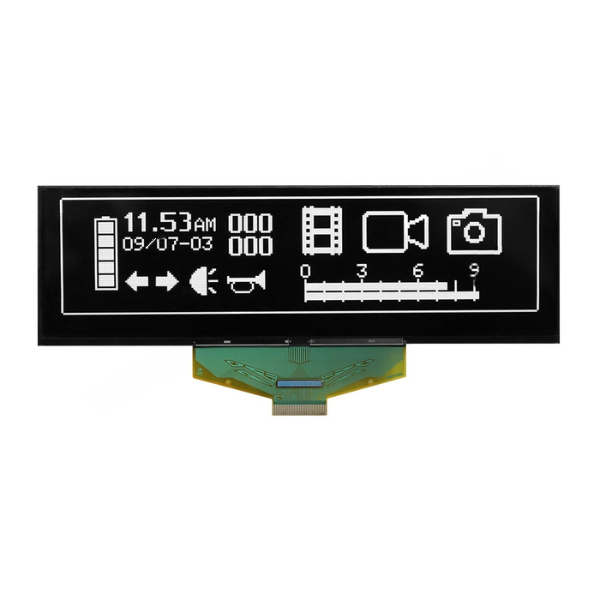

Unleash a new era of visual excellence with Winstar's 5.5-inch COF OLED Display Module (WEX25664W#DP3N00000-FC). Boasting a resolution of 256x64 dots, this display is equipped with a built-in SSD1322 IC and supports 6800/8080 8-bit and 3/4-line SPI interfaces.

Operable on a 3V power supply and utilizing a 1/64 duty driving method, this 5.5-inch OLED module provides an outstanding contrast ratio of 10000:1 and supports 4-bit grayscale, ensuring vibrant and detailed visuals. Its operational temperature range of -40℃ to +80℃, coupled with a storage temperature range of -40℃ to +85℃, makes it versatile for various environments.

Winstar's COF Series 5.5-inch Display is a perfect fit for a multitude of applications, including wall/meter devices, home automation, POS systems, Cloud/IoT setups, handheld instruments, intelligent technology devices, energy systems, automotive displays, communication systems, and medical instruments.

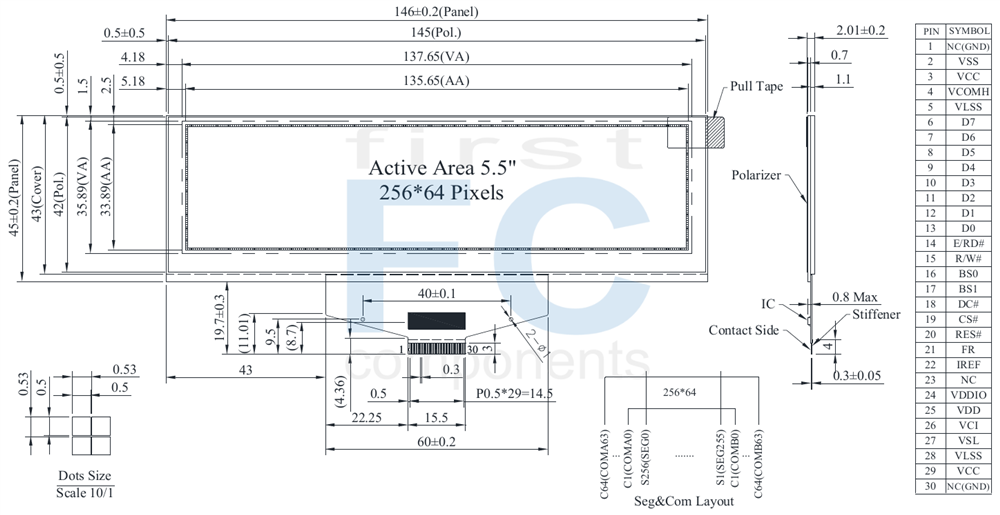

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	NC	No Connection
2	VSS	Ground Pin
3	VCC	Panel driving voltage
4	VCOMH	COM deselected level
5	VLSS	Analog system ground pin
6~13	D7~D0	Data Bus
14	E/RD#	Chip Enable Signal
15	R/W#	Read/Write Control
16~17	BS0~BS1	Interface selection
18	D/C#	Data/Command Control Pin
19	CS#	Chip Select Pin
20	RES#	Reset Signal Pin
21	FR	Not Connected
22	IREF	SEG output current refer pin
23	NC	No Connection
24	VDDIO	Voltage for interface logic
25	VDD	Voltage for logic
26	VCI	Low voltage power supply
27	VSL	SEG voltage refer Pin
28	VLSS	Analog system ground pin
29	VCC	Panel driving voltage
30	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	146.0 × 45.0	mm
Viewing area	137.65 × 35.89	mm
Active area	135.65 × 33.89	mm
Dot pitch	0.53 × 0.53	mm
Dot size	0.50 × 0.50	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCI	---	2.8	3.0	3.3	V

SKU: WEX25664W#DP3N00000-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€57.50

€51.80

€49.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€57.50 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	NC	No Connection
2	VSS	Ground Pin
3	VCC	Panel driving voltage
4	VCOMH	COM deselected level
5	VLSS	Analog system ground pin
6~13	D7~D0	Data Bus
14	E/RD#	Chip Enable Signal
15	R/W#	Read/Write Control
16~17	BS0~BS1	Interface selection
18	D/C#	Data/Command Control Pin
19	CS#	Chip Select Pin
20	RES#	Reset Signal Pin
21	FR	Not Connected
22	IREF	SEG output current refer pin
23	NC	No Connection
24	VDDIO	Voltage for interface logic
25	VDD	Voltage for logic
26	VCI	Low voltage power supply
27	VSL	SEG voltage refer Pin
28	VLSS	Analog system ground pin
29	VCC	Panel driving voltage
30	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	146.0 × 45.0	mm
Viewing area	137.65 × 35.89	mm
Active area	135.65 × 33.89	mm
Dot pitch	0.53 × 0.53	mm
Dot size	0.50 × 0.50	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCI	---	2.8	3.0	3.3	V

Products specifications

Brand	Winstar
Size	5.5"
Resolution	256x64
Active Area (mm)	135.65x33.89
Dot Size	0.50x0.50
Polarizer	Glare
Color	White
Power supply	3V
Display Interface	6800/8080/SPI
Display IC	SSD1322
Constructive Structure	COF
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for ZIF Connector
Pin Nr.	30
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
