WEO64128W#BA3N00000-FC

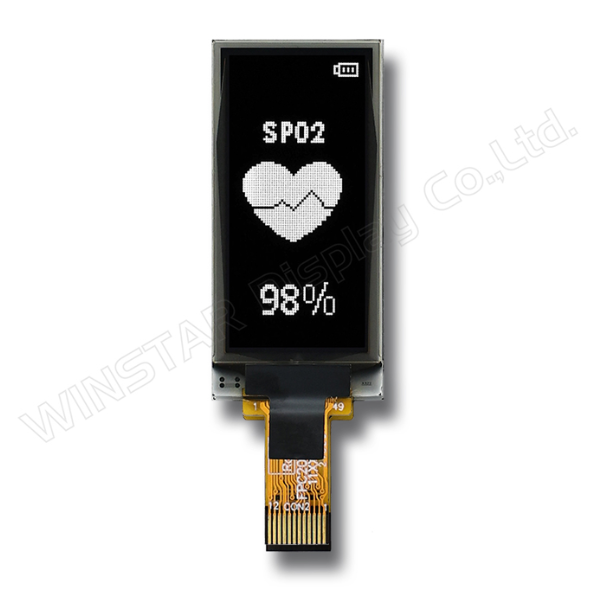

PMOLED 1.3" Graphic 64x128, White color, COG, 3.3V, Interface SPI,I2C, Anti-glare

DESCRIPTION

The WEO64128W#BA3N00000-FC 1.3-inch OLED Display Module delivers exceptional performance and versatile integration capabilities, meeting the diverse needs of gaming peripherals, smart home devices, industrial control systems, and more. With its high contrast ratio, reliability, and low power consumption, it is the ideal choice for engineers designing high-efficiency products.

Key Features

Sharp Display with Outstanding Contrast: 64x128 resolution and an impressive 10,000:1 contrast ratio deliver crisp, clear visuals for precise data representation.
Reliable in Extreme Environments: Operates seamlessly within a wide temperature range of -40℃ to 80℃, ensuring stable performance in demanding conditions.
Flexible System Integration: Equipped with an SH1107 driver IC and supports both 4-wire SPI and I2C interfaces, simplifying integration.
Low Power, High Efficiency: Operates at 3.3V logic voltage and 13V display voltage, making it ideal for energy-efficient designs.
Orientation Flexibility: Supports both portrait (vertical) and landscape (horizontal) display orientations, offering flexibility for diverse application designs.

Versatile Applications

Gaming Peripherals: Perfect for keyboard displays and steering wheel control panels, delivering precise feedback and dynamic visual effects.
Smart Home & Automation: Ideal for smart locks and home control panels, enhancing user experience with sleek and modern displays.
Industrial Control & Testing: Reliable for industrial control systems and precision instrument displays, ensuring efficient data monitoring.
Wearable Devices: Suited for smartwatches and health trackers, providing accurate and reliable data visualization.

With its premium quality and stable performance, the WEO64128W#BA3N00000-FC 1.3-inch OLED Display Module helps engineers tackle multi-domain design challenges and accelerate product development. Whether you're focusing on gaming, smart home, or industrial applications, this module is the perfect fit for your needs.

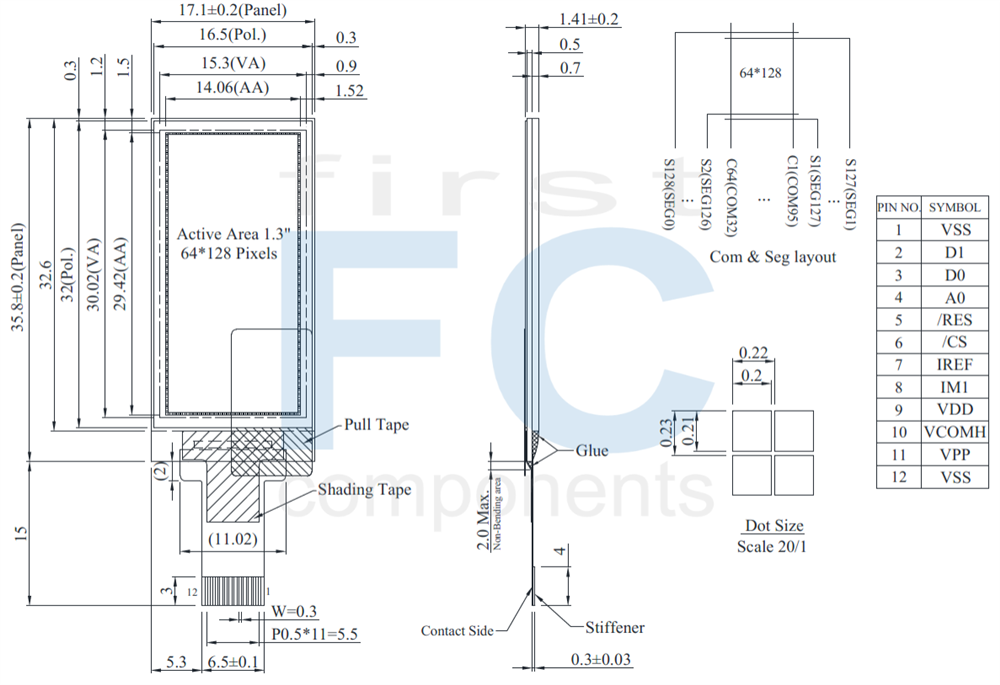

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 x 128	Dots
Module dimension	17.1 × 35.80 × 1.41	mm
Active Area	14.06 × 29.42	mm
Pixel Size	0.20 × 0.21	mm
Pixel Pitch	0.22 × 0.23	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
IC	SH1107
Interface	4-wire SPI , I2C
Size	1.3 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	-0.3	3.6	V
Supply Voltage for Display	VPP	7.0	17.0	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	1.65	3.0	3.5	V
Supply Voltage for Display	VPP	－	7.0	13.0	13.5	V
Input High Volt.	VIH	－	0.8×VDD	－	VDD	V
Input Low Volt.	VIL	－	VSS	－	0.2×VDD	V
Output High Volt.	VOH	－	0.8×VDD	－	VDD	V
Output Low Volt.	VOL	－	VSS	－	0.2×VDD	V
Display 50% Pixel on	IPP	VPP=13V	－	10	15	mA

Interface Pin Function

No.	Symbol	Function
1	VSS	Ground.
2	D1	When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDA).
3	D0
4	A0	This is the Data/Command control pad that determines whether the data bits are data or a command. A0 = “H”: Data. A0 = “L”: Command In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
5	___ RES	This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
6	__ CS	This pad is the chip select input. When CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
7	IREF	This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 15.625uA.
8	IM1	These are the MPU interface mode select pads. IM1 connect to VDD is I2C interface. IM1 connect to VSS is 4-wire SPI interface.
9	VDD	Power supply for logic and input.
10	VCOMH	This is a pad for the voltage output high level for common signals. A capacitor should be connected between this pad and VSS.
11	VPP	This is the most positive voltage supply pad of the chip. It should be supplied externally.
12	VSS	Ground.

SKU: WEO64128W#BA3N00000-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€6.90

€5.10

€4.90

€4.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€6.90 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

Key Features

Sharp Display with Outstanding Contrast: 64x128 resolution and an impressive 10,000:1 contrast ratio deliver crisp, clear visuals for precise data representation.
Reliable in Extreme Environments: Operates seamlessly within a wide temperature range of -40℃ to 80℃, ensuring stable performance in demanding conditions.
Flexible System Integration: Equipped with an SH1107 driver IC and supports both 4-wire SPI and I2C interfaces, simplifying integration.
Low Power, High Efficiency: Operates at 3.3V logic voltage and 13V display voltage, making it ideal for energy-efficient designs.
Orientation Flexibility: Supports both portrait (vertical) and landscape (horizontal) display orientations, offering flexibility for diverse application designs.

Versatile Applications

Gaming Peripherals: Perfect for keyboard displays and steering wheel control panels, delivering precise feedback and dynamic visual effects.
Smart Home & Automation: Ideal for smart locks and home control panels, enhancing user experience with sleek and modern displays.
Industrial Control & Testing: Reliable for industrial control systems and precision instrument displays, ensuring efficient data monitoring.
Wearable Devices: Suited for smartwatches and health trackers, providing accurate and reliable data visualization.

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 x 128	Dots
Module dimension	17.1 × 35.80 × 1.41	mm
Active Area	14.06 × 29.42	mm
Pixel Size	0.20 × 0.21	mm
Pixel Pitch	0.22 × 0.23	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
IC	SH1107
Interface	4-wire SPI , I2C
Size	1.3 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	-0.3	3.6	V
Supply Voltage for Display	VPP	7.0	17.0	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	1.65	3.0	3.5	V
Supply Voltage for Display	VPP	－	7.0	13.0	13.5	V
Input High Volt.	VIH	－	0.8×VDD	－	VDD	V
Input Low Volt.	VIL	－	VSS	－	0.2×VDD	V
Output High Volt.	VOH	－	0.8×VDD	－	VDD	V
Output Low Volt.	VOL	－	VSS	－	0.2×VDD	V
Display 50% Pixel on	IPP	VPP=13V	－	10	15	mA

Interface Pin Function

No.	Symbol	Function
1	VSS	Ground.
2	D1	When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDA).
3	D0
4	A0	This is the Data/Command control pad that determines whether the data bits are data or a command. A0 = “H”: Data. A0 = “L”: Command In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
5	___ RES	This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
6	__ CS	This pad is the chip select input. When CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
7	IREF	This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 15.625uA.
8	IM1	These are the MPU interface mode select pads. IM1 connect to VDD is I2C interface. IM1 connect to VSS is 4-wire SPI interface.
9	VDD	Power supply for logic and input.
10	VCOMH	This is a pad for the voltage output high level for common signals. A capacitor should be connected between this pad and VSS.
11	VPP	This is the most positive voltage supply pad of the chip. It should be supplied externally.
12	VSS	Ground.

Products specifications

Brand	Winstar
Size	1.3"
Resolution	64x128
Active Area (mm)	14.06x29.42
Dot Size	0.20x0.21
Polarizer	Anti-glare
Color	White
Power supply	3.3V
Display Interface	SPI/I2C
Display IC	SH1107
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for ZIF Connector
Pin Nr.	12
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
