WEO1602B#B00-FC

PMOLED 1.23" 16x2, Blue color, COG + PCB, 5V, Interface 6800, Frame, Glare

DESCRIPTION

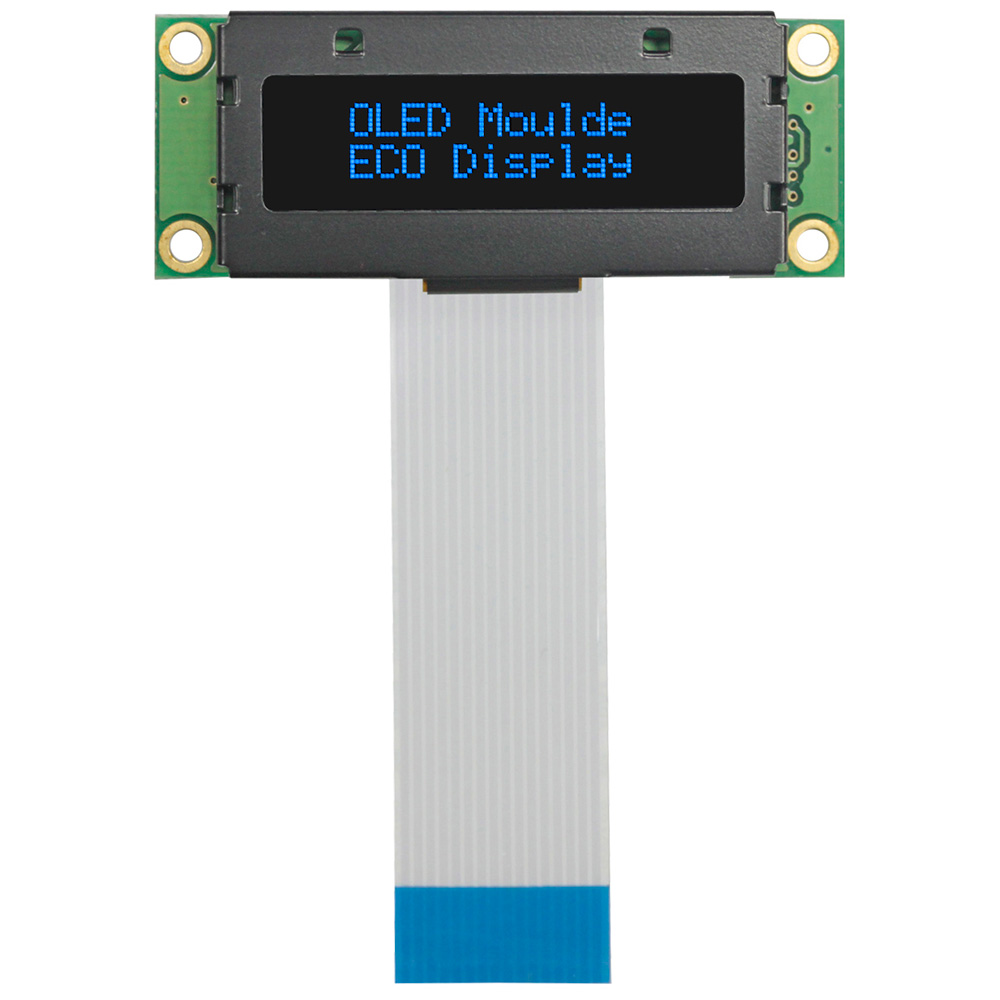

Winstar COG 16 Character x 2 lines OLED display module. This OLED display is built-in WS0012 IC which has different interfaces optional; it is default 6800, available options 8080, SPI and I2C. These OLED displays are higher brightness, higher contrast, wider viewing angles, faster response time, self-illuminating and lower current consumption. It is a COG structure with a PCB on module which has the advantage of easily fixed modules on customers’ applications because of having PCB board on it.

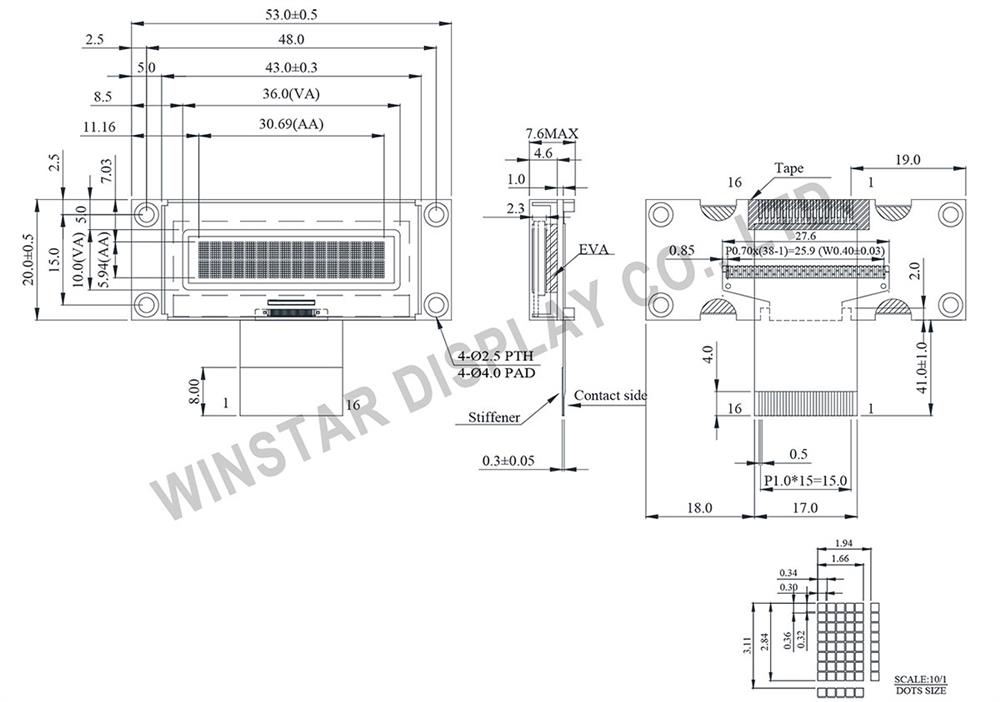

DRAWING

Winstar Character OLED 16x2 - WEO001602B

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	53.0 × 20.0	mm
View area	36.0 × 10.0	mm
Active area	30.69 × 5.94	mm
Dot pitch	0.34 × 0.36	mm
Dot size	0.30 × 0.32	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEO1602B#B00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€10.50

€7.70

€7.40

€7.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€10.50 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	53.0 × 20.0	mm
View area	36.0 × 10.0	mm
Active area	30.69 × 5.94	mm
Dot pitch	0.34 × 0.36	mm
Dot size	0.30 × 0.32	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	1.23"
Resolution	16x2
Active Area (mm)	30.69x5.94
Dot Size	0.30x0.32
Polarizer	Glare
Color	Blue
Power supply	5V
Display Interface	6800 (option 8080/SPI/I2C)
Display IC	WS0012
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for ZIF Connector
Pin Nr.	16
Pin Pitch	1mm
Preferred - Not Preferred	Not Preferred
