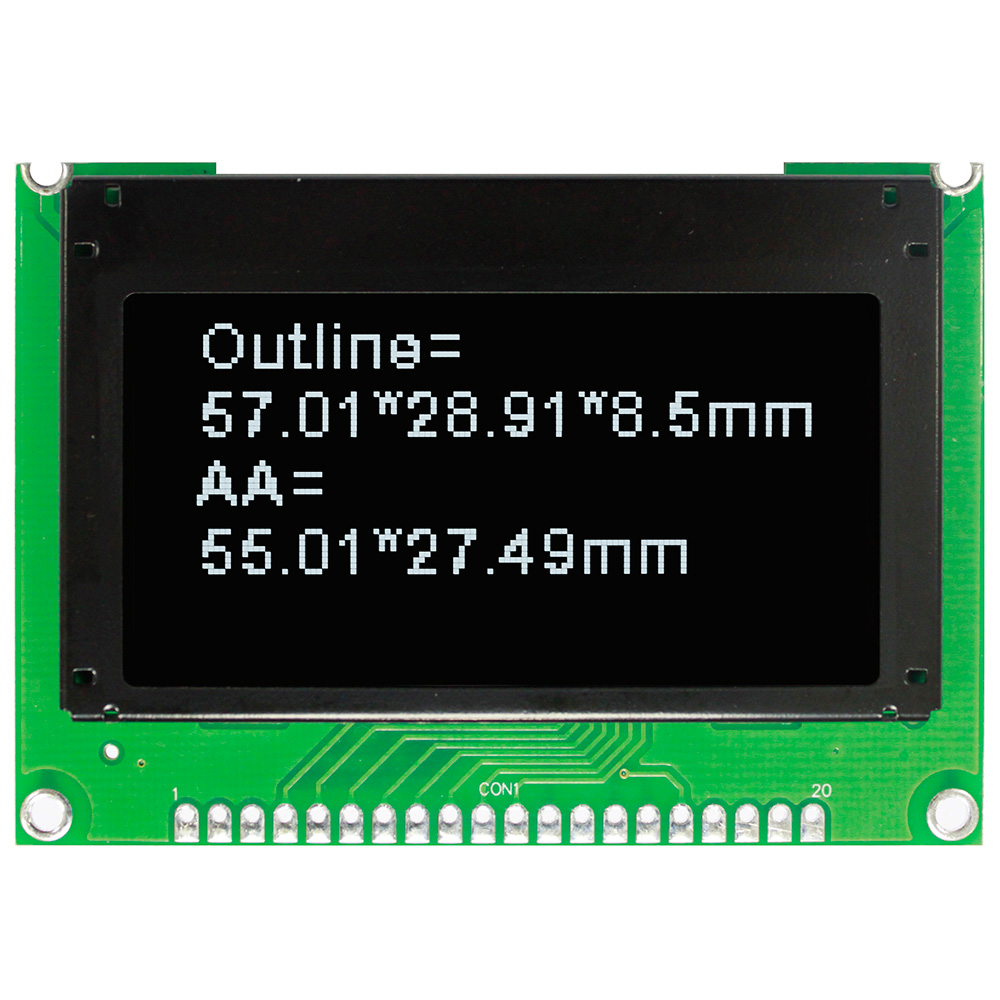

    PMOLED 2.42" Graphic 128x64, White color, COG + PCB, 3V, Interface 6800, Frame, Glare
    Manufacturer: Winstar
    SKU: WEO12864W#J00-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €25.70
    €23.10
    €21.70

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €25.70 excl tax
    i h

    DESCRIPTION

    The COG OLED 128x64 is one of the most popular resolutions. The Winstar 2.42" graphic display OLED 128x64 module is built-in with SSD1309 IC and it supports hardware command "Segment Remap" and "COM Output Scan Direction" mode.  This display is OLED COG structure but with a PCB on module which made it more easily to fix on customer's application.

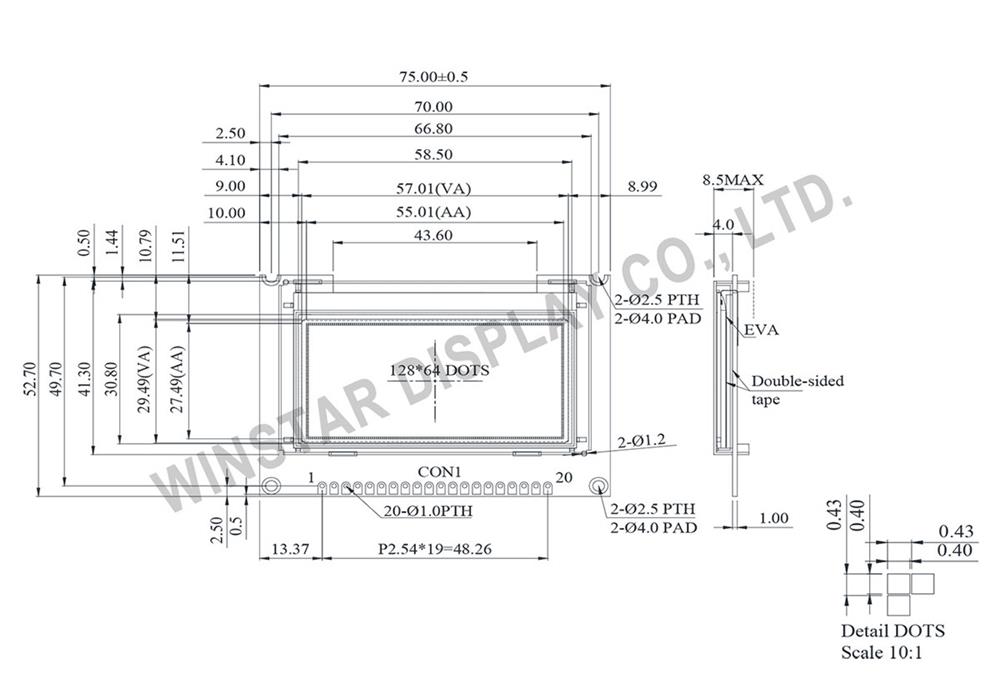

    DRAWING

    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VDD Voltage for logic
    2 VSS Ground Pin
    3 NC No Connection
    4~11 D0~D7 Data Bus
    12 CS# Chip Select Pin
    13 NC No Connection
    14 RES# Reset Signal Pin
    15 R/W# Read/Write Control
    16 D/C# Data/Command Control Pin
    17 E Chip Enable Signal
    18 NC No Connection
    19 DISP Display off
    20 NC No Connection



    Mechanical Data

    ItemDimensionUnit
    Module dimension 75.0 × 52.7 mm
    Viewing area 57.01 × 29.49 mm
    Active area 55.01 × 27.49 mm
    Dot pitch 0.43 × 0.43 mm
    Dot size 0.40 × 0.40 mm



    Electronical Characteristics

    ItemSymbolConditionStandard ValueUnit
    MinTypMax
    Supply Voltage VDD --- 2.8 3.0 3.3 V



    Products specifications
    Size 2.42"
    Resolution 128x64
    Active Area (mm) 55.01x27.49
    Dot Size 0.40x0.40
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface 8080 (option 6800/SPI/I2C)
    Display IC SSD1309Z
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
