WEH1202W#AP5N00300-FC
WEH1202W#AP5N00300-FC

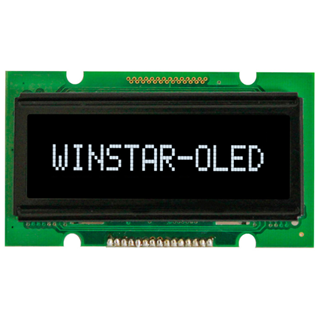

PMOLED 1.6" 12x2, White color, COB, 5V, Interface SPI, WS0010-TX IC, Frame, Glare

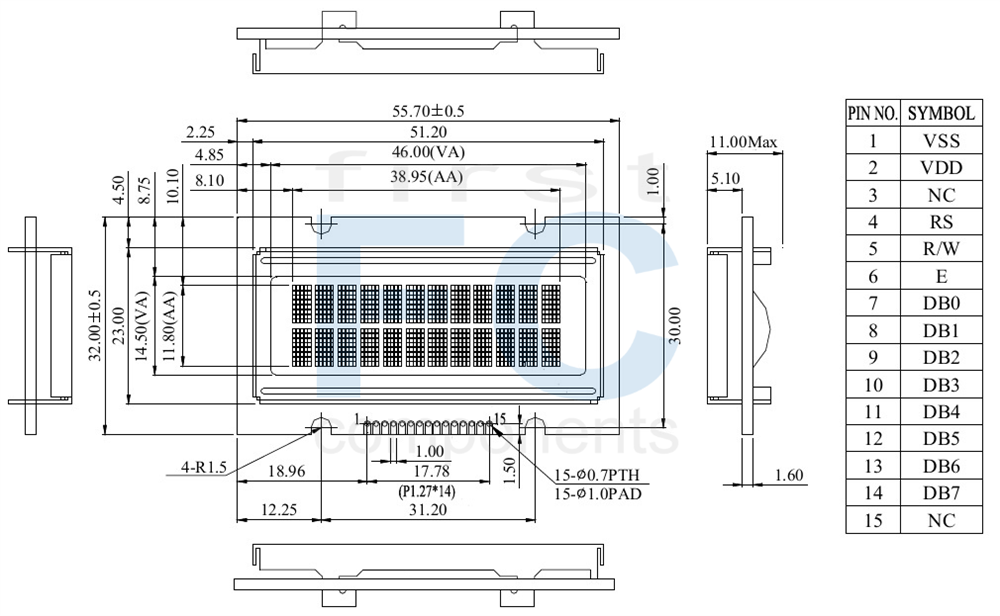

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Level
Description
1
VSS
0V
Ground
2
VDD
5.0V
Supply Voltage for logic
3
NC
-
4
RS
H/L
H: DATA, L: Instruction code
5
R/W
H/L
H: Read(Module→MPU) L: Write(MPU→Module)
6
E
H,H→L
Chip enable signal
7
DB0
H/L
Data bit 0
8
DB1
H/L
Data bit 1
9
DB2
H/L
Data bit 2
10
DB3
H/L
Data bit 3
11
DB4
H/L
Data bit 4
12
DB5
H/L
Data bit 5
13
DB6
H/L
Data bit 6
14
DB7
H/L
Data bit 7
15
NC
-
Mechanical Data
Item
Dimension
Unit
Number of Characters
12 characters x 2 Lines
-
Module dimension
55.7 x 32.0 x 11.0(MAX)
mm
View area
46.0 x 14.5
mm
Active area
38.95 x 11.80
mm
Dot size
0.45 x 0.60
mm
Dot pitch
0.55 x 0.70
mm
Character size
2.65 x 5.5
mm
Character pitch
3.3 x 6.3
mm
Panel type
OLED, Monochrome
Duty
1/16
IC
WS0010-TX
Interface
SPI
Size
1.60 inch
Absolute Maximum Ratings
Item
Symbol
Min
Max
Unit
Operating Temperature
TOP
-40
+80
°C
Storage Temperature
TST
-40
+85
°C
Supply Voltage For Logic
VDD-VSS
-0.3
5.3
V
Electronical Characteristics
DC Electrical Characteristics
Item
Symbol
Condition
Min
Typ
Max
Unit
Supply Voltage For Logic
VDD-VSS
-
4.8
5.0
5.3
V
Input High Volt.
VIH
-
0.8xVDD
-
VDD
V
Input Low Volt.
VIL
-
GND
-
0.2xVDD
V
Output High Volt.
VOH
IOH=-0.5mA
0.8xVDD
-
VDD
V
Output Low Volt.
VOL
IOL=0.5mA
GND
-
0.2xVDD
V
50% Check Board Operating Current
IDD
VDD=5V
-
30
45
mA
SKU:
WEH1202W#AP5N00300-FC
Brand:
Winstar
Available:
No
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
GPEA107-1502A008C1BA-Q5 [+€0.68]
CSEA113-1502A001J1BC-Q5 [+€1.10]
GPEB101-1502A033C1BA-Q5 [+€1.00]
CSEA102-1502A001C1AC-Q5 [+€0.80]
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.30
€11.30
€10.80
€10.50
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€15.30 excl tax
