WEH000802AGPP5N00000

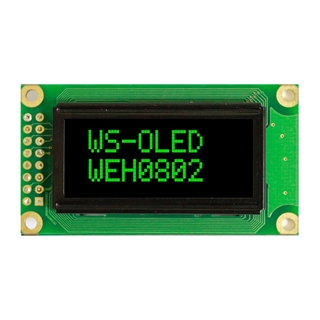

PMOLED 1.2" 8x2, Green color, COB, 5V, Interface 6800, WS0010 IC, Frame, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

8x2 OLED which has the same outline size, VA size and pin out as Winstar STN LCD item no. WH0802A. This OLED is Winstar 8x2 type (8 Characters x 2 lines). There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 58.0 × 32.0 mm
View area 38.0 × 16.0 mm
Active area 28.16 × 11.86 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.56 × 0.66 mm



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V



SKU: WEH0802G#A00-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€10.80
€7.90
€7.60
€7.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€10.80 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

8x2 OLED which has the same outline size, VA size and pin out as Winstar STN LCD item no. WH0802A. This OLED is Winstar 8x2 type (8 Characters x 2 lines). There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 58.0 × 32.0 mm
View area 38.0 × 16.0 mm
Active area 28.16 × 11.86 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.56 × 0.66 mm



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V



Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 28.16x11.86
Dot Size 0.56x0.66
Polarizer Glare
Color Green
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC WS0010
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
