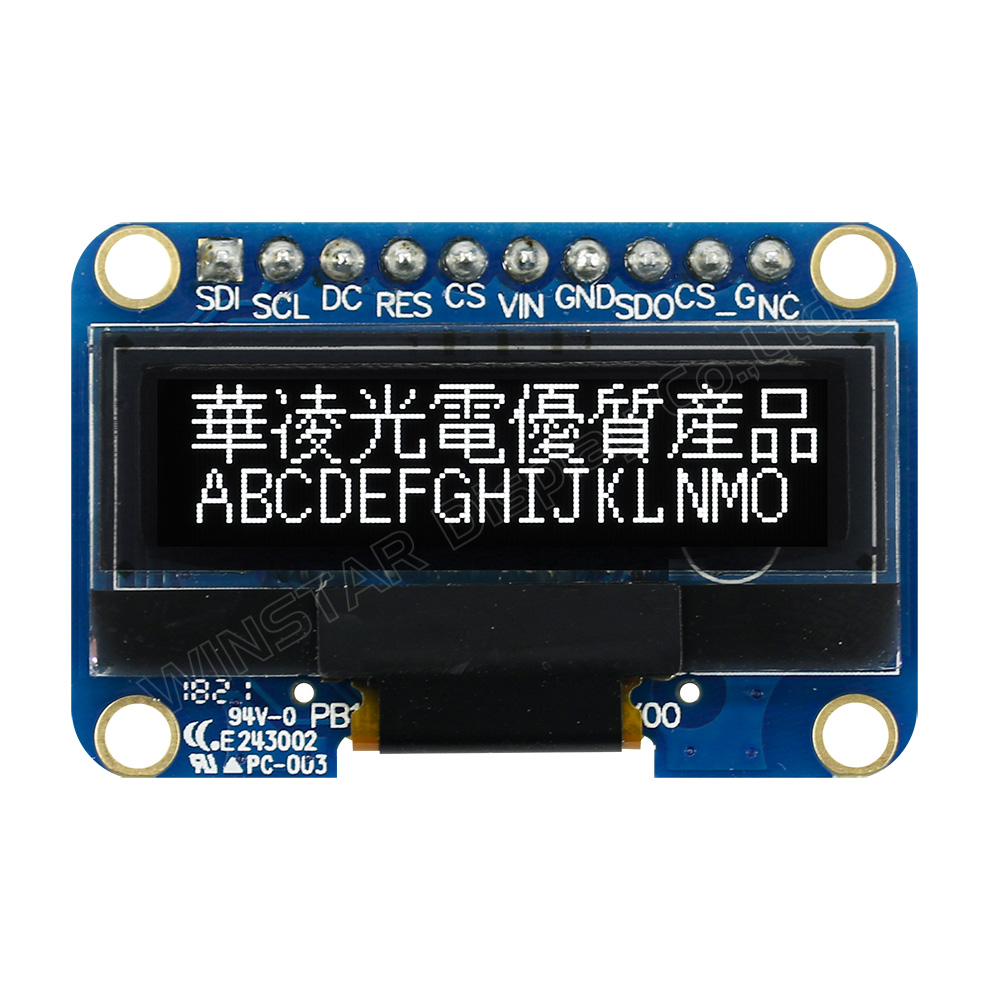

    PMOLED 1.04" Graphic 128x32, White color, COG + PCB, 3~5V, Interface SPI, Glare
    Manufacturer: Winstar
    SKU: WEA12832W#E00-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €10.90
    €9.90
    €9.30
    €9.00

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €10.90 excl tax
    i h

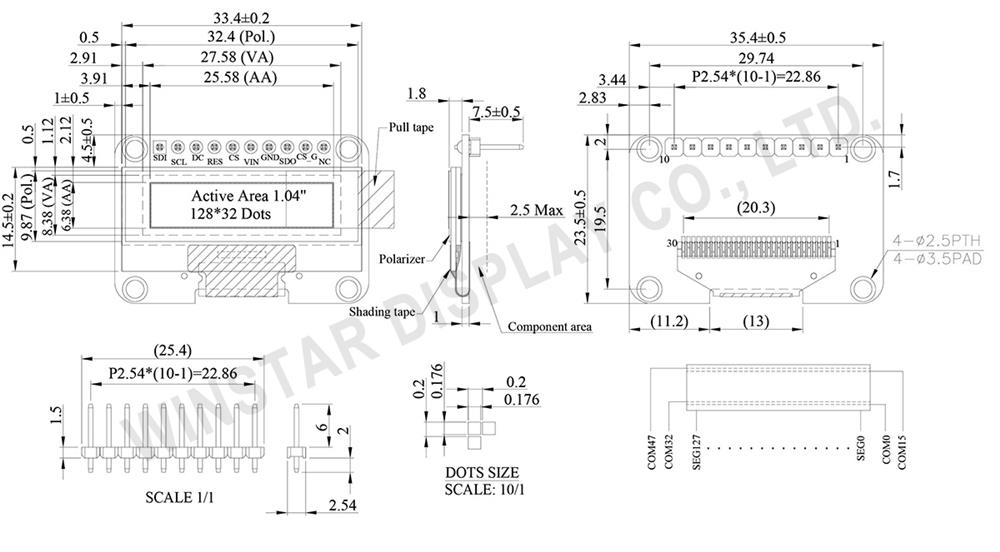

    DRAWING



    SPECIFICATIONS



    Interface Pin Function

    No.SymbolFunction
    1 SDI Serial data input
    This pin connects font IC of SDI and OLED drive IC of SDI.
    2 SCL Serial clock input
    This pin connects font IC of SCL and OLED drive IC of SCL.
    3 DC This is Data/Command control pin.
    4 RES This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
    5 CS This pin is the chip select input. (active LOW).
    6 VIN Input voltage for 2.8 ~ 5.2V power supply.
    7 GND This is a ground pin.
    8 SDO Serial Data Output for font IC.
    Data is shifted out on the falling edge of the serial clock.
    9 CS_G Chip Select input for font IC.
    This pin is the chip select input. (active LOW).
    10 NC Not connection



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 128 x 32 Dots
    Module dimension 35.4 × 23.5 × 1.8 mm
    Active Area 25.58 × 6.38 mm
    Pixel Size 0.176 × 0.176 mm
    Pixel Pitch 0.200 × 0.200 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/32 Duty
    IC SSD1306
    Font IC GT21L16T1W
    Interface SPI
    Size 1.04 inch



    Absolute Maximum Ratings

    Parameter Symbol Min Max Unit
    Supply Voltage for input VIN 2 7 V
    Operating Temperature TOP -20 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Input VIN - 2.8 3.0 5.2 V
    Input High Volt. VIH - 2.4 - 3.2 V
    Input Low Volt. VIL - 0 - 0.6 V
    Output High Volt. VOH - 2.7 - 3.2 V
    Output Low Volt. VOL - 0 - 0.3 V
    50% Check Board operating Current IIN VIN=3V - 13.0 26.0 mA


    Products specifications
    Size 1.04"
    Resolution 128x32
    Active Area (mm) 25.58x6.38
    Dot Size 0.17x0.17
    Polarizer Glare
    Color White
    Power supply 3~5V
    Display Interface SPI
    Display IC SSD1306BZ
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Pin Strip
    Pin Nr. 10
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
