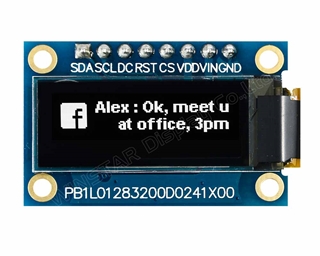

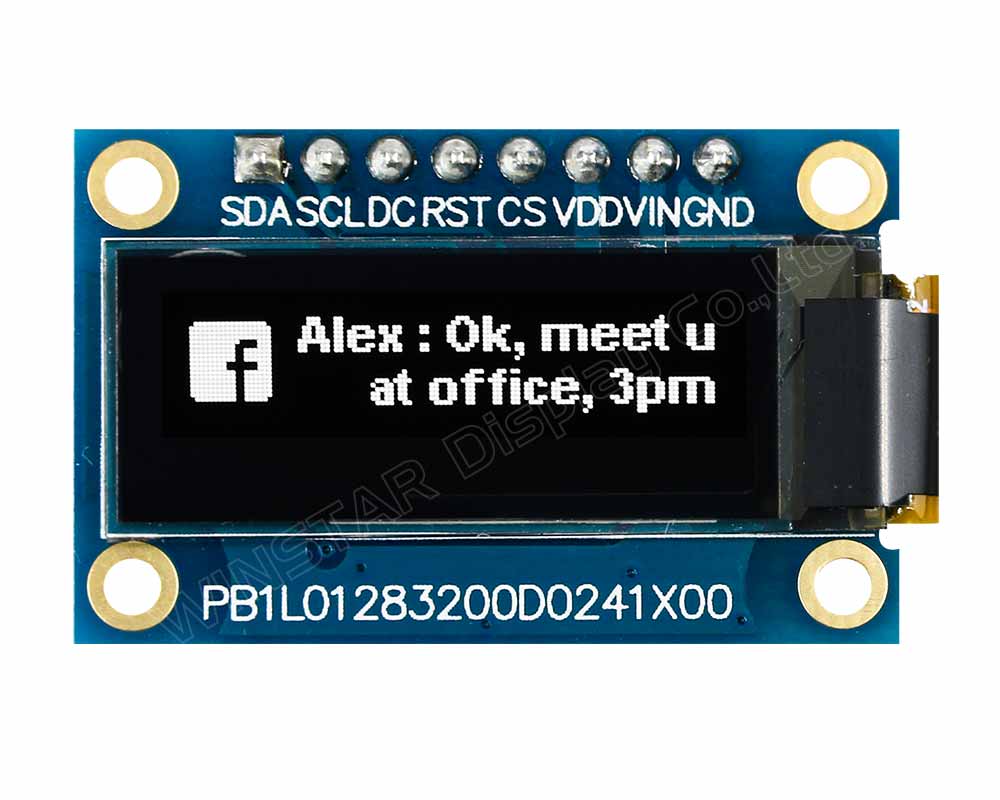

    PMOLED 0.91" Graphic 128x32, White color, COG + PCB, 3V, Interface SPI, Glare
    Manufacturer: Winstar
    SKU: WEA12832W#D00-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €8.80
    €7.90
    €7.40
    €7.20

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €8.80 excl tax
    i h

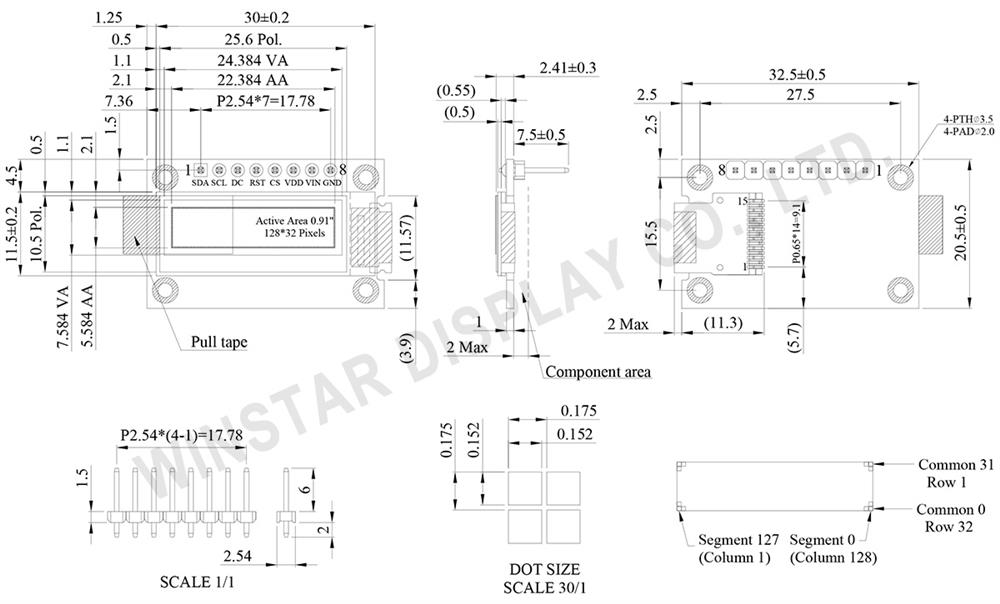

    DRAWING

    12832 OLED, 0.91 inch SPI, SSD1306 OLED Display (COG PCB) - WEA012832D - Winstar



    SPECIFICATIONS



    Interface Pin Function

    No.SymbolFunction
    1 SDA When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
    2 SCL
    3 DC Data/Command Control
    This pin is Data/Command control pin..
    When the pin is pulled high and serial interface mode is selected, the data at SDIN is treated as data. When it is pulled low, the data at SDIN will be transferred to the command register.
    4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
    Keep this pin HIGH (i.e. connect to VDD) during normal operation.
    5 CS This pin is the chip select input. (active LOW).
    6 VDD 2.8 ~ 3.3V Power supply pin for core logic operation.
    7 VIN 4.8 ~ 5.2V Power supply pin for core logic operation.
    8 GND This is a ground pin.



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 128 x 32 Dots
    Module dimension 32.5 × 20.5 × 2.41 mm
    Active Area 22.384 × 5.584 mm
    Pixel Size 0.152 × 0.152 mm
    Pixel Pitch 0.175 × 0.175 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/32 Duty
    IC SSD1306BZ
    Interface SPI
    Size 0.91 inch



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD 1.65 3.3 V
    Supply Voltage for Logic VIN 4.0 6.0 V
    Operating Temperature TOP -40 +80 °C
    Storage Temperature TSTG -40 +85 °C



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic (3V) VDD - 2.8 3.0 3.3 V
    Supply Voltage for Logic (5V) VIN - 4.8 5.0 5.2 V
    Input High Volt. VIH - 0.8×VDD - VDD V
    Input Low Volt. VIL - 0 - 0.2×VDD V
    Output High Volt. VOH - 0.9×VDD - VDD V
    Output Low Volt. VOL - 0 - 0.1×VDD V
    50% Check Board operating Current ICC VDD=3V - 13.0 26.0 mA


    Products specifications
    Size 0.91"
    Resolution 128x32
    Active Area (mm) 22.38x5.58
    Dot Size 0.15x0.15
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface SPI
    Display IC SSD1306BZ
    Constructive Structure COG + PCB
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Pin Strip
    Pin Nr. 8
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
