TST0005R0B4111XXXX04
TST0005R0B4111XXXX04

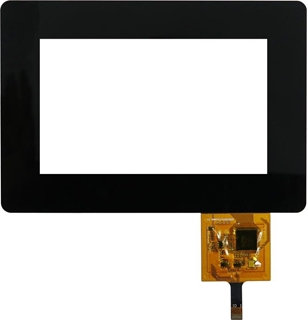

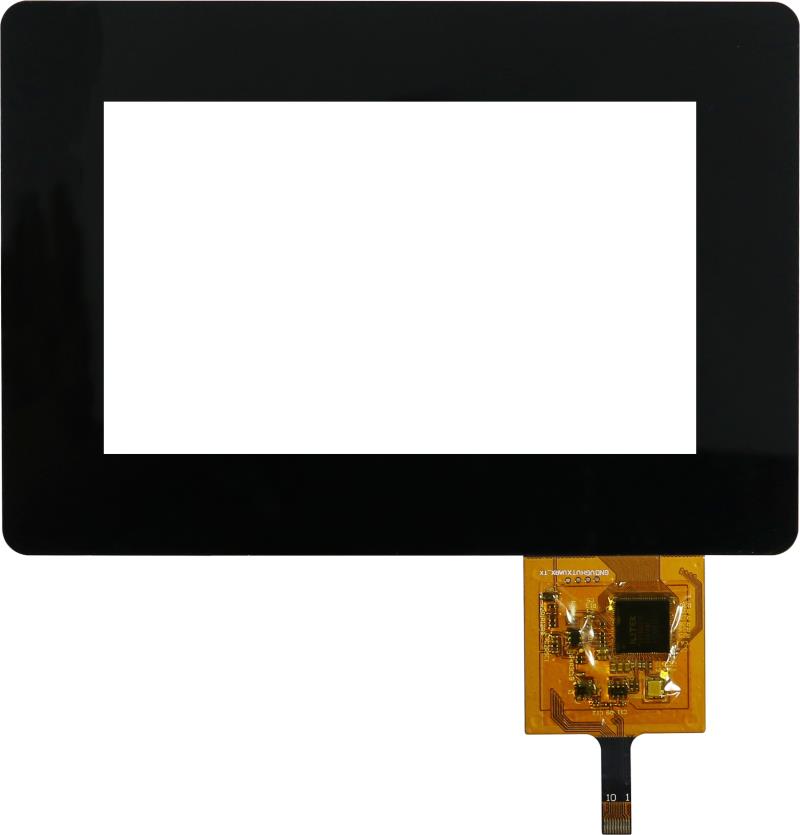

Capacitive (GG) Touch panel 5", O.D. 147.00x104.00mm, USB-I2C interface (ILI2511 IC), Glass-Glass structure, Black free board (suitable for B/Q families)

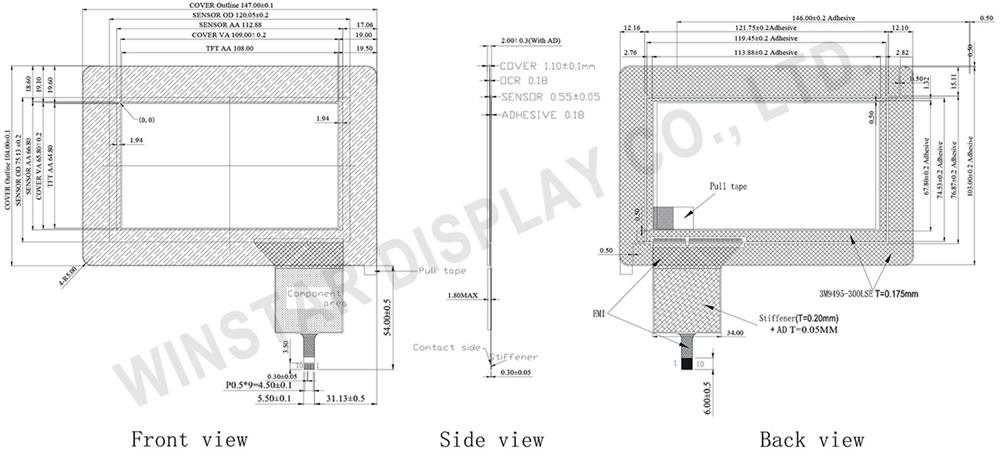

DRAWING
SPECIFICATIONS
General Specification
Feature
NO.
Item
Specifications
1
Type
Projected Capacitive
2
Input Mode
Finger
3
Connector
COF
Mechanical Description
NO.
Item
Specifications
Unit
1
Touch Panel Size
5.0(Diagonal)
inch
2
Structure
G+G
3
View Area
109.00(H)x65.80(V)
mm
4
Outline Dimension
147.00(H)x104.00(V)x1.830(D)
mm
Interface Pin Function
Pin No.
Symbol
I/O
Description
1
USB/GND
---
System ground
2
USB/VDD5V
---
Power supply
3
D+
I/O
Data +
4
D-
I/O
Data -
5
GND
---
System ground
6
SDA
I/O
I2C clock signal
7
SCL
I/O
I2C clock signal
8
RST
---
External reset signal, active low
9
INT
---
Interrupt signal, active low, asserted to request Host start a new transcation
10
VDD
---
Power supply
IC Specification
NO.
Item
Specifications
1
Driver IC
ILI2511
2
Detect Points
10 touch
3
Interface
I2C+USB
4
Power Supply
5.0V
SKU:
TST0005R0B4111XXXX04
Brand:
Winstar
Available:
Yes
Be the first to review this product
Accessory Kit
Touch-Panel Connector
-- Details Below in 'Related Products' --
MOLEX_52745-1097 [+€1.40]
MOLEX_52746-1033 [+€1.30]
Added Board
-- Details Below in 'Related Products' --
SW10005R000BA00N0100 [+€4.00]
Price Breaks
Quantity
1+
5+
10+
Price
€40.00
€33.30
€28.20
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€40.00 excl tax
Overview
Specifications
Download
Contact Us
DRAWING
SPECIFICATIONS
General Specification
Feature
NO.
Item
Specifications
1
Type
Projected Capacitive
2
Input Mode
Finger
3
Connector
COF
Mechanical Description
NO.
Item
Specifications
Unit
1
Touch Panel Size
5.0(Diagonal)
inch
2
Structure
G+G
3
View Area
109.00(H)x65.80(V)
mm
4
Outline Dimension
147.00(H)x104.00(V)x1.830(D)
mm
Interface Pin Function
Pin No.
Symbol
I/O
Description
1
USB/GND
---
System ground
2
USB/VDD5V
---
Power supply
3
D+
I/O
Data +
4
D-
I/O
Data -
5
GND
---
System ground
6
SDA
I/O
I2C clock signal
7
SCL
I/O
I2C clock signal
8
RST
---
External reset signal, active low
9
INT
---
Interrupt signal, active low, asserted to request Host start a new transcation
10
VDD
---
Power supply
IC Specification
NO.
Item
Specifications
1
Driver IC
ILI2511
2
Detect Points
10 touch
3
Interface
I2C+USB
4
Power Supply
5.0V
Products specifications
Brand
Winstar
Size
5"
Active Area (mm)
112.88x66.80
Display Interface
USB/I2C
Constructive Structure
GG + Frame
Display Connection
FPC for ZIF Connector
Pin Nr.
10
Pin Pitch
0.5mm
Touch Panel IC Controller
ILI2511
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
5"
Active Area (mm)
112.88x66.80
Display Interface
USB/I2C
Constructive Structure
GG + Frame
Display Connection
FPC for ZIF Connector
Pin Nr.
10
Pin Pitch
0.5mm
Touch Panel IC Controller
ILI2511
Preferred - Not Preferred
Preferred
Related products
MOLEX_52745-1097
ZIF Connector 10 pins, 0.5mm pitch, Top contact
From €0.89 excl tax
MOLEX_52746-1033
ZIF Connector 10 pins, 0.5mm pitch, Bottom contact
From €0.82 excl tax
SW10005R000BA00N0100
Converter Board for CTP connection from USB to ZIF 10pin
From €3.40 excl tax
WF50-800480FL#0PW0-FC
TFT 5" 800x480 LCD Panel, Interface LVDS, 500cd/m², Wide view angle (IPS), Super extended Temperature, No touch
From €18.50 excl tax
WF50-800480FD#0SPW0-FC
TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 1000cd/m², Wide view angle (IPS), Super extended Temperature, No touch
From €20.10 excl tax
WF50BTIAGDNN0#
TFT 5" 800x480 LCD Panel, Interface RGB, 450cd/m², No touch
From €21.50 excl tax
