RYRR20I_DE

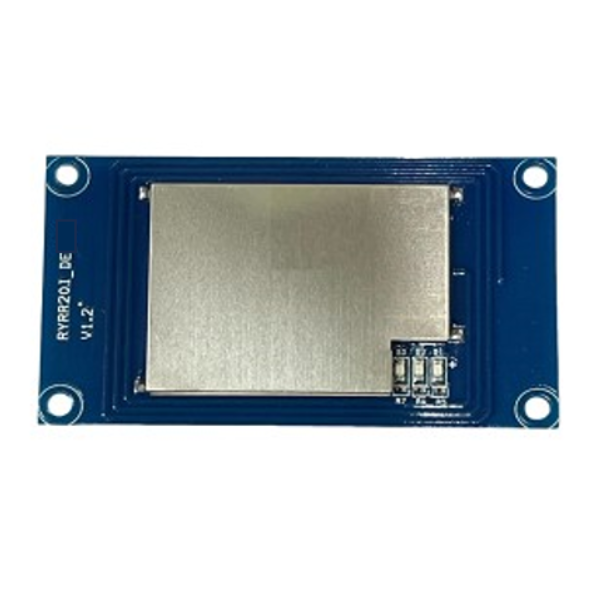

Multiprotocol Fully Integrated 13.56MHz +3.3V UART Interface RFID Antenna Module

Description

The RYRR20I_DE module is a 13.56-MHz RFID. Built-in programming options make the device suitable for a wide range of applications for proximity and vicinity identification systems.

The standalone mode of RYRR20I_DE can help you to read RFID cards of various protocols as soon as it is powered on.



Specification

Item Min. Typical Max. Unit Condition
Operation Voltage 4.7 5 6 V VDD
UART Interface Hi level 3.1 3.3 3.5 V
UART Interface Low level 0 0 0.3 V
Indicator,/RTS/NMI Interface level   3.3V
RF Output Power   20   dBm
RF transmit current   90   mA
Communication Range   4   cm Standard card
RESET_N low duration   100   ms
Baud Rate   115200   bps 8,N,1
RF Frequency Range 13.553 13.56 13.567 MHz
RF Frequency Range 13.553 13.56 13.567 MHz
Storage temperature -40 25 +85 ˚C
Operating Temperature -40 25 +85 ˚C
Humidity     90 %
Antenna         Internal PCB Antenna



SKU: RYRR20I_DE
Brand: Reyax
Available: No
Price Breaks
Quantity
1+
5+
Price
€17.20
€15.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€17.20 excl tax

Description

The RYRR20I_DE module is a 13.56-MHz RFID. Built-in programming options make the device suitable for a wide range of applications for proximity and vicinity identification systems.

The standalone mode of RYRR20I_DE can help you to read RFID cards of various protocols as soon as it is powered on.



Specification

Item Min. Typical Max. Unit Condition
Operation Voltage 4.7 5 6 V VDD
UART Interface Hi level 3.1 3.3 3.5 V
UART Interface Low level 0 0 0.3 V
Indicator,/RTS/NMI Interface level   3.3V
RF Output Power   20   dBm
RF transmit current   90   mA
Communication Range   4   cm Standard card
RESET_N low duration   100   ms
Baud Rate   115200   bps 8,N,1
RF Frequency Range 13.553 13.56 13.567 MHz
RF Frequency Range 13.553 13.56 13.567 MHz
Storage temperature -40 25 +85 ˚C
Operating Temperature -40 25 +85 ˚C
Humidity     90 %
Antenna         Internal PCB Antenna
