Product Focus | New High Brightness 5" & 7" IPS TFTs with Capacitive Touch

Product Focus | New High Brightness 5" & 7" IPS TFTs with Capacitive Touch

We introduce our new high-brightness 5-inch and 7-inch IPS TFT displays. These displays feature Winstar's latest capacitive touchscreens with the GT911 controller, ensuring a smooth and accurate user experience at an unbeatable price!

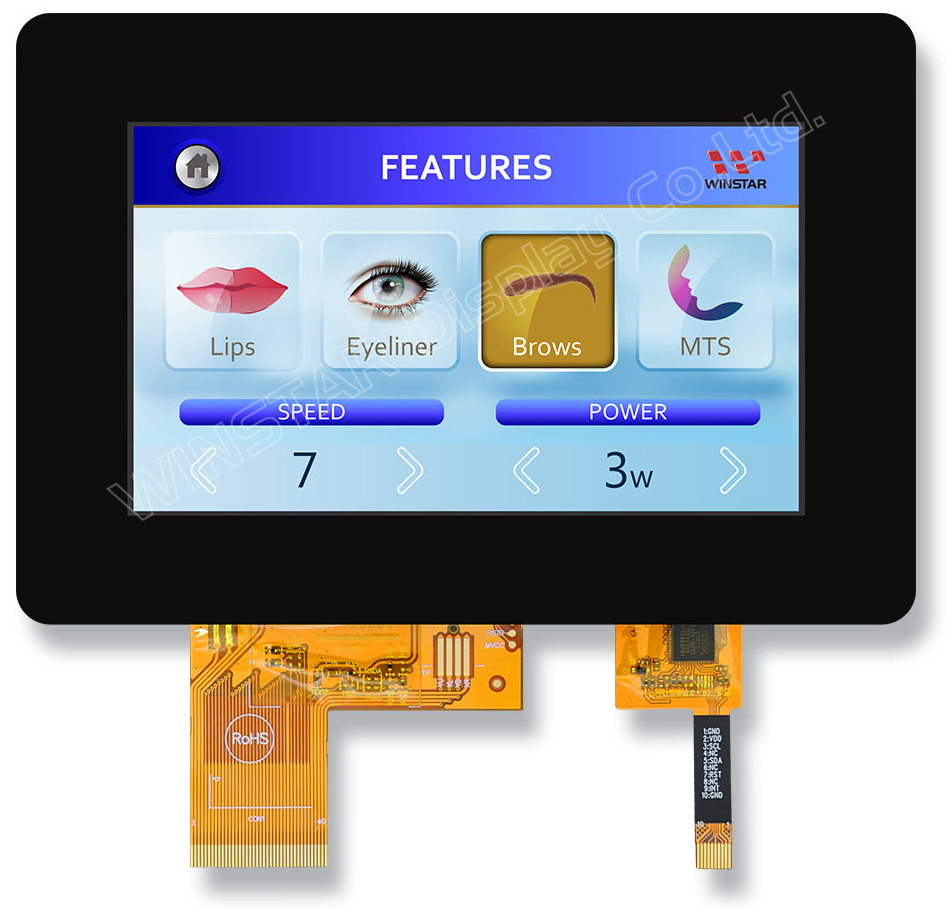

🔹 5" TFT with Capacitive TouchscreenWF50-800480FD#BSPW3-FC

Wide Viewing Angle + High Brightness + Wide Operating Temperature

â–ºSize: 5-inch

â–ºDot Matrix: 800 × 480 dots
â–ºModule Dim.: 147 × 104 × 4.88 mm
â–ºActive Area: 108 × 64.8 mm
â–ºViewing Angles: 80/80/80/80 (IPS)
â–ºDriver IC: ST7262
â–ºInterface: RGB
â–ºCapacitive Touch Panel (PCAP)
â–ºBrightness: 750 cd/m2
►Operating Temperature: -30~+80℃

The WF50-800480FD#BSPW3-FC is a high-performance 5-inch TFT LCD display module with a projected capacitive touch panel, a bright screen with 750 nits, and the ability to operate in a wide temperature range. Equipped with the ST7262 driver IC, it supports a 24-bit RGB interface and utilizes IPS panel technology for excellent 80-degree viewing angles in all directions. With a remarkable contrast ratio of 1000:1, this display ensures clear and vivid images, making it versatile for various applications such as industrial control displays, medical equipment, inspection tools, and smart home appliances. Whether used indoors or outdoors, its adaptability and exceptional performance make it an ideal choice.



Sub-Assemblies:

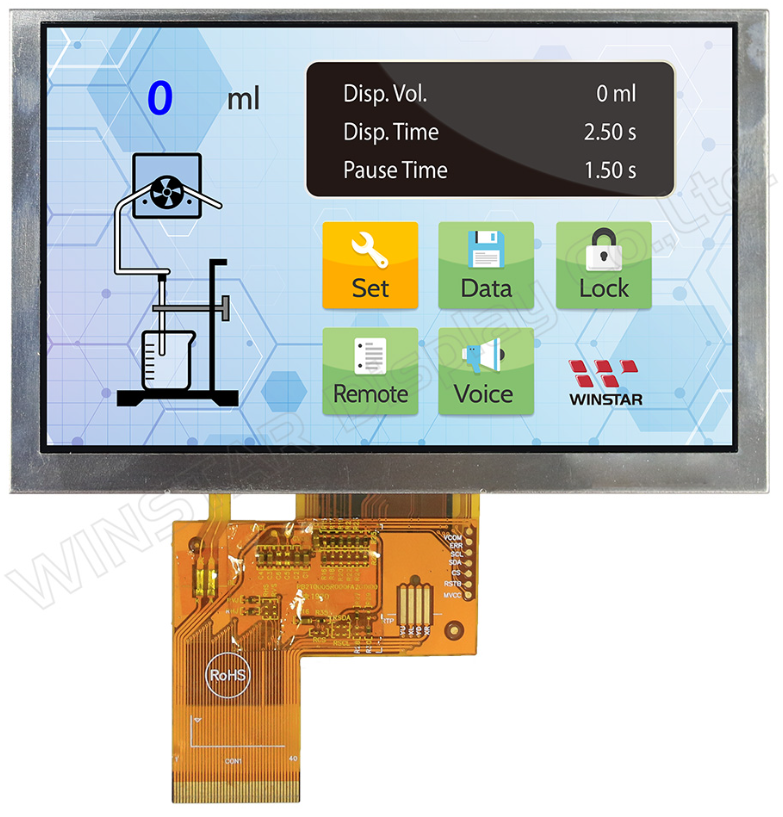

â–ºP/N: WF50-800480FD#0SPW0-FC
â–ºDot Matrix: 800 x 480 dots
â–ºViewing Angle: 80/80/80/80 (IPS)
â–ºBrightness: 1000 cd/m²
â–ºOperating Temperature: -30~+80°C
â–ºInterfacce: RGB

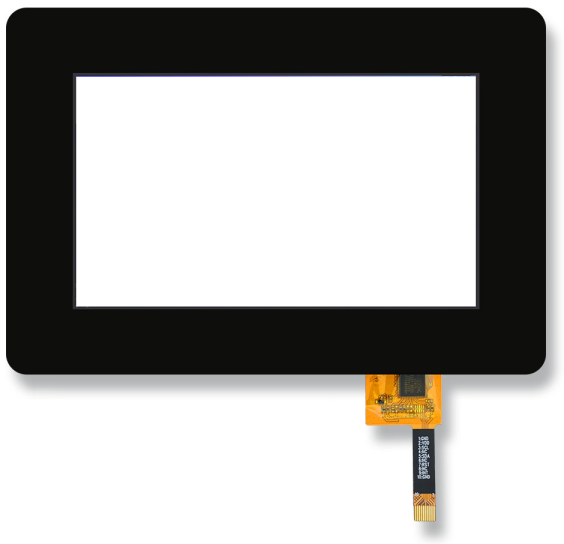

â–ºP/N: TST0005R0F4111XXXX02
â–ºStructure: G-G
â–ºType: Projected Capacitive
â–ºTouch Points: 5
â–ºDriver IC: GT911
â–ºInterface: I2C

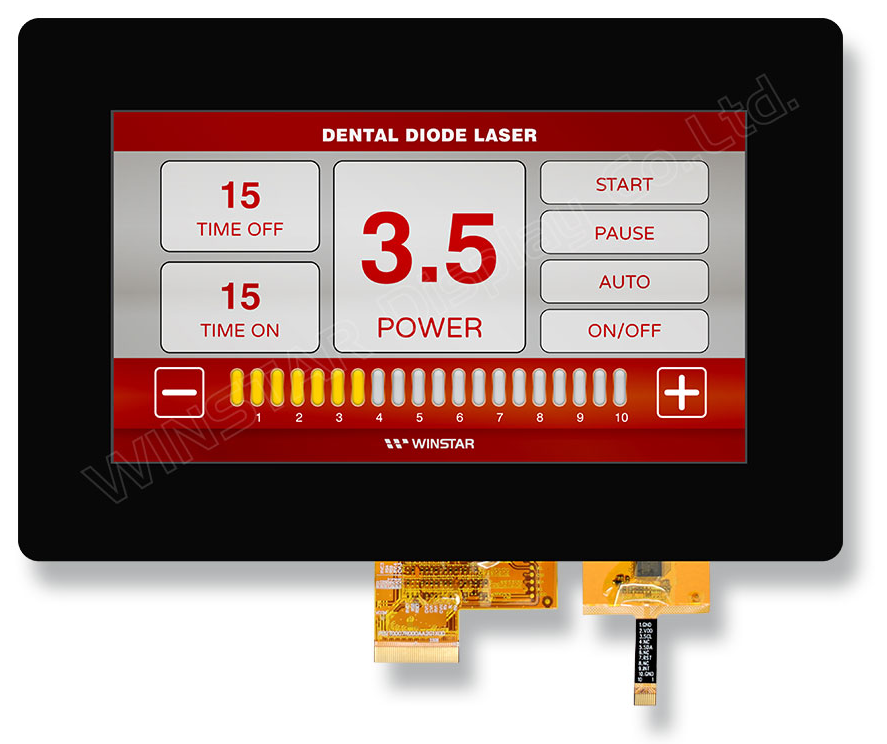

🔹7" TFT with Capacitive Touchscreen: WF70-1024600A8L#CSP3-FC

 High Resolution + Wide Viewing Angle + High Brightness

â–ºSize: 7 pollici

â–ºDot Matrix 1024 × 600 dots
â–ºModule Dim..: 202 × 135.5 × 8.4 mm
â–ºActive Area: 154.2144 × 85.92 mm
â–ºViewing Angles: 85/85/85/85 (IPS)
â–ºDriver IC: ST5021 + ST5651
â–ºInterface: LVDS
â–ºCapacitive Touch Panel (PCAP)
â–ºBrightness: 850 cd/m2
►Operating Temperature: -20~+70℃

The WF70-1024600A8L#CSP3-FC is a 7-inch IPS TFT LCD module with a projected capacitive touch panel, offering a resolution of 1024x600 pixels. Integrated with the ST5021 and ST5651 driver ICs and supporting LVDS interfaces, it ensures a smooth and immersive user experience. With an 800:1 contrast ratio and a brightness of 850 nits, the display provides clear and vibrant images. IPS technology widens viewing angles in all directions for an enhanced visual experience. Versatile and reliable, this module is suitable for various applications such as medical screening displays, automotive panels, and electric charging stations. Its robust design with high-resolution touch display makes it a dependable choice for applications requiring high-quality images in harsh environments.



Sub-Assemblies:

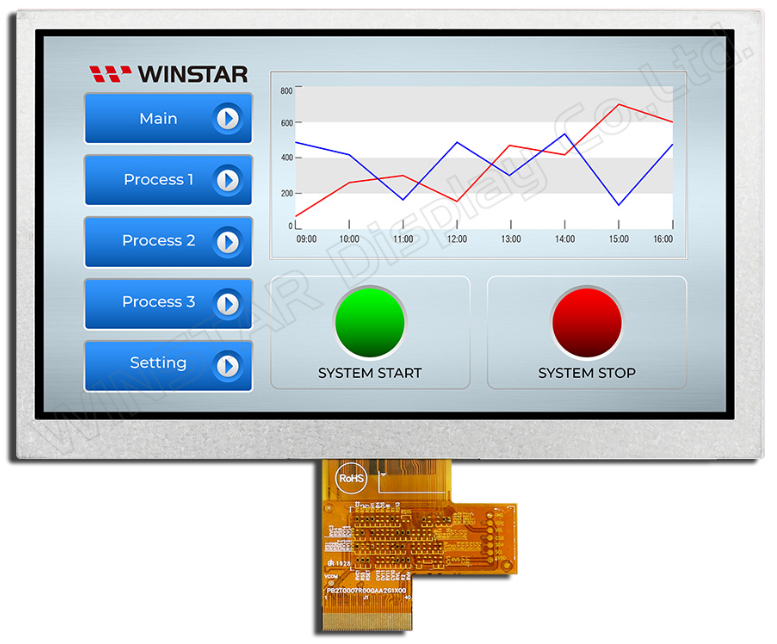

â–ºP/N: WF70-1024600A8L#0SP0-FC
â–ºDot Matrix: 1024 × 600 dots
â–ºViewing Angles: 85/85/85/85 (IPS)
â–ºBrightness: 1100 cd/m²
â–ºOperating Temperature: -20~+70°C
â–ºInterface: LVDS

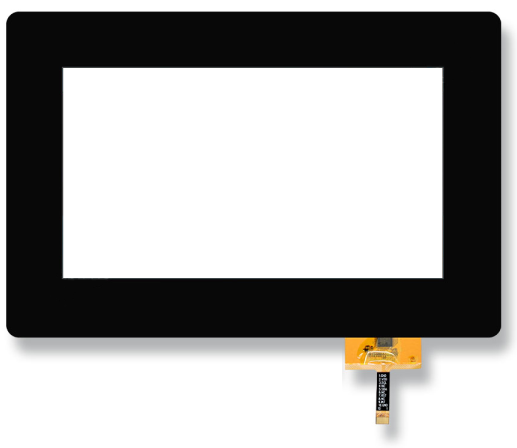

â–ºP/N: TST0007R0A4111XXXX07
â–ºStructure: G-G
â–ºType: Projected Capacitive
â–ºTouch Points: 5
â–ºDriver IC: GT911
â–ºInterface: I2C



For more details please contact us @ [email protected]
