Product Focus | RS485 Modbus Winstar Smart Displays

Product Focus | RS485 Modbus Winstar Smart Displays

Today, we introduce Winstar's SMART RS485 Modbus displays. These displays provide a unique design experience, allowing for cost reduction in development and speeding up the time-to-market for any new project.

Among the numerous advantages of SMART RS485 Modbus, we find:

  • No programming skills required - It's possible to design the entire graphical interface without writing a line of code thanks to Winstar's GUI Builder! (►Link to an introduction to the GUI Builder).
  • Extensive library of graphic objects and ready-to-use widgets - Use simple scripts to activate/deactivate and control the values of various graphic objects.
  • WYSIWYG - What You See Is What You Get! The ability to simulate the graphical project directly on your PC.
  • Easy integration of an HMI (Human Machine Interface) into any Modbus architecture application, thanks to the powerful onboard STM32 MCUs.
  • High-quality TFT LCD with extended operating temperature range and wide viewing angle (IPS), and integrated capacitive touch panel.



TRY IT BEFORE YOU BUY IT!

Contact us to receive the new GUI Builder v0.5.3 for free and test its functionalities.

Alternatively, for programming Winstar Smart display modules, you can also use STMicroelectronics (ST) development tools. These displays are equipped with powerful STM32 microcontrollers compatible with TouchGFX e STM32CubeIDE!



RS485 Smart Display Models

Below is the list of available SMART RS485 Modbus displays in sizes ranging from 3.5" to 10.1":

WL0F00035000XGDAASA00-FC

TFT 3.5'' 320x240, RS485 ModBus interface, 400cd/m², Wide View Angle (IPS), Super wide temperature, Capacitive touch panel(GG)

WL0F00043000WGDAASA00-FC

TFT 4.3'' 480x272, RS485 Modbus interface, 400cd/m², Wide View Angle (IPS), Super wide temperature, Capacitive touch panel (GG)

WL0F00050000FGDABSA00-FC

TFT 5'' 800x480, RS485 Modbus interface, 400cd/m², Wide View Angle (IPS), Super wide temperature, Capacitive touch panel (GG)

WL0F0007000A8GDAASA00-FC

TFT 7'' 1024x600RS485 Modbus interface, 500cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

WL0F00101000JGDAASA00-FC

TFT 10.1'' 1024x600, RS485 Modubs interface, 400cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

In the "RELATED PRODUCTS" section (located at the bottom of the Overview), you can view the corresponding Evaluation Kit for each.

In addition to RS485, Winstar Smart Displays are also available with a CANBus communication interface. Find the complete Smart family in the dedicated sections of our web catalog at the following links:



Intelligent Chip-on-Film (COF)

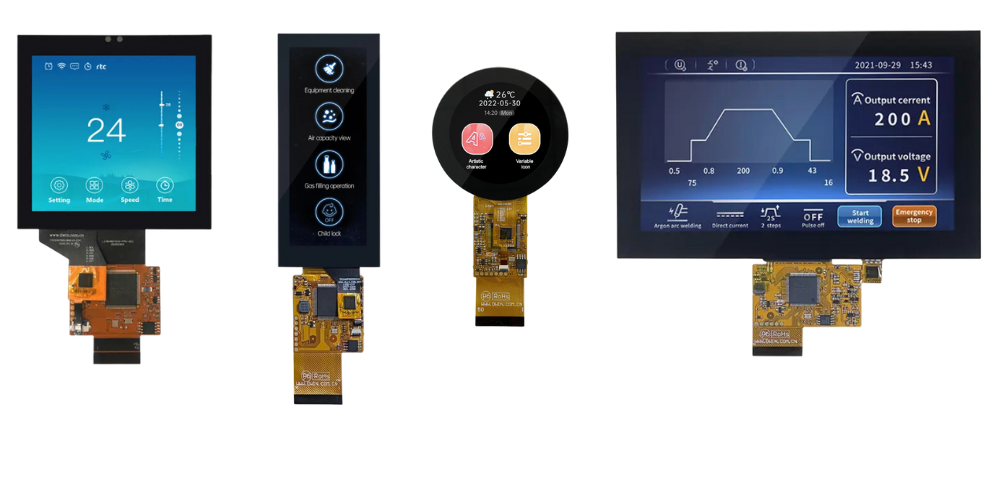

Don't miss out on our Chip-on-Film (COF) Intelligent Displays, where the controller and circuit fixed on the FPC cable combine development simplicity with an ultra-compact design, providing excellent performance at an extremely competitive cost:

Discover more at this link and in the dedicated section on our online catalog.



For further information, feel free to contact us
