New COG-COF Graphical OLED Displays with Passive Matrix

New COG-COF Graphical OLED Displays with Passive Matrix

Passive matrix graphic OLED displays can be chip on board, chip on glass or chip on foil.

Their main features include unlimited viewing angle (up to 175 degrees), no need for backlight, high brightness + high contrast (up to 2000:1), wide operating temperature (-40℃~80℃), low power consumption energetic.

These displays are perfect for a variety of devices including wearables, e-cigarettes, POS systems, medical and household applications, industrial instruments, automations and audio/video display systems.

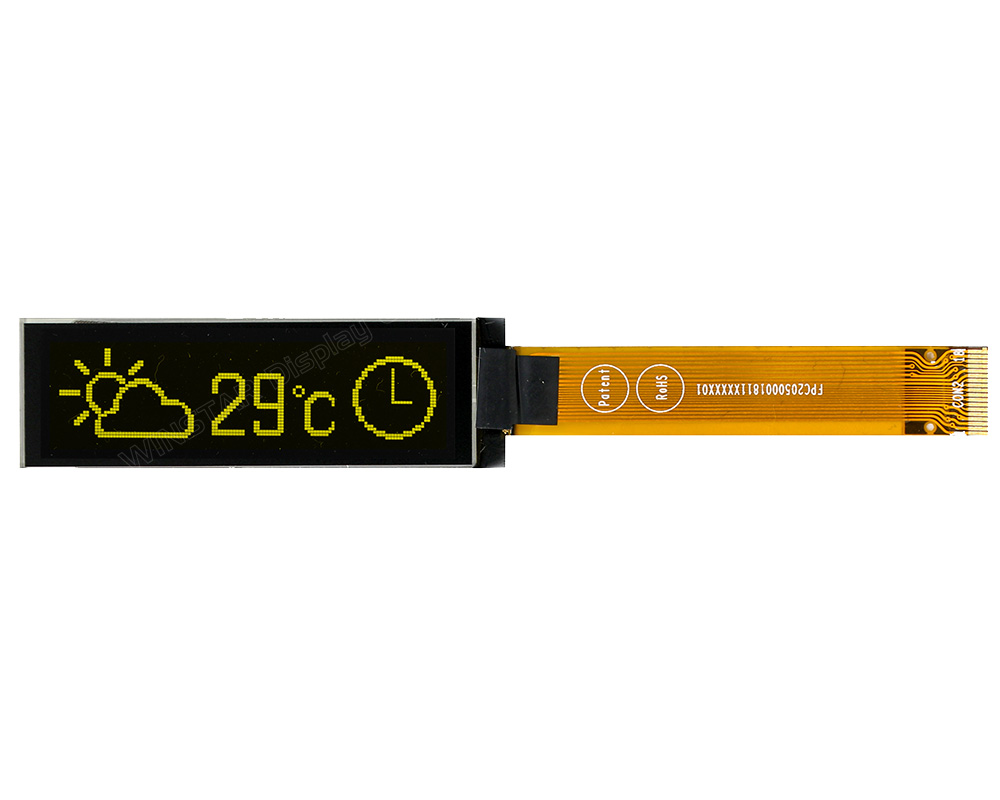

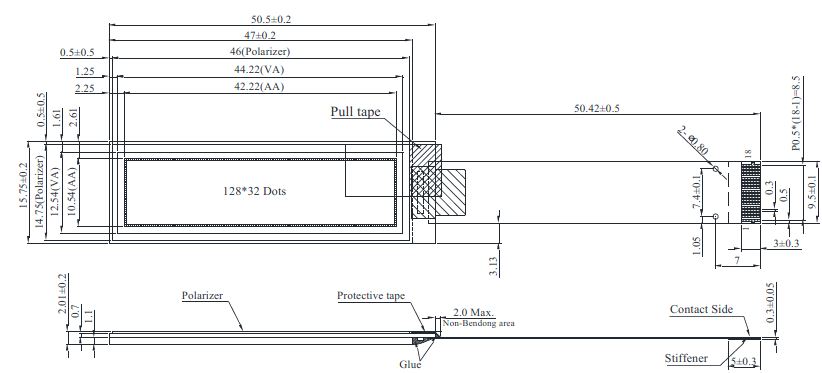

PMOLED 1.71''COG 128x32, Graphic, Yellow Color, 3V, SPI Interface, I2C, SSD1307ZD IC, Anti-reflection

►Type: graph
►Structure: COG
►Size: 1.71 inch
►Resolution: 128 x 32 dot matrix
►Onboard controller: SSD1307ZD
►Power supply: 3V
►1/32 duty
►Interface: SPI, I2C
►Display colour: yellow



  P/N: WEO12832L#G00-FC

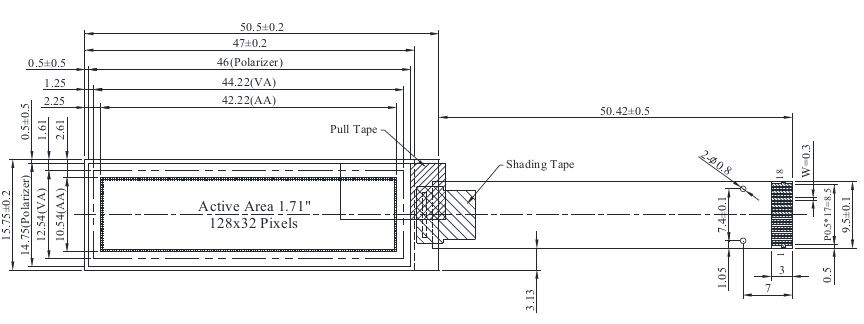

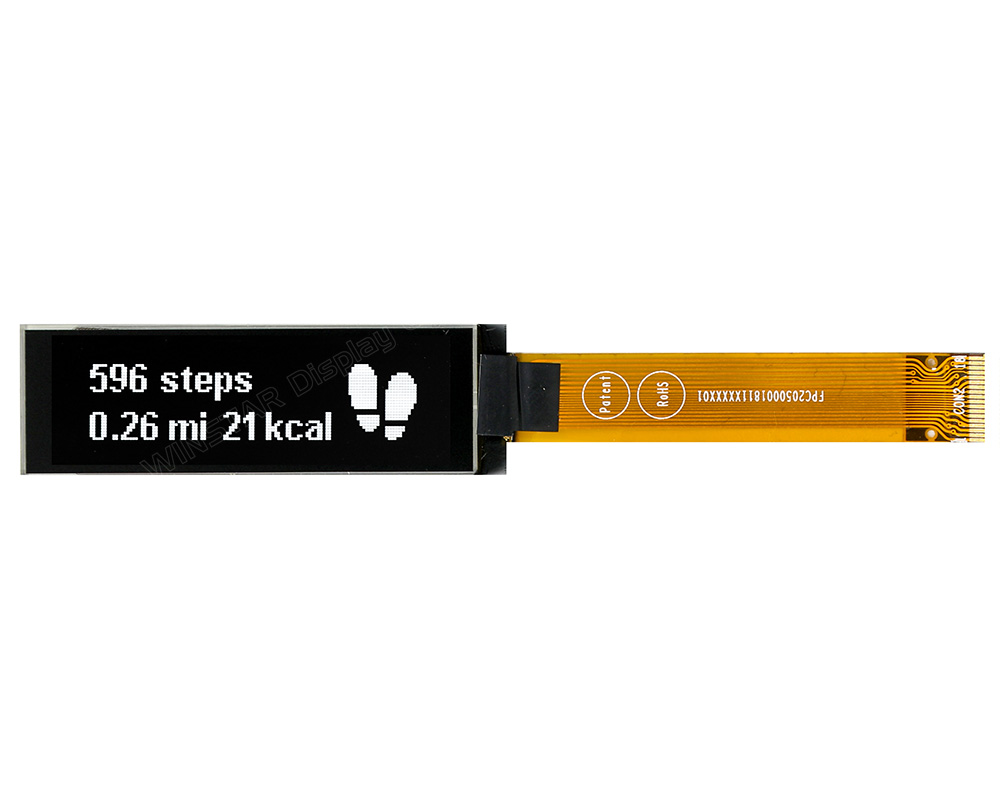

PMOLED 1.71''COG 128x32, Graphic, White Color, 3V, SPI Interface, I2C, CH1115 IC, Anti-reflection

►Type: graph
►Structure: COG
►Size: 1.71 inch
►Resolution: 128 x 32 dot matrix
►Controller on board: CH1115
►Power supply: 3V
►1/32 duty
►Interface: SPI, I2C
►Display colour: White



  P/N: WEO12832W#PA3N00000-FC





For more information please contact us @ [email protected]
