First Components Academy | Hover Touch Technology: the New TFTs Display's Boundary

First Components Academy | Hover Touch Technology: the New TFTs Display's Boundary

Hover touch is a whole new technology innovation combining mutual and self-capacitance to reach the floating touch. When the user's fingers are far from the panel, signals are too weak to be detected, and the mutual capacitance signal has not been....Read more

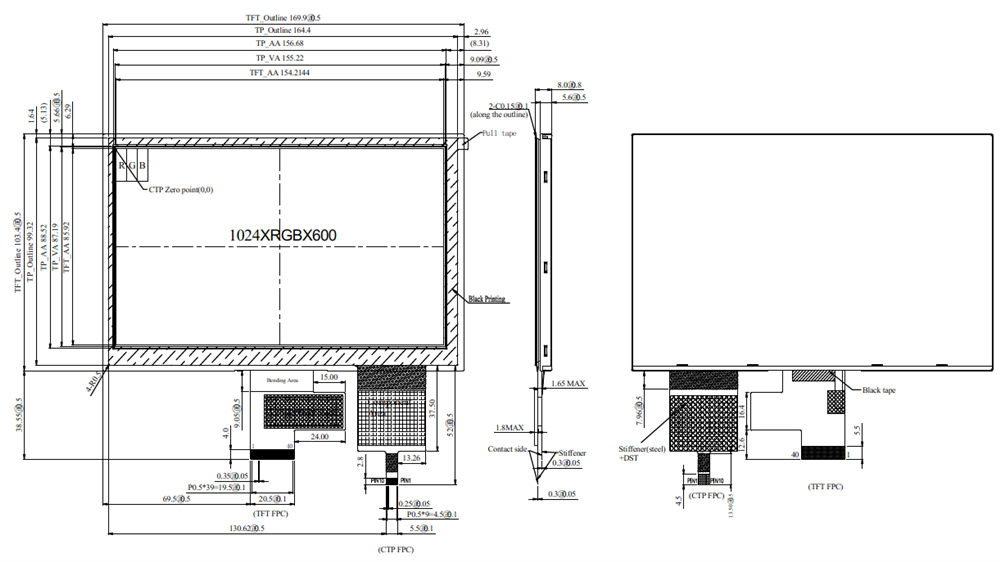

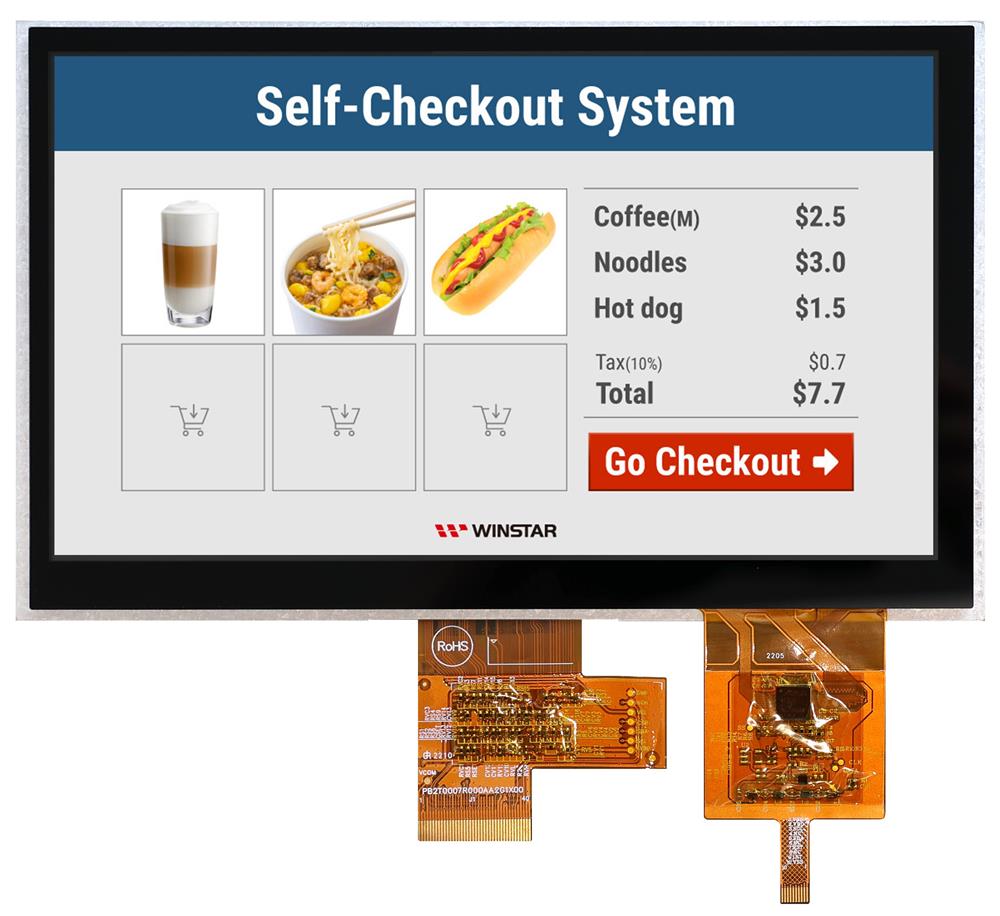

TFT 7” 1024x600 LVDS IPS with Capacitive Hover Touch Panel

7-inch IPS TFT LCD module, with Capacitive Hover Touch Panel, resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, aspect ratio 16:9,  normally black, transmissive LCD type.

Size : 7''
Resolution : 1024x600 dots
View Direction : 85/85/85/85 (IPS)
Interface : LVDS
TFT Driver IC : ST5021 + ST5651 or equivalent
Brightness (cd/m²) : 450
Touch Screen : Capacitive Hover Touch (PCAP)
Detect Point : 5 Fingers



  WF70-1024600A8L#0P52-FC

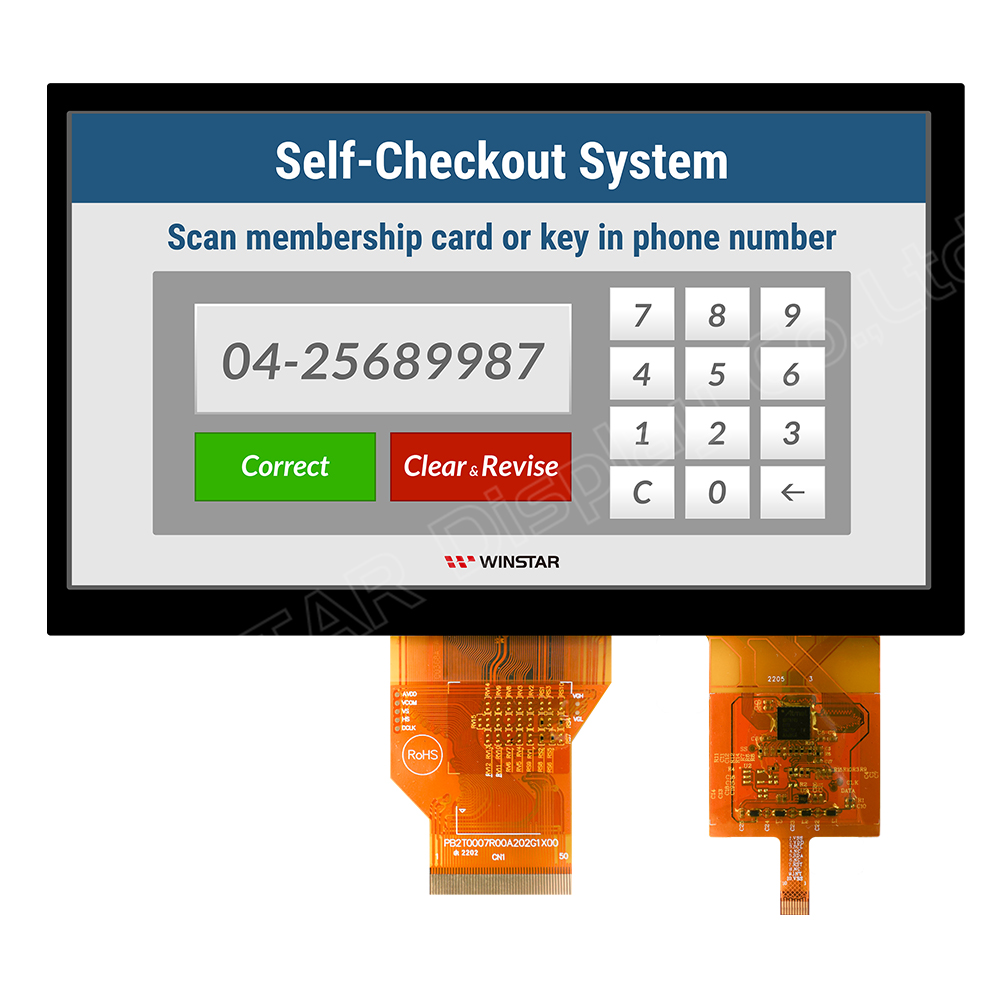

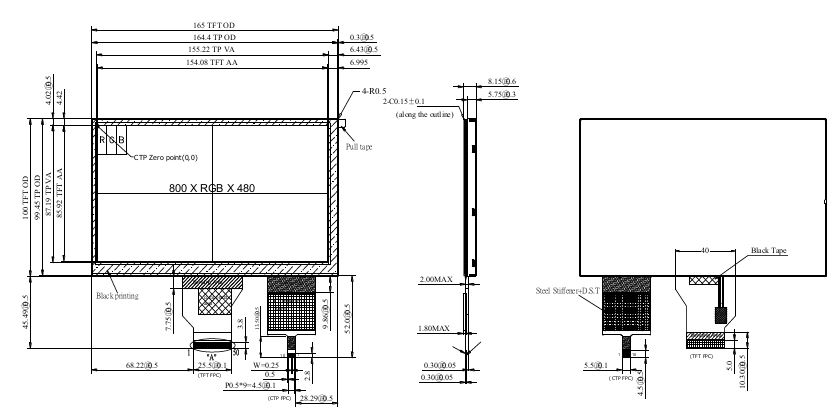

TFT 7” 800x480 High Brightness with Capacitive Hover Touch Panel

7-inch RGB TFT LCD module high brightness (700 nits); made of resolution 800x480 pixels. This model is built in with ST-5623D Source IC and ST5091D Gate IC. it supports 24-bit RGB interface, contrast ratio of 800:1, aspect ratio of 16:9, view direction of 12 o’clock, gray scale inversion direction of 6 o’clock, and glare surface glass. This Capacitive Touch Panel adopts Hover Touch Technology, supports I2C interface and multi-touch contact and one-touch Hover function. The power supply voltage (VDD) is from 3.0V to 3.6V, typical of value 3.3V. It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

Size : 7''
Resolution : 800x480 dots
View Direction: 12H
Interface : RGB
Driver IC : ST5623D + ST5091D
Brightness (cd/m²) : 700
Touch Screen : Capacitive Hover Touch (PCAP)
Detect Point : 5 Fingers



 WF70-800480A2D#0S52-FC





For more information contact us @ [email protected]
